Product Details:
Payment & Shipping Terms:
|
| Name: | Vibrating Sieve Machine | Material: | Stainless Steel Or Carbon Steel |
|---|---|---|---|
| Type: | Rotary Vane Shaker | Object: | Food Processing |
| Usage: | Mine Shaker, Experiments Shaker, Lightweight Fine Shaker | Supporting Device: | Springs |
| Screen Size: | 2~200mesh | Running Track: | Circular Vibrating Screen |
| Layer(S): | 1~5 Layers | HS Code: | 8474100000 |
| High Light: | 270mesh industrial vibrating sieve,salt ss industrial vibrating sieve |
||

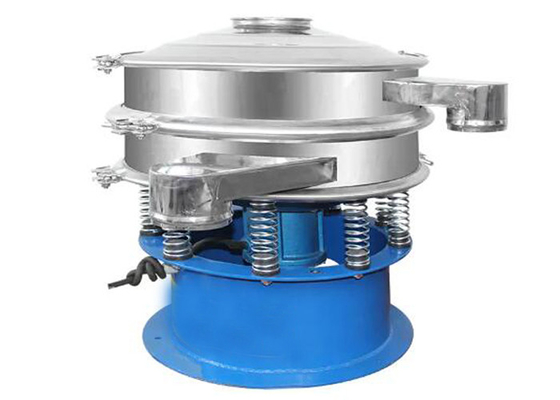

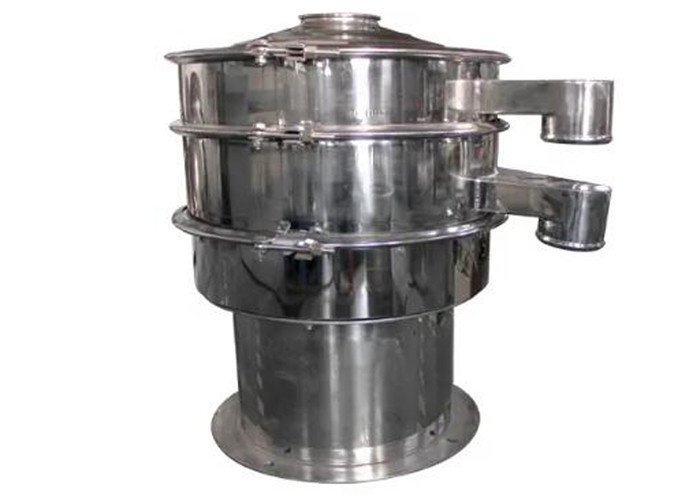

Stainless Steel Round Vibrating Screen Filter Sieve Machine For Rice Flour Salt
Vibrating Sieve Machine Description
This machine is supplied for the sorting of the granule size of dry powder materials in the trades of Medicine, chemicals, foodstuff, etc. Features This machine is composed of the vertical vibration motor, a sieve bottom, a mesh frame, a sieve room, a rubber vibrating bowl, and all fastening pieces, etc, It can be operated for the sorting purpose either in single sieve or multi-sieves with a compact structure, easy operating, smooth running, low noise, large target materials-treating, goog fineness, and wide applicability, etc.
Vibrating Sieve Machine Features
1. High efficiency, refined design, duration, and any powders and mucilage are suitable for use.
2. Easily replacing the screen, simple operation, and convenience washing.
3. Never jam the hole meshwork or any powder flying, the filter size of the powder is between 500 mesh and 0.028 mm.
4. Discharge the impurity and coarse materials automobile and operate continuously.
5. Unique screen flame design, long duration of the screen, only 3-5 to replace the screen.
6. Small volume, move easily.
7. The highest layers of the screen are about 5 layers. But 3 layers are suggested.
Vibrating Sieve Machine Specification
| Model |
Effective diameter for screen surface(mm)/ Effective diameter (mm) |
Effective sieving area(m²) |
Sieving mesh specification |
Layer (s) |
Power(kW) | |
| Vibration motor |
Common motor |
|||||
| HT49-600 | φ560 | 0.23 | 2~500mesh | 1~4 | 0.25 | 0.75 |
| HT49-800 | φ760 | 0.42 | 0.55 | 1.1 | ||
| HT49-1000 | φ930 | 0.64 | 1.1 | 1.5 | ||
| HT49-1200 | φ1130 | 0.95 | 1.1 | 1.5 | ||
| HT49-1500 | φ1430 | 1.61 | 2~270mesh | 1.5 | 2.2 | |
| HT49-1800 | φ1730 | 2.35 | 1~3 | 3 | 3 | |
| HT49-2000 | φ1920 | 2.9 | 3 | 3 | ||
Vibrating Sieve Machine Application:
Chemical industry: colophony, dope, industry leechdom, cosmetic, paint
2. Grinding Materials and china industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust
3. Food industry: sugar, amylum, rice powder, milk powder
4. Paper making industry
5. Metallurgy, Mining industry
