Product Details:
Payment & Shipping Terms:
|
| Name: | Straight Vibrating Sieving Machine | Running Track: | Circular Vibrating Screen |
|---|---|---|---|
| Mesh Size: | 2 - 200 Mesh | Vibrating Frequency: | 1460r/Min |
| Motor Type: | Vibration Motor | Motor: | 220V/380V/440V Or Optional |
| Usage: | Food/Powder/Granulators Processing | HS Code: | 8474100000 |
| High Light: | high efficiency powder vibrating screen,sus304 powder vibrating screen |
||

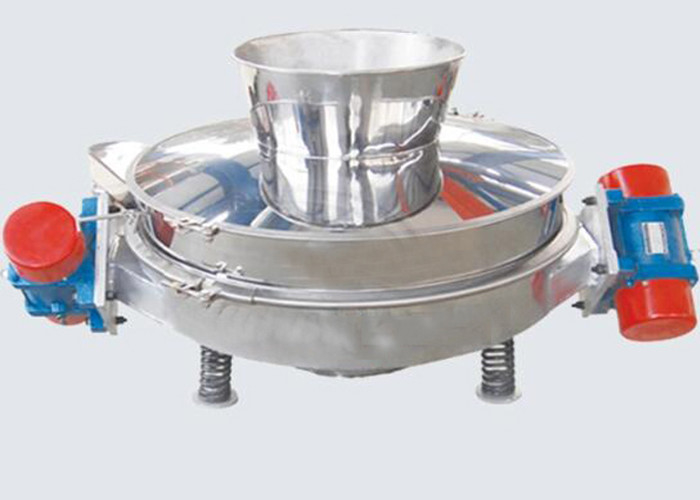

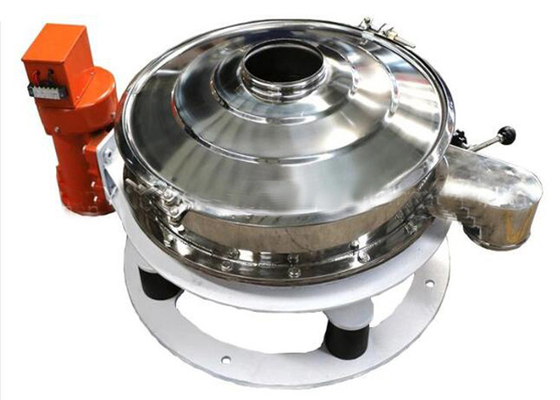

High-Efficiency SUS304 Flour Vibrating Screen Straight Row Vibrating Sieve
Vibrating Screening Machine
The discharge vibrating sieve is a new type of screening machine with two kinds of single vibration source and double vibration source, mainly used for removing impurities, loose in the process of powder production line.
On one side of the vibration, the body installed one set of horizontal vibrating motors, or on both sides installed with vibrating motors. Through the horizontal vibration motor up and down both ends unbalanced eccentric hammer produces exciting force, due to the vibration motor rotation, the screen surface part do three-dimensional vibration in a horizontal, vertical, inclined direction, making large under size material rapidly through the mesh, then through the discharging mouth vertically into the next process. Adjusting the angle of the eccentric block on both ends of the vibrating motor, can achieve different exciting forces, reach different effects, and meet the best screening effect of various proportion materials.
Vibrating Screening Machine Characteristics
1. All stainless steel design, beautiful and durable appearance.
2. It is small, does not take up space, and is easy to move.
3. Low energy consumption and high efficiency.
4. It is convenient to disassemble and assemble, easy to clean inside and outside, has no sanitary dead space, and complies with food-grade GMP specifications.
5. Automatic operation, continuous production for 24 hours.
6. Ultra-low mute design.
7. Tight sealing, no liquid leakage, no dust flying.
8. It can be used in a single layer or multiple layers and can be filtered in multiple levels at one time.
Vibrating Sieve Machine Technical parameters
|
Model
|
Diameter(mm)
|
Power(KW)
|
Layer(s)
|
|
HT-400
|
360mm
|
0.18-0.25KW
|
1-5
|
|
HT-600
|
560mm
|
0.25-0.55KW
|
1-5
|
|
HT-800
|
760mm
|
0.55-0.75KW
|
1-5
|
|
HT-1000
|
930mm
|
0.75-1.5KW
|
1-5
|
|
HT-1200
|
1130mm
|
1.1-1.75KW
|
1-5
|
|
HT-1500
|
1430mm
|
1.5-2.2KW
|
1-5
|
|
HT-1800
|
1730mm
|
2.2-3.0KW
|
1-5
|
|
HT-2000
|
1916mm
|
2.5-3.0KW
|
1-5
|
Vibrating Sieve Machine Applicable industries
1. Chemical industry: resin powder, pigment, washing powder, micro powder, paint, soda ash, lemon powder, rubber, plastic, etc.
2. Abrasives, ceramic industry: alumina, quartz sand, mud, sprayed soil particles, etc.
3. Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, fruit juice, soy sauce, vinegar, etc.
4. Paper industry: coating paint, clay mud, black and white liquid, waste liquid, paper-making liquid, wastewater recycling, etc.
5. Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, electrode powder, etc.
6. Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, Western medicine powder, Western medicine liquid, Chinese and Western medicine granules, etc.
7. Environmental protection: garbage, human and animal excrement, and urine, waste oil, food wastewater, wastewater processing, etc.
