Product Details:
Payment & Shipping Terms:
|
| Name: | Straight Vibrating Machine | Running Track: | Circular Vibrating Screen |
|---|---|---|---|
| Motor Type: | Vibration Motor | Application: | Powder/Granule |
| Material: | Stainless Steel | Diameter: | From 600mm To 1500mm |
| HS Code: | 8474100000 | ||
| High Light: | sus316l vibrating sifter machine,diameter 600mm vibrating sifter machine,diameter 600mm vibrating sieve machine |
||

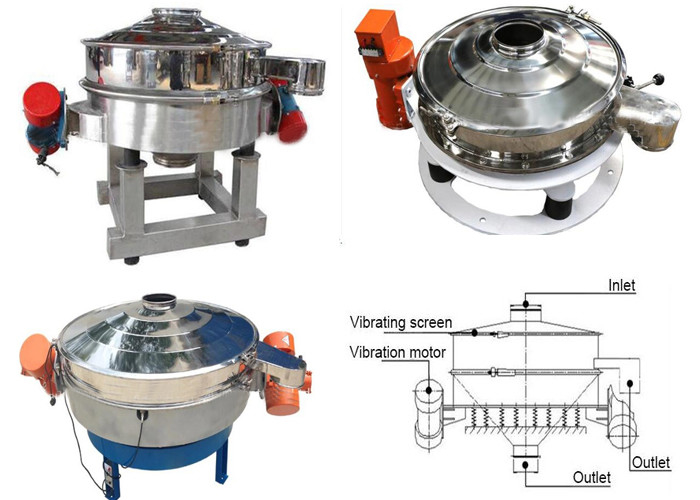

1-5 layers SUS316L Food Straight Line Sifting Machine
Vibrating Screening Machine
The straight row sieve uses a high-frequency vibration motor as the excitation source. After the material enters the system, it is subjected to the force of the vibration source to perform a three-dimensional rotational movement on the screen surface. warehouse. Impurities and foreign matter are separated and discharged to the slag discharge port, which acts as a "safety officer" on the production line.
The straight-row vibrating screen is divided into single vibration source and double vibration source. It is mainly used to remove impurities and screen loose powder in the process flow of the powder production line. The vibration source is divided into single motor and double motor structures. There are various adjustment forms for the material running track. The applicability of the equipment is significantly increased, and the direct discharge of materials has a greater processing capacity.
Vibrating Screening Machine Characteristics
1. All stainless steel design, beautiful and durable appearance.
2. It is small, does not take up space, and is easy to move.
3. Low energy consumption and high efficiency.
4. It is convenient to disassemble and assemble, easy to clean inside and outside, has no sanitary dead space, and complies with food-grade GMP specifications.
5. Automatic operation, continuous production for 24 hours.
6. Ultra-low mute design.
7. Tight sealing, no liquid leakage, no dust flying.
8. It can be used in a single layer or multiple layers and can be filtered in multiple levels at one time.
Vibrating Sieve Machine Technical parameters
|
Model
|
Diameter(mm)
|
Power(KW)
|
Layer(s)
|
|
HT-400
|
360mm
|
0.18-0.25KW
|
1-5
|
|
HT-600
|
560mm
|
0.25-0.55KW
|
1-5
|
|
HT-800
|
760mm
|
0.55-0.75KW
|
1-5
|
|
HT-1000
|
930mm
|
0.75-1.5KW
|
1-5
|
|
HT-1200
|
1130mm
|
1.1-1.75KW
|
1-5
|
|
HT-1500
|
1430mm
|
1.5-2.2KW
|
1-5
|
|
HT-1800
|
1730mm
|
2.2-3.0KW
|
1-5
|
|
HT-2000
|
1916mm
|
2.5-3.0KW
|
1-5
|
Vibrating Sieve Machine Applicable industries
1. Chemical industry: resin powder, pigment, washing powder, micro powder, paint, soda ash, lemon powder, rubber, plastic, etc.
2. Abrasives, ceramic industry: alumina, quartz sand, mud, sprayed soil particles, etc.
3. Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, fruit juice, soy sauce, vinegar, etc.
4. Paper industry: coating paint, clay mud, black and white liquid, waste liquid, paper-making liquid, wastewater recycling, etc.
5. Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, electrode powder, etc.
6. Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, Western medicine powder, Western medicine liquid, Chinese and Western medicine granules, etc.
7. Environmental protection: garbage, human and animal excrement, and urine, waste oil, food wastewater, wastewater processing, etc.
