Product Details:
Payment & Shipping Terms:
|
| Name: | Vibrating Sieve Machine | Type: | Rotary Vane Shaker |
|---|---|---|---|
| Supporting Device: | Springs | Screen Size: | 2~200mesh |
| Running Track: | Circular Vibrating Screen | Usage: | Mine Shaker, Experiments Shaker, Lightweight Fine Shaker |
| Object: | Food Processing | Layer(S): | 1~5 Layers |
| Diameter: | 600, 800, 1000, 1200, 1500, 1800, 2000mm And So On | Output Size: | 5-20mm(Depends) |
| High Light: | stainless steel 316l vibrating screen machine,charcoal powder vibrating screen machine,stainless steel 316l vibrating sieve |
||

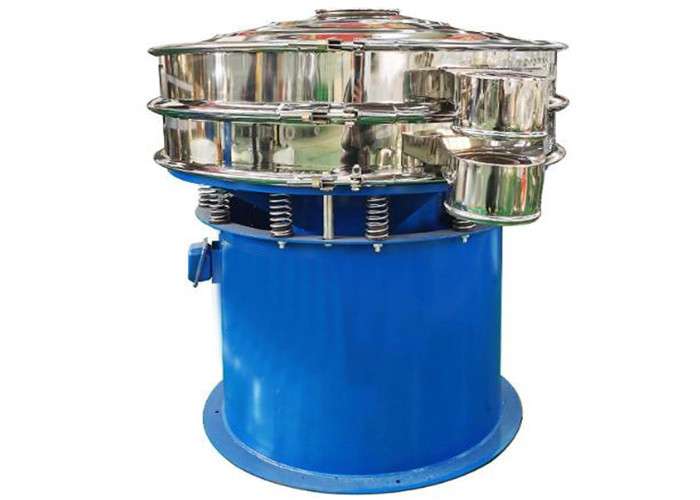

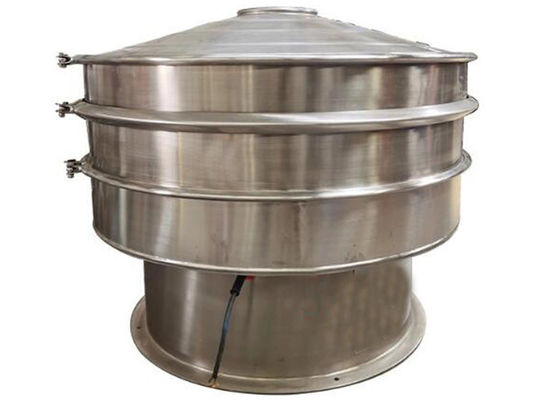

Stainless Steel 316L Vibrating Screen for Charcoal Powder or Granules
Vibrating Sieve Machine Description
The vibration sieve uses a vertical vibration motor drive, when the vertical vibration motor of the centrifugal force generated by high speed rotation shaft and eccentric block get vibration force, vibration generated by the eccentric block urged the screen being thrown up by leaps and bounds to make linear or vortex movement, so as to achieve the purpose of the screening and grading the supplies, commonly used in pipeline automation work, Material screening mesh number up to 500 mesh, the screen can be layered.
The vibrating Screen is composed of ultrasonic power,transducer and sympathetic vibration ring. Transducers change the high frequency current which supplied by the ultrasonic power into sinusoidal vertical wave of oscillation (ultrasonic wave), these ultrasonic wave reached the sympathetic vibration ring generate resonance, then evenly transferred to the screen surface.Sieve materials while doing the low-frequency vibration, superimposed on the ultrasonic vibration, it can not only avoid the mesh plug, but also can improve product capacity and quality greatly.
Vibrating Sieve Machine Features
1. High efficiency, refined design, duration, and any powders and mucilage are suitable for use.
2. Easily replacing the screen, simple operation, and convenience washing.
3. Never jam the hole meshwork or any powder flying, the filter size of the powder is between 500 mesh and 0.028 mm.
4. Discharge the impurity and coarse materials automobile and operate continuously.
5. Unique screen flame design, long duration of the screen, only 3-5 to replace the screen.
6. Small volume, move easily.
7. The highest layers of the screen are about 5 layers. But 3 layers are suggested.
Vibrating Sieve Machine Specification
| Model |
Effective diameter for screen surface(mm)/ Effective diameter (mm) |
Effective sieving area(m²) |
Sieving mesh specification |
Layer (s) |
Power(kW) | |
| Vibration motor |
Common motor |
|||||
| HT49-600 | φ560 | 0.23 | 2~500mesh | 1~4 | 0.25 | 0.75 |
| HT49-800 | φ760 | 0.42 | 0.55 | 1.1 | ||
| HT49-1000 | φ930 | 0.64 | 1.1 | 1.5 | ||
| HT49-1200 | φ1130 | 0.95 | 1.1 | 1.5 | ||
| HT49-1500 | φ1430 | 1.61 | 2~270mesh | 1.5 | 2.2 | |
| HT49-1800 | φ1730 | 2.35 | 1~3 | 3 | 3 | |
| HT49-2000 | φ1920 | 2.9 | 3 | 3 | ||
Vibrating Sieve Machine Application:
Chemical industry: colophony, dope, industry leechdom, cosmetic, paint
2. Grinding Materials and china industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust
3. Food industry: sugar, amylum, rice powder, milk powder
4. Paper making industry
5. Metallurgy, Mining industry
