Product Details:
Payment & Shipping Terms:
|
| Name: | Vibrating Sieve Machine | Type: | Rotary Vane Shaker |
|---|---|---|---|
| Output Size: | 5-20mm(Depends) | Diameter: | 600, 800, 1000, 1200, 1500, 1800, 2000mm And So On |
| Screen Size: | 2~200mesh | Usage: | Mine Shaker, Experiments Shaker, Lightweight Fine Shaker |
| Running Track: | Circular Vibrating Screen | Object: | Food Processing |
| High Light: | 2 layers vibrating sieve,double deck vibrating sieve,2 layers vibrating sieve machine |
||

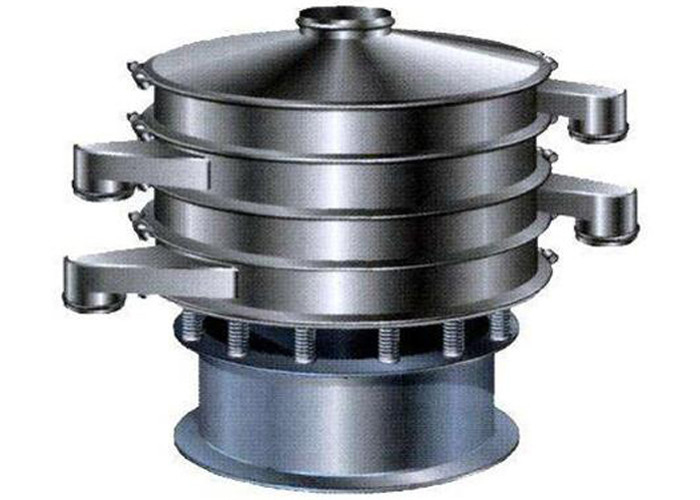

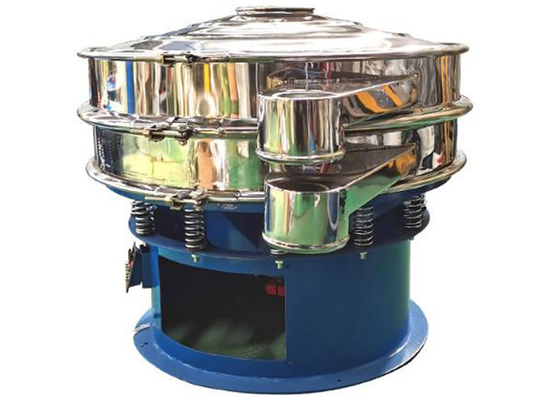

Double Deck Rotary Electric Vibrating Sieve Screen Machine
Vibrating Sieve Machine Application:
The product is applicable to any powder, granule, liquid screening and filtering of the industry. SY series rotary vibration screen is widely used in chemical industry, medicine powder, liquid, paint, pigments, cosmetics, oil, resin, ceramic slurry, clay slurry, lime, refractory powder at the end, magnetic powder, polishing powder, fruit juice, beverage, sugar, salt, MSG, spices, milk powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate, help solvents, fire extinguishing agents, as well as the environmental protection industry wastewater, wastewater treatment process of screening, filtering.
Vibrating Sieve Machine Features
1. High efficiency, refined design, duration, and any powders and mucilage are suitable for use.
2. Easily replacing the screen, simple operation, and convenience washing.
3. Never jam the hole meshwork or any powder flying, the filter size of the powder is between 500 mesh and 0.028 mm.
4. Discharge the impurity and coarse materials automobile and operate continuously.
5. Unique screen flame design, long duration of the screen, only 3-5 to replace the screen.
6. Small volume, move easily.
7. The highest layers of the screen are about 5 layers. But 3 layers are suggested.
Vibrating Sieve Machine Specification
| Model |
Effective diameter for screen surface(mm)/ Effective diameter (mm) |
Effective sieving area(m²) |
Sieving mesh specification |
Layer (s) |
Power(kW) | |
| Vibration motor |
Common motor |
|||||
| HT49-600 | φ560 | 0.23 | 2~500mesh | 1~4 | 0.25 | 0.75 |
| HT49-800 | φ760 | 0.42 | 0.55 | 1.1 | ||
| HT49-1000 | φ930 | 0.64 | 1.1 | 1.5 | ||
| HT49-1200 | φ1130 | 0.95 | 1.1 | 1.5 | ||
| HT49-1500 | φ1430 | 1.61 | 2~270mesh | 1.5 | 2.2 | |
| HT49-1800 | φ1730 | 2.35 | 1~3 | 3 | 3 | |
| HT49-2000 | φ1920 | 2.9 | 3 | 3 | ||
Vibrating Sieve Machine
The vibration sieve uses a vertical vibration motor drive, when the vertical vibration motor of the centrifugal force generated by high speed rotation shaft and eccentric block get vibration force, vibration generated by the eccentric block urged the screen being thrown up by leaps and bounds to make linear or vortex movement, so as to achieve the purpose of the screening and grading the supplies, commonly used in pipeline automation work, Material screening mesh number up to 500 mesh, the screen can be layered.
