| Name: | HT9000 Electric High Temperature Regulating Valve Control Valve For Gas Pipeline | Treatment: | Precipitation Hardening, Plating Hardening |
|---|---|---|---|
| Bearings And Bushings: | 304、316 | Valve Body Material: | 40#、304、316、316L Or Special |
| Valve Body Type: | Straight Through Forged Type | Working Temperature: | -45~575℃ |
| Nominal Pressure: | PN10, PN22, PN32/ANSI Class 900,1500,2500 | ||
| High Light: | ht9000 regulating control valve,gas pipeline regulating control valve,ht9000 water regulating valve |
||

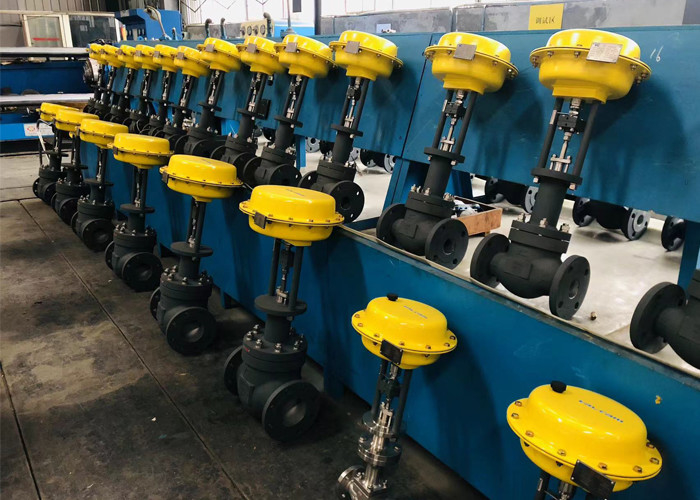

HT9000 Electric High Temperature Regulating Valve Control Valve For Gas Pipeline
Description
The HT9000 Electric High Temperature Regulating Valve Control Valve is a specialized valve designed for precise control of gas flow in high-temperature environments. It is specifically designed for use in gas pipelines where maintaining accurate temperature regulation is critical.
Features
1. The streamlined design of the valve body and the unique appearance design of the actuator installation form are very unique and novel. At the same time, the whole machine fully utilizes aesthetic principles to give the control valve a strong aesthetic feeling;
2. Modular design of valve trim, multiple structures are interchangeable in the same valve body, and has strong versatility;
3. Adopts an automatic centering snap-in valve seat, which is automatically centered, has good guidance and is easy to disassemble;
4. Adopting a line sealing structure, it can be tightly cut off and achieve zero leakage, overcoming the shortcomings of traditional straight strokes that cannot be cut off;
5. The valve core and valve seat do not need to be ground to achieve tight isolation;
6. The valve body is designed based on the principle of fluid mechanics, with small flow resistance, large circulation and small pressure drop loss;
7. The same specification has multiple Cv values, which can be easily achieved by simply replacing the valve core and valve seat;
8. If an air spring piston actuator is used, it is very convenient and fast to replace the air opening and air closing on site, which can be completed in tens of seconds;
9. On-site maintenance is simple, fast and economical. The valve body does not need to be removed from the pipeline, and no special tools are required. Unscrew the nut and remove the valve cover. The valve core and valve seat can be easily taken out for inspection and maintenance. On-site installation is also easy. Can be easily put back;
10. The valve core and valve stem are integrated, which overcomes the shortcomings of traditional valve cores and valve stems that are easily detached and can withstand low pressure due to threaded connection;
11. The whole machine has compact structure, small size and light weight;
12. This product is available in standard type, adjustable cut-off type, bellows sealed type, cavitation reduction type, noise reduction type, etc.
Comparison between HT9000 and traditional straight stroke valves
| NO. | Item | Traditional straight stroke valve | HT9000 |
|
1 |
Function |
One type of product can only be used in the specific place specified by it, and has a single function. For example, a single-seat valve cannot be used in places with large pressure differences; double-seat valves are used to compensate for large pressure differences. There are many varieties and complexities, which are difficult for production and production. Spare parts, warehouses, etc. are difficult to manage. |
With the same valve body, only the valve trim parts need to be replaced to achieve different functions, so it can widely replace single-seat valves, double-seat valves, sleeve valves, etc. |
| 2 | Valve trim replacement | Traditional valves cannot be replaced, only valve replacement, which is costly. | Four types of valve core and valve seat structures are interchangeable. It can be made into more than three valve trims with different flow coefficients, which are interchangeable and have strong versatility. |
| 3 | Pneumatic actuator | Diaphragm type, relatively small output force, replacement of air opener and air close requires reinstallation of the actuator. | There are two options: membrane type and piston type. The piston actuator has a large output force, and it is convenient to replace the air opener and air closer. |
| 4 | Connection between actuator and valve body | The cast iron bracket is bulky and unsightly; it is difficult to loosen the nut connecting the actuator bracket and the valve cover over time. | Two steel columns serve as the bracket, which is simple and beautiful; it is very easy to disassemble. |
| 5 | Connection between valve seat and valve body | Threaded connection, difficult to disassemble after a long time | Self-centering snap-in valve seat, easy to disassemble |
| 6 | Connection between valve stem and valve core | Threaded connection, the valve stem is easy to disconnect and the valve core head is easy to fall off | The valve core and valve stem are integrated and not easy to fall off or break. |
| 7 | Sealed structure | Face-to-face sealing, large leakage | Line sealing, small leakage, up to 0 leakage |
| 8 | Allowable pressure difference | Small | 2-3 times that of traditional valves |
