| Product Type: | Paper Cup Making Machine | Voltage: | 380V |
|---|---|---|---|
| Dimension(L*W*H): | 2670mm*1160mm*1600mm | Power: | 380V Three Phase,220V Single Phase,50Hz, Pls Consu |
| Raw Material: | 150-400GSM Single/Double PE Coating/Side Paper | Speed: | 40-60pcs/min |
| High Light: | Cup Making Machine With Beverages,Ultrasonic Paper Tea Cup Making Machine,Ultrasonic Pulp Molding Machine |
||
Pulp Molding Machine Description

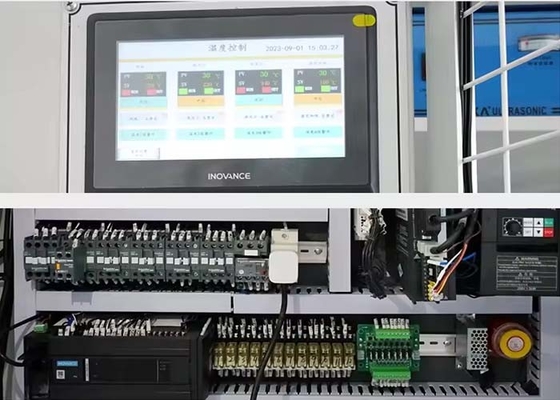

Huatao has launched a series of products for the pursuit of quality andstable production enterprises, with automatic row feed ultrasonic sealingstep gluing system, PLC control, the whole photoelectric eye fault monitoring,using Omron, Panasonic, Delta, Inovance and other brands of electricalcomponents.
Pulp Molding Machine Advantage
1: Advanced indexing cam open structure .manufacturing precision,ensuring and stability of the machine operation.
2: Swiss import Leiter flameless hot air system, stable performance, high production efficiency.
3: Using high-strength structural profiles.compact machine structure stable.
4: AIl use of standardized parts production,versatility.excellent interchange eability ,casy maintenance of equipment.
5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design.PLC automatic control.servo motor,automatic fault alarm.counting. detection.parking
7: Automatic shutdown isolation.
8:we use spray lubrication to add oil,so you only need to use three barrels of oil which is much less than other company
Pulp Molding Machine Parameters Table
|
Paper Glass Size
|
3 OZ-12 OZ
|
|
|
Raw Material
|
One-side PE (polyethylene) film coated / laminated paper
Ultrasonic machine can be produce single and double pe paper |
|
|
Speed
|
80~90 Pcs/min
|
|
|
Total Weight
|
2500KG
|
|
|
Package Size (L x W x H)
|
2700x1300x1700mm
|
|
|
Working Power
|
3.5KW
|
|
|
Total power
|
6KW
|
|
|
Power Source
|
380V 3-Phase 50Hz(if special,please info us)
|
|
|
Material
|
160~350gsm One-side or Two-side PE (polyethylene) Film Coated Paper
|
|
|
Air requirement
(Buy Comperssor ) |
0.4Mpa(4bar )/Air pressure:0.4Mpa(4bar)
Air out-put:0.6m³/Min |
|

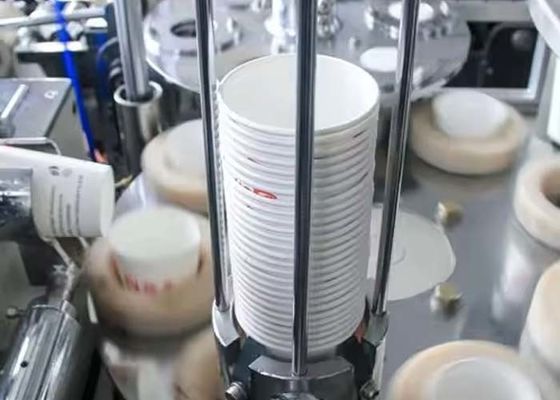

Pulp Molding Machine Display
Our Service
1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming machine exclude the parts of quick-wear. The spare parts will be provided according to the client requirement.
2.The pre-production:we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
3.The installing issue: fuchang will send engineers to customers' place . The customer should help installation, the engineer is responsible for installation, testing and training for 30 days.
4.The price:We are a manufacturer and we can provide the considerate price and make sure the quality .
