| Product Name: | Curved Roll | Base Material: | 45# Steel |
|---|---|---|---|
| Mandrel Diameter: | 30-70mm | Surface Roughness: | 1.6um |
| Roll Surface Runout: | 0.1mm | Tension: | 1000N |
| High Light: | waterproof curved roller,curved roller for warehouse logistics |
||
Safe and Durable, Waterproof Curved Roll for Warehouse Logistics

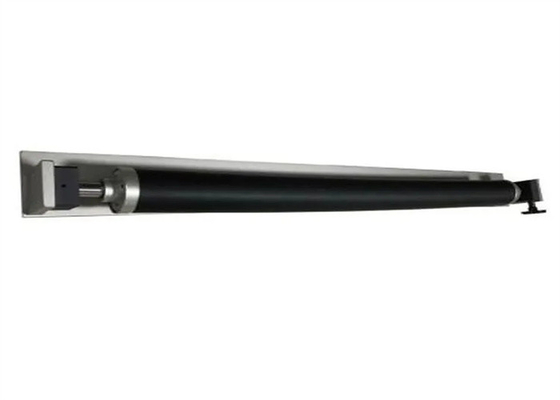

Curved Roll Description

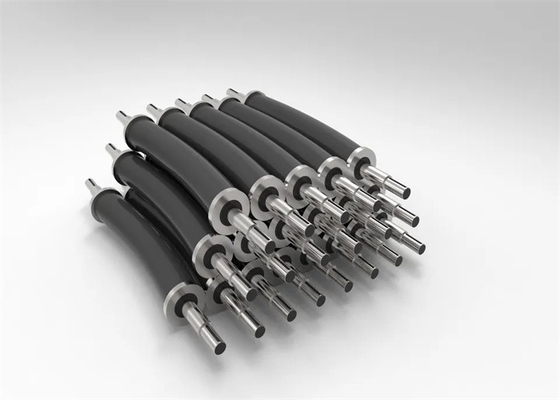

The curved roll is made by mounting a series of rotatable roll sleeves on a curved mandrel through bearings. The roller surface can be fitted with a rubber sleeve or other treatment. The curved roller is mainly composed of curved mandrel, rolling bearing assembly, rubber sleeve, end sleeve, support and adjusting wheel. The arc-shaped roller is bent into the required arc shape, the shaft is equipped with bearings at a certain distance apart, and the rubber sleeve is set on the bearing to become a roller with an arc shape and the rubber sleeve can rotate around the shaft.
Curved Roll Specification
| Total length |
800-5000mm Customizable |
Mandrel diameter | 30-70mm | Surface roughness | 1.6um |
| Roll length |
600-5000mm Customizable |
Roll surface material | EPDM,NBR,Silica gel | Roll surface runout | 0.1mm |
| Roll diameter | 80/100/120/150mm | Hardness of roll surface | 40-90(Shore hardness) | Starting tension | 0.8N |
| Arc height | 5-20mm | Speed | ≤600m/min | Tension | 1000N |
Curved Roll Features
1. High linear speed, low runout, no noise
2. Small rotating torque, can withstand large pulling force
3. Good sealing performance, waterproof, acid and alkali resistant
4. Safe and durable, easy to install and debug
5. Unique leveling function
