| Product Name: | Conveyor Roll | Barrel Material: | 20#/45# |
|---|---|---|---|
| Life Time: | More Than 30000 Hours | Pipe Diameter: | φ66~φ219 Mm |
| Wall Thickness: | 8~20 Mm | Shaft Diameter: | φ30~φ60 Mm |
| High Light: | printing machine steel rollers for conveyor,ISO steel rollers for conveyor |
||

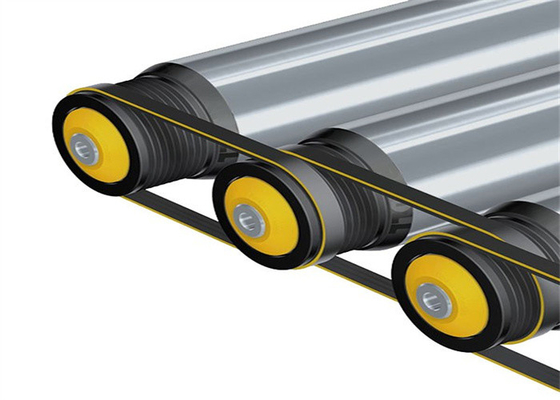

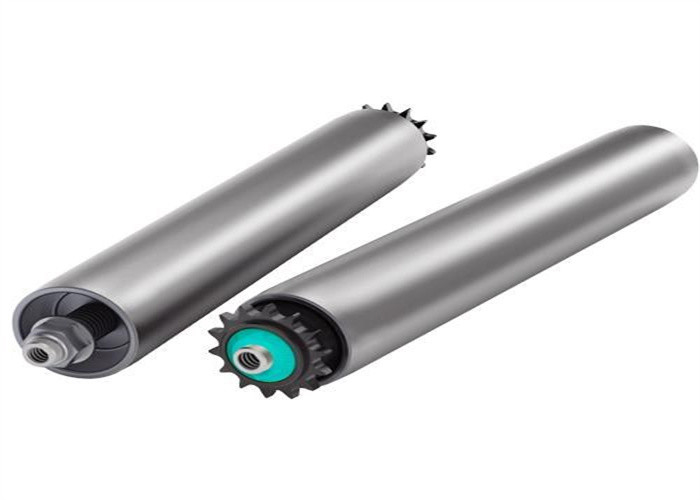

Easy Connection, Various Functional Forms Conveyor Roll For Printing Machine
Conveyor Roll Description
Conveying roller is a kind of several rollers arranged in a certain spacing and sequence between the frames on both sides. It is mainly used for conveying piece goods with regular shape and flat bottom, such as box-type containers, packages, trays, etc. It has the advantages of simple structure, reliable operation, easy maintenance, economy and energy saving; meanwhile, it has good compatibility and matching with the production process. In the past 20 years, various general and special conveying rollers have been developed rapidly and widely. In particular, production lines and assembly lines composed of conveyor rollers are more and more widely used in various industries such as machining, metallurgy, building materials, military industry, chemical industry, medicine, light industry, food, post and telecommunications, as well as warehouses and material distribution centers.
Conveyor Roll Specification
| Roller type | Barrel material | Pipe Diameter(mm) | Wall thickness(mm) | Shaft diameter |
| Turned rollers | 20#/45# | φ25~φ272 | 3~30 | φ8~φ80 |
| Dynamic balancing rollers | 20#/45# | φ66~φ219 | 8~20 | φ30~φ60 |
| Machined rollers | 20#/45# | φ25~φ272 | 3~30 | φ8~φ80 |
| Expanding sleeve turning rollers | 20# | φ100~φ219 | 6~10 | φ30~φ60 |
| Heavy duty rollers | 20#/45# | φ80~φ272 | 10~30 |
φ35~φ80 |
Conveyor Roll Features
Conveyor rollers convey flat bottomed articles such as plates, bars, tubes, profiles, pallets, boxes, containers and flat bottomed, straight-edged objects along a horizontal or small inclined angle. Conveyor rollers are used a lot in logistics with the increasing degree of mechanization and automation in production, especially in continuous incoming and outgoing storage operations. In addition to its simple structure, reliable operation, convenient and economic maintenance, energy saving and other characteristics, the outstanding advantage of conveyor roller is its production process has good compatibility, matching, functional diversity, as follows:
1. Flexible arrangement, easy segmentation and connection, forming straight, circular, horizontal, inclined, branching, merging and other sections as well as auxiliary devices according to site needs, forming open, closed, flat, three-dimensional and other forms of conveying lines.
2. Various functional forms, which can convey or accumulate goods by gravity, power, accumulation and other conveying methods, and can lift, move and turn goods during conveying
3. It is easy to connect and match with process equipment, and the connection is simple and compact, and sometimes it can be directly used as material input and output section of process equipment.
4. The goods are conveyed smoothly and stopped precisely, which is convenient for processing, assembling, testing, sorting, packing and other process operations of the goods in the process of conveying, and it is easy to realize automatic control of the conveying process.
Conveyor Roll Classification
1. Non-powered conveyor rollers
2. Power conveyor rollers
3. Accumulation of conveyor rollers
4. Turning conveyor rollers
