| Product Name: | Return Roller | Diameter: | 89-194 Mm |
|---|---|---|---|
| Face Length: | 145-2800 Mm | Tube: | Q235(GB), Q345(GB) |
| Shaft: | A3 And 45# Steel | Lubricating Oil: | Grade 2 Or 3 Long-lasting Lithium Greasae |
| High Light: | 45 carbon steel return idler roller,194mm diameter return idler roller,mining belt conveying conveyor return idler |
||

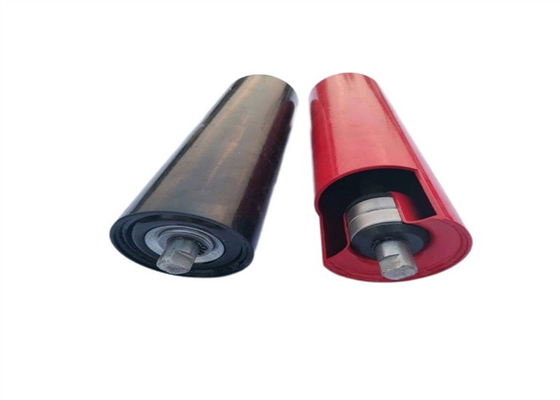

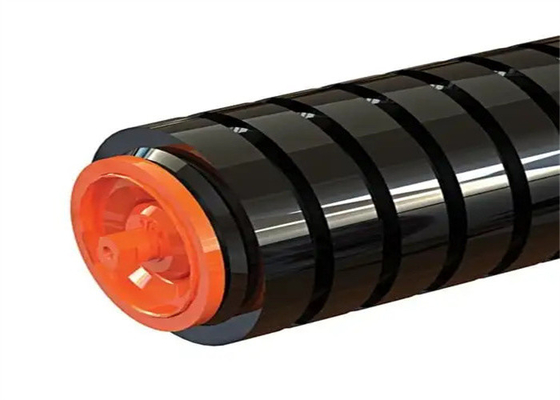

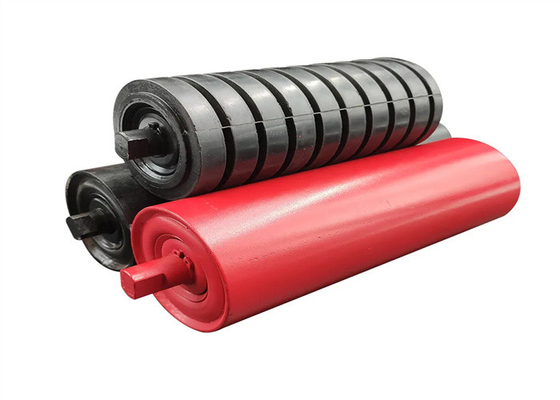

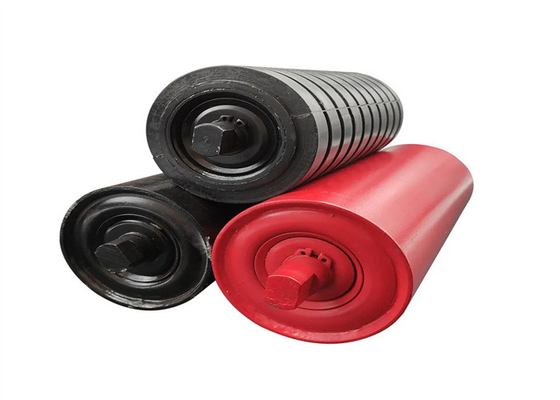

45 Carbon Steel Return Idler 194mm Diameter For Mining Belt Conveying
Return Idler Description
The standard style of the return idler is the parallel lower idler, which is also the most commonly used lower idler. Large-scale conveyors can also use two rollers, and the two rollers are arranged in a V shape to prevent deviation and have a higher carrying capacity. Most of the methods are to set three sets of V-shaped and V-shaped rollers every seven sets of parallel lower rollers. Tilt the lower roller forward.
Return Idler Specifications
| Product Name | Return Idler |
| Face Length | 145-2800 mm |
| Diameter | 89-194 mm |
| Tube | Q235(GB), Q345(GB) |
| Shaft Material | A3 and 45# steel |
| Lubricating Oil | Grade 2 or 3 long-lasting lithium greasae |
Return Idler Features
1. The return idler is changed from the original design of short idler with teeth on both sides to the idler with roller key transmission. This technical design conversion enables the use of the return idler group, making the use value more perfect and perfect. The function of the return roller group is to support the sidewall belt in the return section, reducing the running resistance of the belt and the wear of the skirt. Three seals ensure the stability and service life of spray prevention and the overall lower return roller group.
2. The extension of the operation of the supporting rollers ensures the stability and service life of the return idlers, and can provide users with more help and value in use.
