Product Details:
Payment & Shipping Terms:
|
| Material: | Synthetic Material | Thickness: | 9±0.3mm |
|---|---|---|---|
| Wdith Range: | 1000mm - 3200mm | Heat Resistance : | 220℃ |
| Weight : | 5.5kg/m2 | Length: | 80m |
| Type: | Needle Punched | Color: | White,yellow Edge ,blue Edge |
| High Light: | cotton conveyor belt,needle belt |
||

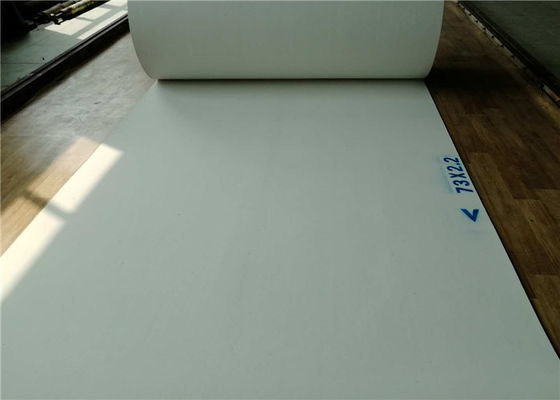

High Speed 10mm Needle Corrugator Belt
Description:
High Speed 10mm Needle Corrugator Belt gives the belt better resistance to tension. It is a modern belt for high speed machines of a new generation. Its high permeability enhances the atness and quality of board. Its reinforced pattern allows a very good life on machine. The LF (Low Friction) nishing was developed for shoe press applications and lower energy consumption.
Corrugator belt -Features
High Temperature Resistance
Aging Resistance
Even Surface
Stable Size
Long Life Time
Corrugartor Belt Specification
| Product | Needle Corrugated Belt with PTFE edge |
| Thickness | 10±0.3mm |
| Width range | 1400mm - 3200mm |
| Heat-resistance | 200℃ |
| Tensile strength | 70Mpa |
| Coefficient of friction | ≥ 0.38µ |
| Weight | (5.5±0.3)kg/㎡ |
| Air-permeability | 4.7 m³/㎡ min |
| Seam | Clipper with rubber coated /AMERICAN FASTENERS |
Corrugator Belt Seam
Concealed joint process ,avoiding the periodicity loss of indentation
On the Interface , the best selection of the United States “CLIPPER” steel buckle and the use of concealed interface technology (the joint was cut open a two-tier ,lower stainless steel buckle connected to the upper blanket material for their own cover band), joint flatness make the cardboard more smooth ,completely avoid the loss by the cyclical nature of indentation .
Corrugator Belts Package :
Type-I:Waterproof film+Dampblanket+Plasticbag+pallet
Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.
KNOW HOW to select a corrugator belt:
1). Absorb & release moisture quickly, support drying process of cardboards;
2). Durable, pull and transport cardboards, perform long working life time.
3). Dependable,less shrinkage,less stretch.
