Product Details:
Payment & Shipping Terms:
|
| Color: | Brown | Technology: | Needled Punched |
|---|---|---|---|
| Material: | PBO+Kevlar | Material Feature: | Heat Resistant |
| Thickness: | 6mm,8mm,10mm | Internal Diameter: | 25,28,49,50,51,60,61,62,80,83,90,95,100,120mm Etc |
| Length: | As Your Demands | Continual Temperature: | 550℃ |
| Peaking Temperature: | 600℃ | Usage: | Aluminum Extrusion Lines |
| High Light: | industrial felt rolls,polyester needle felt |
||

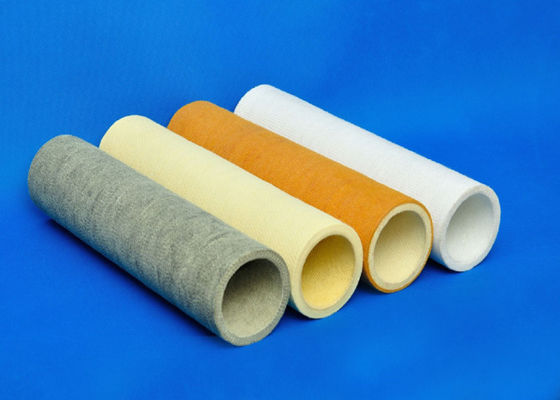

10mm Brown Color 600 Degree PBO & Para-Aramid Felt Roller Sleeve Tube
DESCRIPTION
In the aluminum forming process, the earlywood, graphite has been replaced by heat-resistant felt. Heat-resistant felt that is resistant to high-temperature wear-resistant, and soft texture, non-polluting, The felt belt have already solved the problem of traditional graphite can not prevent scratches and post-processing of aluminum will leave the black marks, in recent years more and more aluminum profile manufacturers choose this kind of conveyor belts. PBO fiber instantaneous disintegration temperature of 600 ℃, mainly used for extrusion of aluminum extrusion first stage.
SPECIFICATION
| Product Number | Color | Composition |
| HPK | Brown 600℃ | PBO Outside + Kevlar |
| HK | Yellow 500℃ | 100% Kevlar |
| HKC | Green 500℃ | Kevlar+Carbon mixture |
| HN | Nomex 300℃ | 100% Nomex |
| HP | White 200℃ | 100% Polyester |
|
Available Size (inside diameter) |
Φ23,25,Φ49,50,51 Φ60,62,63 Φ76,77 Φ80,81,82 ,85Φ90,95 Φ100,101,102 Φ114,115 Φ120 or as your demands |
|
| Thickness(mm) | 6,8,10,12 | |
ADVANTAGE
1 Heat resistant up to 600℃;
2 No elongation under high tension and heavy load;
3 No seam, splice or joints: no breaks due to weak zone, High-density structure;
4 Smooth and even belt surface: scratch-free extrusions;
5 Excellent belt tracking on the cooling table;
6 The capability of withstanding high temperatures thanks to a batt of aramid fibers needled on an endless base fabric;
7 Low heat conductivity and high density with good wear resistance and impact resistance property under heavy conditions;
APPLICATION
Applied to aluminum profile extrusion machine run out table and walking beams, Max temperature resistance 600℃.
Our company solemn promise: my product will never appear fluff, tear, of the net, delamination, scales, deviation, elongation, deformation, aluminum pollution, and other phenomena; provided by the original materials from the United States DuPont original factory Genuine. Product technical indicators in full compliance with DuPont's temperature, wear performance parameters.
Design Your Belt
Operation Temperature: 200℃,300℃,500℃,600℃ Your operation temperature:_____
Material:pbo/kevlar/aramid/Nomex/polyester Your request material:__________
Thickness:6mm,8mm,10mm Your request width:____________
Width and length can be customed Your request:_________________
Contact us to get the quotation details.
