Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh

Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh
Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh

Large Image :  Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh

Product Details:
Place of Origin: China
Brand Name: Huatao
Model Number: HT04
Payment & Shipping Terms:
Minimum Order Quantity: 10 pc
Price: USD150-180/pc
Packaging Details: Wooden frame
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western UnionPaypal
Supply Ability: 100000pc per month
Detailed Product Description
Origin: China Application: Mine And Quarry
Apeture: As Requirement Hooks: As Requirement
Material: Polyurethane And Steel Dimension: As Requirement
Aperture: Minimun 3mm Condition: New
Place Of Origin: Hebei, China Brand: Huatao
High Light:

vibrating screen wire mesh

,

pu screen mesh

Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh





Self-Clean Mesh Feature



high performance and excellent self cleaning,long wear-life ,More opening area,30% more capacity than woven wire ,Eliminates blinding and plugging ,3 times longer wear life time than woven wire,Minimizes down time cleaning and unclogging,Maximizes throughput



Self-Clean Mesh Specification


Item
Self cleaning screen
Dimension
As requirement
Aperture
Minimum 3mm
Material
Steel and polyurethane
Wire diameter
Minimum 1mm


Progress Harp Type K

This type of screens is made of round wavy, wires, curved in the horizontal working plain. Angle between the arms equals 90.
Working size of W opening is created by diameter of the circle written into this opening. Wires placed one next to another create
openings similar to a square. Working wires are buckled together with transversive wires using polyurethane, rubber or wires
inside plastic cover.
Opening sizes: 1.5 - 35 mm
Ø Wire: 0.8 - 6.3 mm


Progress Harp Type T
They are produced with wires of round diameter – straight and wavy placed alternately on the horizontal working surface. Wave
spread span equals 90 or 60 . Working size of W opening is created by the diameter of the circle written into this opening.
Straight, round wires have a slightly larger diameter then wavy ones. This series of screens characterizes with high ability to
withstand heavy loads (owing to very well stretched straight wires)and good self-cleaning effect, obtained by self – oscillation
of wavy wires. Wires in this series of screens can be connected with each other using wire knots, polyurethane, rubber or
transverse wires inside plastic cover.
Opening sizes: 1.2 - 14 mm
Ø Wire: 1 - 4 mm



Self-Clean Mesh description

Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh 0

Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh 1

Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh 2

Self-Clean Mesh detailed image

Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh 3

D mesh
The D mesh is designed with precisely crimped wires and woven into diamond shaped openings. D mesh type has more effective open area, because there isn’t the straight wire, which is existing in the W mesh.



H mesh
The H mesh of self cleaning screen mesh is made of several horizonal and parallel crimped wires. It looks like the herringbone pattern, which can offer better sizing control than D mesh and W mesh by eliminating more flats and elongates.



W mesh
W mesh is specifically engineered and designed to reduce blinding and plugging conditions when the use of conventional square opening wire cloth is not acceptable. The W mesh screen accurately controls material sizing, both undersized, similar sized and oversized materials, while staying clean and remaining efficient.

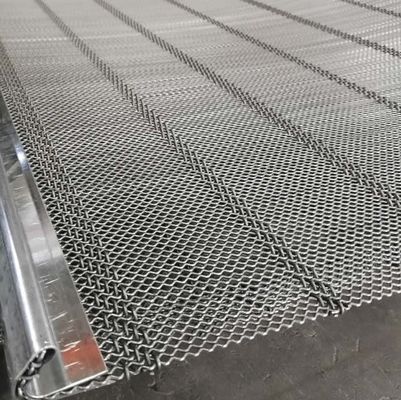

Self-Clean Mesh pictureSand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh 4

Sand And Gravel Industry Polyurethane And Steel Material Heavy Duty Self-Clean Mesh 5



FAQ

Q: What is the delivery time?
A:It is according to your quantity,normally 7 to 10 days;

Q:What is the advantages com pared to other suppliers?
A:The unique full automatic roller production line, high machining accuracy, uniform and stable quality, which can realize
continuous and efficient professional production, so we can provide good quality product and service to our customers.

Q:Can we visit your company?
A:No problem, we are look forward to your arrival and we will lead you to visit our factory.

Q:What's your trade term ?
A:EXW , FOB , CIF , CFR etc can be available

Q:Can I ask for samples for test purpose ?
A:Yes , it is welcomed . And according to our company policy , the sample fee & shipping cost need to be paid by your end , but we
can refund the sample fee upon receipt of your trial order .

Q:Can I OEM my screens ?
A:Yes , OEM material , size , color, package etc can be acceptable.

Q: Can I order 1 piece?
A:Yes , as our MOQ is 1 piece.
