120-1600 3/5/7 Ply Corrugated Cardboard Production Line

120-1600 3/5/7 Ply Corrugated Cardboard Production Line
120-1600 3/5/7 Ply Corrugated Cardboard Production Line 120-1600 3/5/7 Ply Corrugated Cardboard Production Line 120-1600 3/5/7 Ply Corrugated Cardboard Production Line 120-1600 3/5/7 Ply Corrugated Cardboard Production Line

Large Image :  120-1600 3/5/7 Ply Corrugated Cardboard Production Line

Product Details:
Place of Origin: China
Brand Name: HT
Certification: SGS,ISO
Model Number: HT001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Can Negotiate
Packaging Details: Wooden Box
Delivery Time: 5 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Contact Now
Detailed Product Description
Payment Term: L/C,T/T Quality: Excellent
Delivery Time: Within 7 Days Material: STEEL
Shipment Term: By VESSEL /AIR Design Speed M/min: 100-300
Multy Ply Board: 3/5/7 Ply
Highlight:

corrugated carton making machine

,

corrugated cardboard making machine

120-1600 3/5/7 Ply Corrugated Cardboard Production Line
Product Specifications
Attribute Value
Payment Term L/C, T/T
Quality Excellent
Delivery Time Within 7 Days
Material STEEL
Shipment Term by VESSEL / AIR
Design Speed m/min 100-300
Multy Ply Board 3/5/7 ply
Product Description

The 120-1600 3/5/7 Ply Corrugated Cardboard Production Line is a complete system for manufacturing high-quality corrugated board with production speeds ranging from 60 to 300 meters per minute. The line includes mill roll stand, single facer, pre-heater jar, conveyor bridge, gluing machine, thin blade slitter scorer, NC cut off machine, and auto-stacker.

Key features include:

  • Produces 3ply, 5ply, and 7ply corrugated cardboard
  • Working width from 1400mm to 2500mm
  • Multiple heating options: steam, electrical, or oil heating
  • Flute options: A / B / C / E / F (0.7mm to 4.2mm height, custom-made)
Main Mechanics (3 Layers)
  1. Mill roll stand: 3 electric drive units with expandable chucks and roll feed trolley

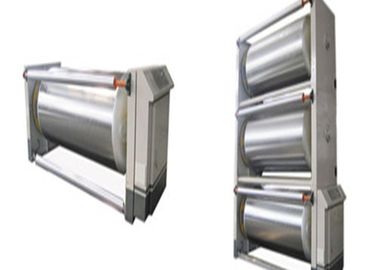

  2. Single facer: Vacuum adsorb type with Φ268mm corrugated roller and gimbal transmission

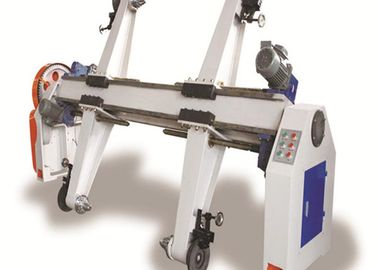

  3. Conveying bridge: Electrical adjusting deflection with adsorbtion tension

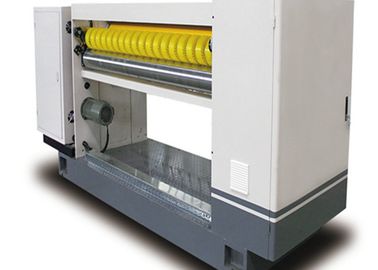

  4. Single glue machine: Pneumatic operation with VFC
  5. Duplex preheater: Φ600 with electromotion to enlarge preheating area (electric heating)
  6. Preheater: Φ600 with electromotion to enlarge preheating area (electric heating)
  7. Double facer: 520mm×11pcs hot plate with upper-lower intensive press roller
  8. Cool design department: Upper-lower intensive press roller with 6m channel length
  9. Conveying Belt: 2 high quality cotton belts

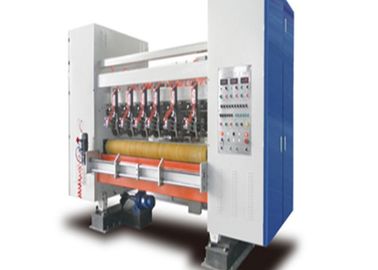

  10. Thin Blade Slitter Scorer: 4 blades and 6 scores with electrical adjusting deflection
  11. Cutoff: NC Cutter with Straight Blade
  12. Main transmission: 18kw with adjustable speed
  13. Air pump: Electric to charge the air
  14. Electric control system: Operation counter, single facer, and main transmission
  15. Steam system: (Heat source and director of road not included)
  16. Glue Make system: Manual feed to single facer and single gluer
  17. Horizontal Output: Horizontal output with vertical transmission
Performance Specifications
Design Speed (m/min) Running Speed (m/min) Working Width Multy Ply Board
100 60-80 1400-2000 3/5ply
150 80-120 1400-2200 3/5/7 ply
200 120-180 1400-2500 3/5/7 ply
300 150-250 1400-2500 3/5/7 ply
120-1600 3/5/7 Ply Corrugated Cardboard Production Line 0
Configuration List
No. Name Qty Feature
1 RS Electrical Mill Roll Stand (with trolley and track) 3 Toothed chuck, manual disc brakes, pneumatic mechanically actuated lift, panning left and right on the middle. Guide rail length is 4500 mm, the trolley adopts 10 mm plate welding.
2 PH-60 Pre-heater 2 The roller φ600 mm, Electric adjustment angle, adjusting heating area within the range of 360°
3 SF-12A(320) Single Facer 1 Corrugated rollerφ320mm, 48CrMo high quality alloy steel, plating chromed. Independent gearbox, universal joint drive structure. Cylinder control lifting. Pneumatic control glue, circulating supply glue. Man-machine display.
4 OB Conveying Bridge 1 The main beam is connected with the GB 200 channel steel, 63 angle steel. Independent frequency motor drive paper conveying. Suction tensioning and electric correcting.
5 Duplex Pre-heater 1 The rollerφ600 mm, electric adjustment angle angle, adjusting heating area within the range of 360°
6 GM-15 Gule Machine 1 Glue roller φ269mm, carved 25 line pit type mesh. With preheater device. Independent frequency motor drive. Circulating supply glue with PLC control. Man-machine interface display.
7 DF-40 Double Facer 1 Main frame is 400 mm GB channel steel. Hot plate 600 mm 9 pcs with plating chrom. 4 M cooling section. Adopt pressure bar lifting by pneumatic control. The upper and lower belt correct automatically. Temperature display. Frequency motor drive.
8 ...... Related Configuration would be adjusted based on end customer different requirements.
If you have any special requirements, welcome to contact us 24/7. Technical solutions will be provided immediately.
Related Products

Separate equipment and spare parts are also available, including:

  • Single Facer Machine
  • Mill Roll Stand
  • NC Cut Off Machine
  • Slitter Scorer
  • Corrugator belt and Slitter knife

Second Hand Corrugated Cardboard lines from brands including BHS/JS/HSIEH HISU/FULI/MINGWEI, etc.
