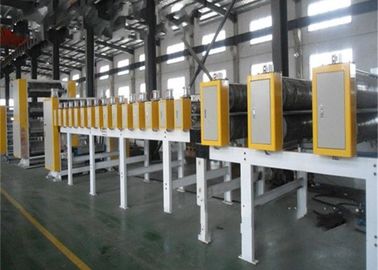

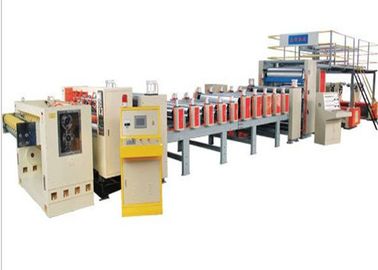

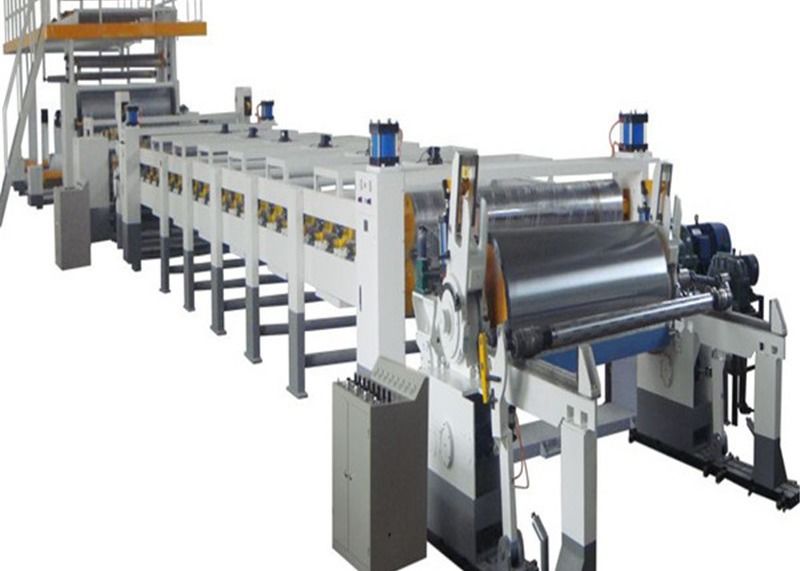

PLC Automatic Packing Corrugated Cardboard Machine

Large Image : PLC Automatic Packing Corrugated Cardboard Machine

Product Details:

Place of Origin:	China
Brand Name:	HT
Certification:	SGS,ISO
Model Number:	HT001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Can Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Quality:	Excellent	Payment Term:	L/C,T/T
Delivery Time:	Within 7 Days	Material:	STEEL
Shipment Term:	By VESSEL /AIR	Design Speed M/min:	100-300
Multy Ply Board:	3/5/7 Ply	Packaging Material:	Metal, PAPER
High Light:	corrugated carton making machine , corrugated cardboard making machine

PLC Automatic Packing Corrugated Cardboard Machine

Corrugated Cardboard Machine Technology Parameters

Model	HT-2600	HT-2800	HT-3000
Max cardboard size	1200×2400	1200×2600	1200×2800
Min cardboard size	170*450	170*450	170*450
Dimension	L12500×W3000×H1600	L12500W3200H1600	L12500W3400H1600
Motor power	10kw	12kw	12kw
Machine weight	5500kg	6500kg	7500kg
Application board thickness	3layer or 5layer

Corrugated Cardboard Machine Technical parameters

1600mm 4ply hard cardboard production line

1) design speed :80m/min

2) working speed:40-60m/min

3) 4ply line:30-40m/min 3ply: 40-50m/min 2ply: 50-60m/min

4) workign width:1600mm 4,cut paper length:500mm-9999mm

5) paper precision:±1mm

6) cardoards thickness:3-4mm

7) capacity:3-4T/h

8) production line length:43meter(can design this as per customer need)

9) motor :230V 60Hz 3phase

10) machines total power:about 151.34kw (actual using power about40-80KW)

11) using glue quantity:15-30g per layer /m2

12) using paper min gsm: 80GSM

Corrugated Cardboard Machine lead edge paper feeding

1.The suction assist feeder paper, draught fan 7.5 kw, at different levels can be bent according to the board, air volume adjustment, ensure bent cardboard and thin cardboard feeding smoothly.

2.lift paperboard,drop paperboard adopt cylinder push, move quick and powerful.

3. Side baffle is electric and computer touch screen adjustment (computer setting value, automatic adjustment), front baffle is manual synchronous adjustment,back baffle box is electric adjustment.

4.Feeder wheel is from Taiwan MaxDura brand, Durable Wear Resistant.

Printing unit

1.Printing phase PLC touch screen adjust (motion and stop all can be adjusted)

2.There is lack of ink alarm device( Machine alarm when the amount of ink is lower than the limit,avoid no ink work)

3.Anilox roller can chose steel anilox roller and seramics anilox roller.

Slotting unit (Computer automatic adjust knife, order store 999 orders)

1.Slotting knife holder and creasing roller lateral movement adopts synchronous electric adjustment, moving smoothly, with high precision.PLC touch screen adjustment, direct input the carton size, automatic adjustment, memory storage orders, and other functions

2.Single shaft double blade slotting , the carton height adjust adopt outside the tooth structure , The lubricating oil is not easy to pollution carton, PLC digital electric adjustment, touch screen control

3.Elastic Angle cutter structure, can cut off three, five layers cardboard without any adjustment.

4. slotting corne cutting patent

Die cutting unit

1.Mechanical type horizontal 40 mm, move device, die-cutting equalizer automatic compensation linear speed ,can make the die cutting rubber gasket uniform wear, prolong service life.

2. Repair adopt electric repair device, improve the rubber gasket repeat utilization rate, can repair 3-4 times.

3.Die cutting roller automatic pneumatic separation device, reduce wear rubber gasket , thus improve the service life

5.Can adopt slotting balde on the die cutting roller

PLC Automatic Packing Corrugated Cardboard Machine 0
