| Material: | Polyurethane | Size: | 610mm*610mm /305mm*305mm |
|---|---|---|---|
| Type: | LINEAR | Feature: | High Screening Efficiency |
| Usage: | Separation Screening | Function: | Screening\separation\sorting\sieving |
| Voltage: | 220V / 380V / 415V / 450V | Warranty: | More Than 5 Years, 12 Months |
| High Light: | silica sand dewatering Vibrating Screen Mesh,silica sand dewatering pu screen mesh,610x610mm pu screen mesh |
||

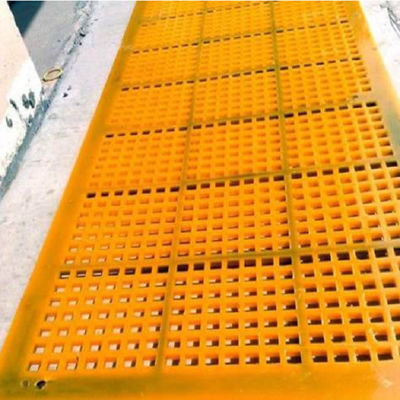

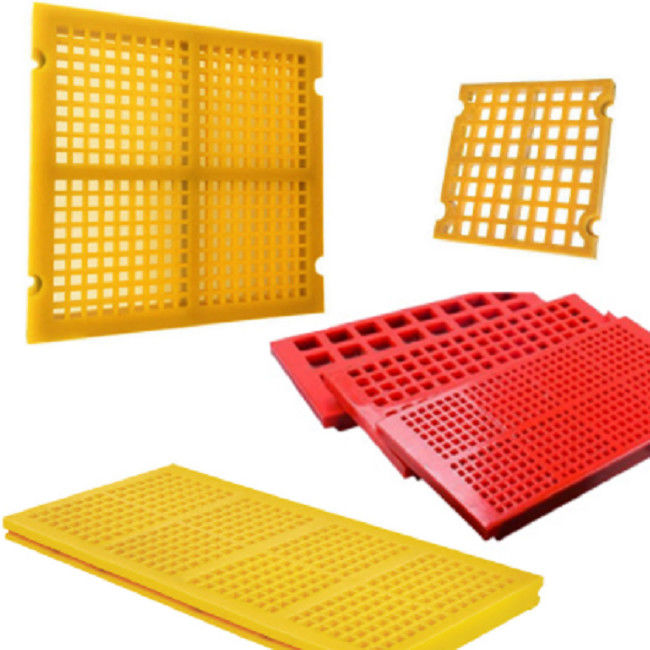

High Strength Pu Vibrating Silica Sand Dewatering Screen Panels
Polyurethane fine screen mesh is made of polyurethane sheet. Polyurethane fine screen mesh is abrasion resistance and with much longer service life than the woven vibrating screen mesh. Moreover, the property of anti-blinding makes it feasible to screen materials which is considered difficult or impossible to screen previously. Polyurethane fine screen mesh has an extremely fine openings which is as fine as 0.1mm, which is suitable for a wide variety of wet and dry applications.
Material: polyurethane sheet.
Aperture size:Width: 0.1mm - 1.5mm. Length: 2.59mm - 8.2mm.
Screen width: 0.6m, 0.7m, 0.8m, 1m, 1.2m, 1.4m, 1.6m.
Screen length: 0.7m, 0.8m, 1m, 1.045m, 1.2m, 1.245m, 1.5m, 2m, 2.32m, 2.5m, 3m, 3.32m, 3.5m and so on.
Open area: 20.0% - 40.6%.
Hook: polyurethane or metal.
|
Polyurethane Fine Screen Mesh for Fine Particle Separations
|
|||
|
Item
|
Slot width (mm)
|
Slot length (mm)
|
Open area (%)
|
|
HT-01
|
0.10
|
2.59
|
28.8
|
|
HT-02
|
0.12
|
2.59
|
20.20
|
|
HT-03
|
0.15
|
2.75
|
28.90
|
|
HT-04
|
0.18
|
2.12
|
29.64
|
|
HT-05
|
0.20
|
2.59
|
25.80
|
|
HT-06
|
0.23
|
2.59
|
27.80
|
|
HT-07
|
0.25
|
2.59
|
30.20
|
|
HT-08
|
0.40
|
2.59
|
31.90
|
|
HT-09
|
0.50
|
4.30
|
33.50
|
|
HT-10
|
0.60
|
4.30
|
36.40
|
|
HT-11
|
0.70
|
5.20
|
39.33
|
|
HT-12
|
0.80
|
5.20
|
40.60
|
|
HT-13
|
1.00
|
5.75
|
43.35
|
|
HT-14 |
1.50
|
8.20
|
37.91
|
Technical date
| Origin place | Yantai China (Mainland) | Brand Name | FUSHUN | Material | Polyurethane |
| Color | Optional | Elastic Resilience | 34% | Abrasion Loss | 0.019cm3/1.61km |
| Elongation | 445-557% | Tensile Strength | 30-53MPa | Tear strength | 70KN/m |
| Compressive strength | 6-10.5Mpa | Hardness | Shore60-98A | Temperature | -40°~ |
Main Features
1.Easy installation: metallic hooks design makes it very easy to install or replace.
2.Long Lasting and Maximizes Open Area: almost same open area compared with wire mesh while with a service life about 8 times longer.
3.Lower noise: PU wire mesh screen can reduce that noise level by as much as 9 decibels. That's a 50% reduction as perceived by the human ear.
4. Energy saving and consumption reducing: the weight of polyurethane made screen panel is dramatically reduced compared to traditional steel screen panels of the same size. It will reduce much load onto the vibration machine, power saving and prolong the life of the whole screening equipment.
Application
Advantages of mining screen
1.High screening Efficiency---2-5 times of the ordinary screen
2.Large bearing capacity---2.5 times more than rubber sieve
3.Long service life--- Can be used for six months to more than one year
4.good abration and corrosion resistance--- condition of using water or oil as the medium.
5.maintanance and replacement is low--- Hole can't be plugged& washing-free
6.Low noise---it has well vibration-absorbing performance
7. rational design of the screen hole---limit size of the particleswill not block mesh.
8.widely used---mining, metallurgy, coal, coking, chemical and other industries.
9. Good wet resistant performance---work on the water condition
