Product Details:
Payment & Shipping Terms:
|
| Material: | Polyurethane | Size: | 610mm*610mm /305mm*305mm |
|---|---|---|---|
| Type: | LINEAR | Feature: | High Screening Efficiency |
| Usage: | Separation Screening | Function: | Screening\separation\sorting\sieving |
| Voltage: | 220V / 380V / 415V / 450V | Warranty: | More Than 5 Years, 12 Months |
| High Light: | industrial mining vibrating screen mesh,industrial mining polyurethane screen mesh,Vibrating Screen Mesh 610*610mm |
||

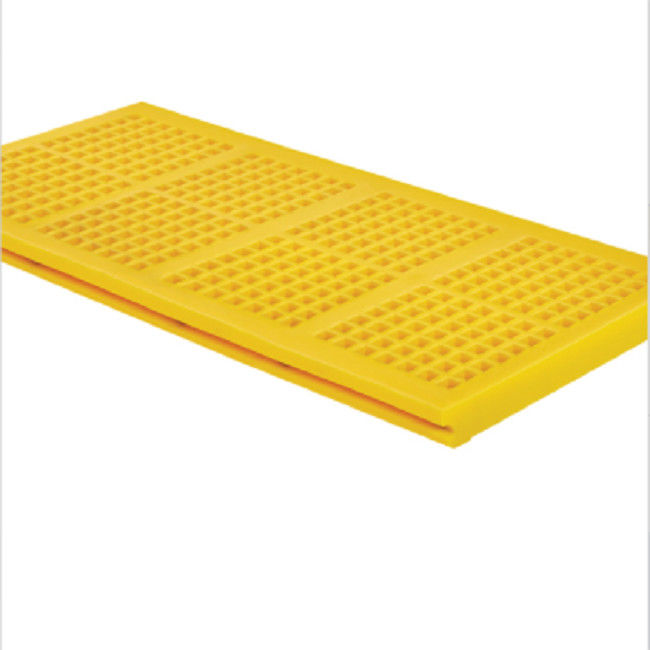

Vibrating Screen Polyurethane Industrial Mining Screens And Panels
High quality pu polyurethane screen panels
Polyurethane vibrating screen is made of polyurethane materials. It mainly used for miningmineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places. It can separate and screen almost all of materials from coarse stones to fine materials and ideal for both dry and wet materials.
Polyurethane is a new type of polymer composite material,belonging to high-tech products,according to the classification of it between plastic and rubber,but many of its performance is much better than the two,is an ideal material to itsupgrading. Compared with stainless steel mesh and rubber mesh,it has many good performance. it is the best replacement products for various industry.
|

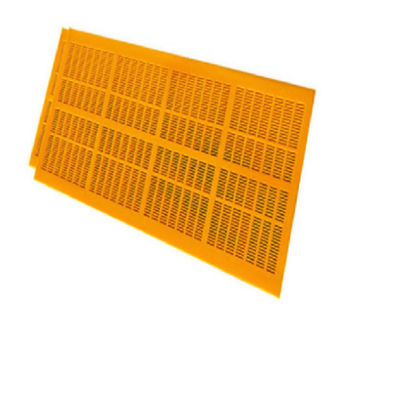

Polyurethane Fine Screen Mesh for Fine Particle Separations
|
|||
|
Item
|
Slot width (mm)
|
Slot length (mm)
|
Open area (%)
|
|
HT-01
|
0.10
|
2.59
|
28.8
|
|
HT-02
|
0.12
|
2.59
|
20.20
|
|
HT-03
|
0.15
|
2.75
|
28.90
|
|
HT-04
|
0.18
|
2.12
|
29.64
|
|
HT-05
|
0.20
|
2.59
|
25.80
|
|
HT-06
|
0.23
|
2.59
|
27.80
|
|
HT-07
|
0.25
|
2.59
|
30.20
|
|
HT-08
|
0.40
|
2.59
|
31.90
|
|
HT-09
|
0.50
|
4.30
|
33.50
|
|
HT-10
|
0.60
|
4.30
|
36.40
|
|
HT-11
|
0.70
|
5.20
|
39.33
|
|
HT-12
|
0.80
|
5.20
|
40.60
|
|
HT-13
|
1.00
|
5.75
|
43.35
|
|
HT-14 |
1.50
|
8.20
|
37.91
|
Technical date
| Origin place | Yantai China (Mainland) | Brand Name | FUSHUN | Material | Polyurethane |
| Color | Optional | Elastic Resilience | 34% | Abrasion Loss | 0.019cm3/1.61km |
| Elongation | 445-557% | Tensile Strength | 30-53MPa | Tear strength | 70KN/m |
| Compressive strength | 6-10.5Mpa | Hardness | Shore60-98A | Temperature | -40°~ |
Main Features
1.Easy installation: metallic hooks design makes it very easy to install or replace.
2.Long Lasting and Maximizes Open Area: almost same open area compared with wire mesh while with a service life about 8 times longer.
3.Lower noise: PU wire mesh screen can reduce that noise level by as much as 9 decibels. That's a 50% reduction as perceived by the human ear.
4. Energy saving and consumption reducing: the weight of polyurethane made screen panel is dramatically reduced compared to traditional steel screen panels of the same size. It will reduce much load onto the vibration machine, power saving and prolong the life of the whole screening equipment.
Application
1 polyurethane mesh is the replacement of the rubber sieve panels, itself has light weight, high screening efficiency, no blocking by the hole, the friction resistance, impact resistance, tear resistance, long service life (2-3 times that of stainless steel sieve plate).Hole size range is wide, hardness range is adjustable, can better provide material secondary resonance performance, not sticky, low noise, good vibration absorbing materials, and easy installation, high comprehensive benefit.
2 can be applied to coal, coking plant, mines, power plants, metallurgy, petroleum, petrochemical, building materials, water conservancy, road construction and other industries.
3 the raw material of 0.2mm slotted opening polyurethane screen with hook for two component polyurethane, itself not only have certain elasticity, wear resistance, and still have a tear resistance, impact resistance, weather resistance, hydrolysis resistance, oil resistance and other advantages, made a great contribution in sieve divisions.
Shipping:
sample is by air Express, and large order is by sea.
Payment terms:
1).100% irrevocable L/C at sight.
2).30% T/T prepaid and the balance against the copy of B/L.
3).30% T/T prepaid and the balance against L/C
Samples:
samples are available but you need pay for the sample price and freight fee.
the sample fee is returned after you place an order.
The delivert time is about 30days.
