| Product Name: | Pneumatic Control Valve | Connection Method: | Flange |
|---|---|---|---|
| Nominal Pressure: | 1.0~1.6Mpa(other Pressure Can Be Customized) | Interaction Method: | Double Action, Single Acting Normally Close Or Open |
| Pressure Range: | 16 Bar,25bar,40bar | Gasket: | Metal Graphite Packing |
| High Light: | flange high pressure regulating valve,16 bar high pressure regulating valve,16 bar pneumatic regulating valve |
||
Pneumatic High Pressure Regulating Valve
Pneumatic Regulating Introduction:
A pneumatic regulating valve is a valve that uses compressed air as a power source to achieve automatic control. It consists of an actuator and a regulating mechanism. The actuator is the thrust component of the regulating valve, which generates corresponding thrust according to the size of the control signal pressure and drives the regulating mechanism to act. The valve body is the regulating component of the pneumatic regulating valve, which directly contacts the regulating medium and regulates the flow rate of the fluid.
Application:
Pneumatic regulating valves are widely used in industries such as natural gas, oil, chemical, metallurgy, paper-making, electricity, mining, printing and dyeing, biopharmaceuticals, daily chemicals, food and beverage, water treatment, and air handling for fluid automatic control or regulation. They are commonly used in conjunction with automated pneumatic instruments.
Working Principle:
1. In the closed position, the ball is pressed against the valve seat by the mechanical pressure of the valve stem.
2. When the hand wheel is turned counterclockwise, the valve stem moves in the opposite direction, and the angular plane at the bottom makes the ball disengage from the valve seat.
3. The valve stem continues to lift and interacts with the guide pin in the helical groove of the valve stem, causing the ball to start rotating without friction.
4. Until it reaches the fully open position, the valve stem is raised to the limit position, and the ball rotates to the fully open position.
Produce parameters:
|
Item
|

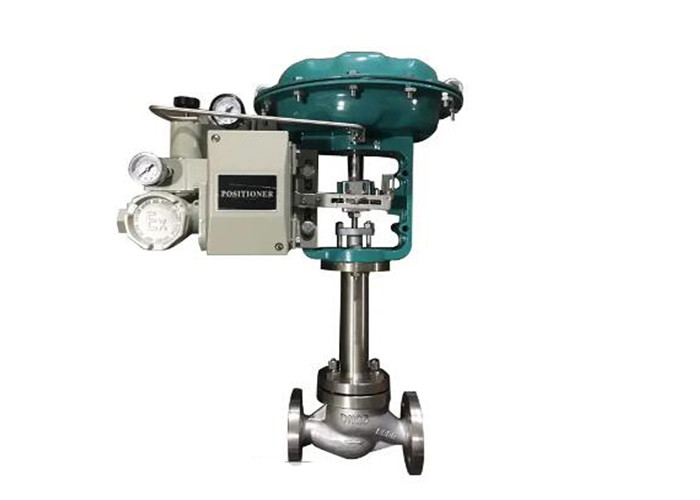

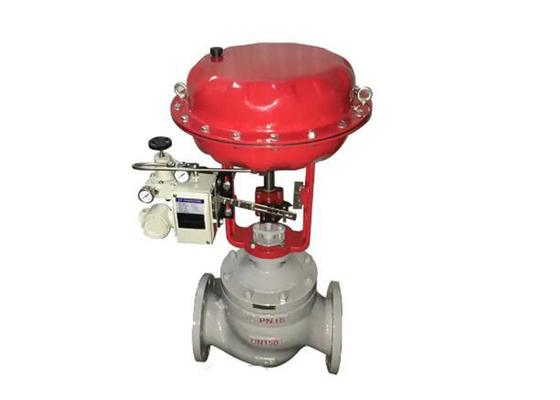

Pneumatic Control Valve Modulating Valve Pneumatic Diaphragm Three Way Regulating Valve With Positioner
|
|
Warranty
|
1 year
|
|
Working Pressure
|
1.6, 4.0, 6.4MPa
|
|
Air Supply Pressure
|
0.14, 0.16, 0.28, 0.4MPa
|
|
Temperature
|
-30°C~70°C
|
|
Body Material
|
WCB LCB CF8 CF3 CF8M CF3M
|
|
End Connection
|
Flanged
|
|
Gasket
|
Metal graphite packing
|
|
Applicable Media
|
Control of Water, Air, Gas, Oil, Liquid, Steam, etc
|
|
Optional Accessories
|
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
|
|
Application
|
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination,
Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining,
Boiler and Power Industries |
|
Structure
|
Diaphragm
|
|
Acting Mode
|
Multi-Spring diaphragm type
|
