Ultra High Performance Uhp Graphite Electrodes For Demanding Industrial Furnaces

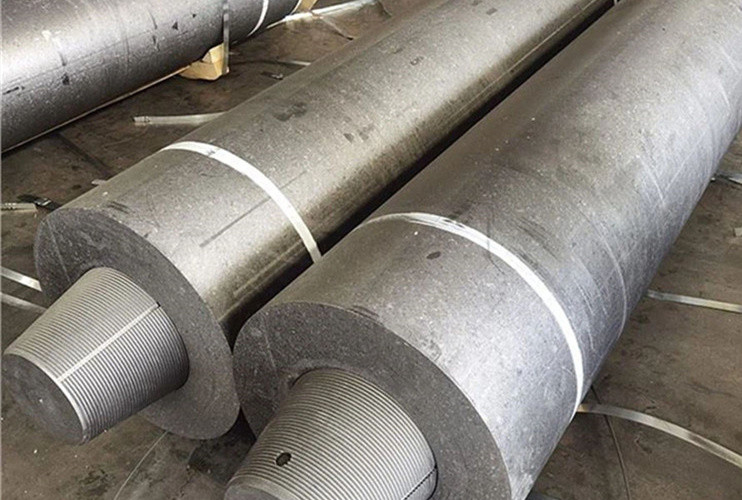

Large Image : Ultra High Performance Uhp Graphite Electrodes For Demanding Industrial Furnaces

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Certification:	CE,ISO
Model Number:	HTGE04

Payment & Shipping Terms:

Minimum Order Quantity:	20 Tons
Price:	1450-3000USD/Ton
Packaging Details:	Wooden Pallet
Delivery Time:	15-30days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	300Tons per month

Contact Now

Detailed Product Description

Product Name:	Ultra-High Performance UHP Graphite Electrodes For Demanding Industrial Furnaces	Raw Materials:	Premium Needle Coke With 99.9% Purity And High-quality Coal Tar Pitch
Current Density:	Exceeds 25A/cm², Ideal For Intense Power Applications	Ash Content:	≤0.2%, Ensuring Minimal Impurity Introduction
Thermal Conductivity:	Exceptionally High, Enabling Rapid Heat Dissipation	Mechanical Rigidity:	High-strength Structure Resists Breakage Under Heavy Loads
Oxidation Resistance:	Advanced Multi-layer Anti-oxidation Coating	Electrical Resistivity:	Ultra-low For Optimized Current Flow
Diameter Range:	500mm - 900mm, With Customizable Lengths Upon Request	Origin:	China
Highlight:	ultra high performance graphite electrode , demanding industrial furnaces graphite electrode , Industrial Furnaces uhp graphite electrode

Ultra-High Performance UHP Graphite Electrodes for Demanding Industrial Furnaces

Description For Ultra-High Performance UHP Graphite Electrodes For Demanding Industrial Furnaces:

In ultra-high power electric arc furnaces melting stainless steel, alloy steel, and high-grade ferrous alloys, UHP Graphite Electrodes play an indispensable role. Their superior performance is crucial for achieving high production efficiency and cost savings in the metallurgical sector.

Crafted for extreme durability and maximum energy efficiency, UHP Graphite Electrodes deliver unrivaled performance in ultra-high power electric arc furnaces, slashing production costs and boosting output.

Feature For Ultra-High Performance UHP Graphite Electrodes For Demanding Industrial Furnaces:

Constructed from 99.9% pure needle coke and superior coal tar pitch, these electrodes undergo a meticulous production journey. Every stage, from raw material procurement to final machining, adheres to stringent quality norms, guaranteeing exceptional performance.

With a current density surpassing 25A/cm², UHP Graphite Electrodes stand out in the market. This high current-carrying capacity accelerates melting speeds and shortens furnace cycles, significantly enhancing productivity. The minimal ash content of ≤0.2% safeguards the smelting process from unwanted impurities, facilitating the production of high-grade steel and alloys.

Exceptional thermal conductivity is a key highlight of UHP Graphite Electrodes. It effectively dissipates heat, reducing thermal stress and prolonging the electrode lifespan. Combined with high mechanical rigidity, these electrodes endure the tough furnace environment, including vibrations and thermal shocks, without compromising integrity.

The advanced multi-layer anti-oxidation coating further fortifies UHP Graphite Electrodes. It acts as a robust shield against high-temperature oxidation, reducing electrode wear and maintenance expenses. Their ultra-low electrical resistivity promotes efficient current flow, optimizing energy consumption and cutting production costs.

Before reaching customers, each UHP Graphite Electrode undergoes rigorous testing. Non-destructive methods detect internal flaws, while dimensional checks ensure a perfect fit in the furnace. These quality control measures reflect our commitment to delivering only the best products.

Datasheet For Ultra-High Performance UHP Graphite Electrodes For Demanding Industrial Furnaces:

Items		Unit	Diameter (mm)
			250-400 mm	Typical Value	450-500 mm	Typical Value	550-600 mm	Typical Value	650-700 mm	Typical Value
			10-16 Inch		18-20 Inch		22-24 Inch		26-28 Inch
Specific Resistance≤	Electrode	μΩ.m	5.5	5.0	5.1	5.0	5.5	5.0	4.8	4.8
	Nipple		4.0	3.5	3.8	3.5	3.5	3.5	3.2	3.2
Bending Strength ≥	Electrode	MPa	11.0		11.0		11.0		11.0
	Nipple		18.0		18.0		20.0		20.0
Young's Modulus ≤	Electrode	GPa	14.0		14.0		14.0		14.0
	Nipple		18.0		18.0		22.0		22.0
Bulk Density	Electrode	g/cm³	1.69	1.75	1.70	1.75	1.72	1.75	1.75	1.75
	Nipple		1.78	1.85	1.82	1.85	1.82	1.85	1.85	1.85
(100℃-600℃) CTE ≤	Electrode	X10 -6/℃	1.5		1.5		1.4		1.4
	Nipple		1.4		1.4		1.2		1.2
Ash Content ≤		%	0.3		0.3		0.3		0.3
Note: Ash content is only for reference.
