Blue Continuous Pre Press Air Belts For Wood Panel Manufacturing

Blue Continuous Pre-press Air Belts for Wood Panel Manufacturing

Pre-press Air Belts use a special silk thread, which is wear-resistant and tensile-resistant and can adapt to any chemical substances introduced in the wood-based panel industry, making the mesh belt have excellent breathability. The antistatic black silk thread makes the mesh belt have good antistatic and anti-sticking properties, effectively preventing fibers from blocking the mesh belt and improving production efficiency. The joints use endless, pin rings, and spiral rings, which can be selected according to the specific use of customers.

Ventilation Belts have a high proportion of warp threads, are highly air permeable and have a very smooth surface. The extremely strong Z-splice.

There are many different called name about ventilation belts, they called Ventilation Belts, Prepress Air Belt, Deaeration Belts, Airing Belt, Air Venting Mesh AND Evacuation Belt, they are same belts used in the pre-press section of the wood-based panel line.

Pre-press Air Belts Advantages:

1. Fast drying speed: The ventilation belt can quickly absorb the moisture on the wood surface, thereby speeding up the drying speed.

2.Uniform drying: The ventilation belt can evenly dry the wood surface, avoiding the problem of uneven local drying.

Environmental protection: The ventilation belt drying method does not require the use of chemical agents and is environmentally friendly.

Low cost: The cost of the ventilation belt drying method is relatively low and suitable for large-scale production.

Pre-press Air Belts Feature:

1.Excellent tracking properties

2.Balanced air permeability

3.Easy cleaning

4.Excellent anti-static properties

5.Good abrasion and chemical resistance

Pre-press Air Belts Specifications:

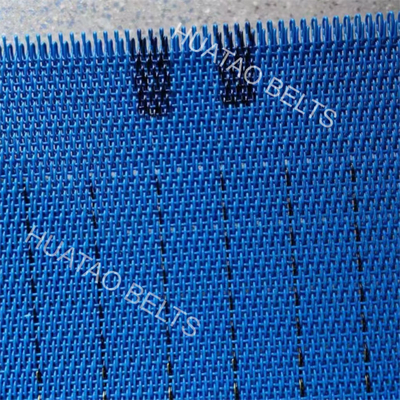

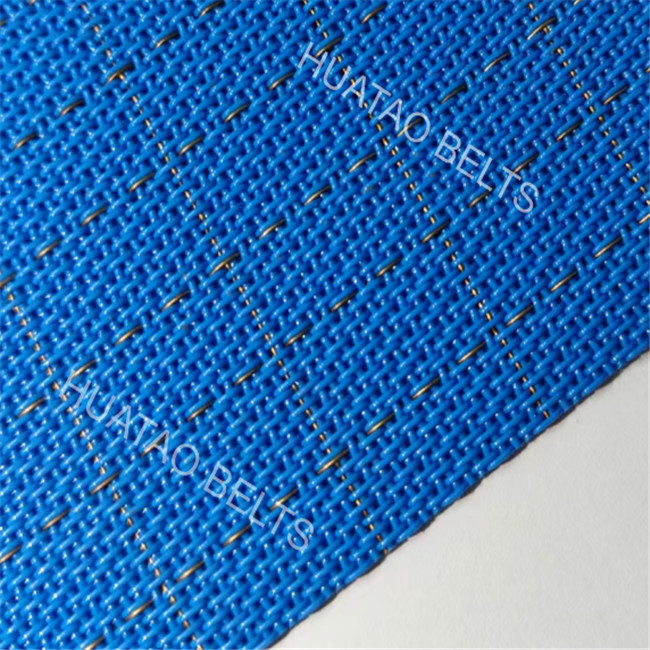

Photos:

Company Introduction:

HUATAO's Belts for wood-based panels has good flexibility, easy deviation correction, firmness and durability.

HUATAO has been focusing on the belts production of wood-based panels for more than 20 years. Through continuous research and development and experiments in recent years, it has been proved that our products are targeted and applicable to all wood fibers, particle boards, medium fibers, oriented strand boards, cardboards and softboards. At present, they have been widely used in equipment such as Simbelcomb, Dieffenbacher, Shanghai Board Machine, Dunhua Yalian, etc. At domestic and abroad market, and are well received by customers.

Based on many years of experience in the wood industry, through understanding the actual working conditions, continuous optimization of the conveyor belt raw material formula and adjustment of the production process, Huatao wood conveyor belts are stable and perform well in the board laying and forming, pre-pressing, sanding, spraying and other sections, providing stable support for wood processing day after day.

Huatao's wood conveyor belts cover a variety of applications including artificial board production, slab sanding, board edge banding and paint spraying. Our experienced sales engineers can provide customers with a full range of product options and can customize personalized selection plans according to your diverse needs.

Our main belts have Pre-press Belt, Ventilation Belt, Spreader Belt, Press Infeed Belt, Bin Bottom Belt, Sanding Belt and etc in the production process of MDF, HDF, PB, OSB, SPB, LVL, and other wood boards.

If you have any needs, please call us for inquiries. We are happy to share HUATAO’s successful experience.

1. The Intermediate belt must pass through the bull nose roller (6 mm thin shaft), and it can still maintain balanced conveying, easy to correct deviation, strong and durable, and high temperature resistant. We use a special monofilament woven surface with a special coating treatment and a spiral interface (instead of hot pressing) to meet the equipment's requirements for mesh belts, which is convenient for installation and greatly shortens downtime, ensuring the continuity, stability and efficiency of modern industrial production.

2. The Pre-heater Belt has good heat dissipation, stability, wear resistance and other characteristics, making the slab forming effect more obvious, and adopts spiral ring and pin ring interface

The Matpre-heater Belt has high temperature resistance and good air permeability, effectively preventing the retention of bubbles in the slab, making the fibers more tightly combined; with unique antistatic effect and reasonable weaving pattern, it effectively improves the fiber support index.

The steam-preheater belt for wood industry plays a vital role in the production process of density board and particle board. When the slab is compressed, water vapor with a certain temperature and pressure is sprayed into the slab through the steam injection hole on the pressing plate. The water vapor rushes from the slab to the core layer, heats the fibers and the flowers, rapidly increases the overall temperature of the slab, promotes the rapid solidification of the adhesive, and improves the production efficiency of the board industry. The steam-spraying mesh belt must effectively ensure the discharge of steam inside the fiber, prevent the generation of bubbles in the slab, and quickly transport and dry the adhesive. The advantages are strong anti-sticking properties, good air permeability, and strong thermal stability.

3. The Ventilation Belt adopts special silk thread, which is wear-resistant and tensile-resistant and can adapt to any chemical substances introduced in the artificial board industry, making the mesh belt have excellent breathability. The anti-static black silk thread makes the mesh belt have good anti-static and anti-sticking properties, effectively preventing the fiber from blocking the mesh belt and improving production efficiency. The joints use endless, pin ring, and spiral ring, which can be selected according to the specific use of customers.

4. The Forming Belt has the characteristics of strong structural stability, easy correction and strong wear resistance, which effectively prevents the deviation of the mesh belt and improves the work efficiency. The joints can use steel card joints, spiral ring joints, etc.

5. Polyester drying belt is professionally used in food drying, non-woven fabric production, sludge drying, organic fertilizer production, feed drying, particle board sawdust drying and other industries. It uses high-quality high-viscosity polyester slice wire, which is formed, woven, sorted and shaped. It has unique high-quality properties:

1) It is acid-resistant, alkali-resistant, wear-resistant, and high-temperature resistant (can be operated for a long time in an environment of 180 degrees), and its service life is several times that of other materials.

2) The mesh surface is flat, the tensile strength is high, the air permeability is good, and the heat transfer efficiency is high, which can save energy and cost for users
