75mm–750mm High Performance Graphite Electrodes In Steel Making

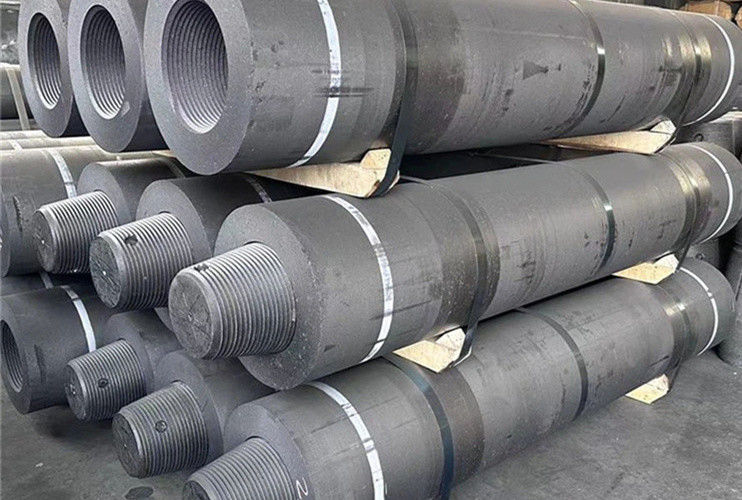

Large Image : 75mm–750mm High Performance Graphite Electrodes In Steel Making

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	CE, ISO
Model Number:	HTGE-006

Payment & Shipping Terms:

Minimum Order Quantity:	20tons
Price:	1450-3000 USD/ton
Packaging Details:	wooden pallet
Delivery Time:	15-30days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	300tons

Contact Now

Detailed Product Description

Product Name:	High-Performance Graphite Electrodes	Grades:	Regular Power (RP), High Power (HP), Ultra-High Power (UHP)
Diameter:	75mm–750mm (Customizable)	Current Load Capacity:	10–40 A/cm² (Grade-Dependent)
Resistivity:	6.5–8.5 μΩ·m (RP), 5.0–6.5 μΩ·m (HP), ≤5.5 μΩ·m (UHP)	Thermal Shock Resistance:	Optimized For Furnace Cycling
Applications:	EAF Steelmaking, Ferroalloy, Silicon/Copper Smelting	Lifespan:	15–30% Longer Than Industry Average
Certifications:	ISO 9001, ISO 14001, RoHS-Compliant	Packaging:	Shockproof Wooden Crates + Moisture Barrier
Highlight:	hp 100mm graphite electrode , hp 600mm graphite electrode , 75mm graphite electrodes in steel making

Premium Quality Graphite Electrodes for Efficient Industrial Melting Processes

Description For 75mm–750mm High-Performance Graphite Electrodes:

Graphite electrodes conduct electricity to generate intense heat (up to 3,500°C) in electric arc furnaces (EAFs), melting scrap metal or raw materials. Choosing between RP, HP, and UHP grades depends on your furnace size, current intensity, and operational demands. Our electrodes are precision-engineered with 99.9% pure needle coke for unmatched performance.

RP vs. HP vs. UHP: Key Differences

Regular Power (RP): Ideal for small to medium furnaces with ≤15 A/cm² current. Cost-effective for low-intensity operations like ferroalloy production.

High Power (HP): Handles 15–25 A/cm², suited for mid-sized EAF steelmaking. Balances durability and energy efficiency.

Ultra-High Power (UHP): Built for >25 A/cm² in large-scale steel mills. Minimizes breakage and oxidation in continuous high-load cycles.

PHYSICAL&CHEMICAL PROPERTLES OF ELECTRODE AND NIPPLE
Item		Unit	Nominal Diameter(mm)
			RP		HP		UHP
			300~450	500~800	350 ~500	550 ~700	350~500		550~750
							Guaranteed	Typical	Guaranteed	Typical
							Guaranteed	Typical	Guaranteed	Typical
Specific Resistance LSR≤	(E) Electrode	μ2*m	9 - 10.5	9 - 10.5	7.5	7.5	6.3	5.0 - 6.0	5.8	4.8 - 5.5
Specific Resistance LSR≤	(N) Nipple	μ2*m	8	8	6.3	6.3	5.3	3.8 - 4.5	4.3	3.5 - 4.1
Bending Strength ≥	(E) Electrode	Mpa	7	6.5	10	8.5	10.5	11.0 - 13.0	10	10.0 - 13.0
Bending Strength ≥	(N) Nipple	Mpa	15	15	17	17	20	20.0 - 25.0	23	24.0 - 30.0
Young's Modulus ≤	(E) Electrode	Gpa	9.3	9.3	14	14	14	8.0 - 12.0	14	7.0 - 10.0
Young's Modulus ≤	(N) Nipple	Gpa	14	14	16	16	20	12.0 - 16.0	22	16.0 - 21.0
Bulk Density	(E) Electrode	g/cm³	1.53	1.52	1.6	1.6	1.66	1.68 - 1.73	1.68	1.69 - 1.73
Bulk Density	(N) Nipple	g/cm³	1.7	1.7	1.72	1.72	1.75	1.76 - 1.82	1.78	1.79 - 1.84
(100℃-600℃) CTE ≤	(E) Electrode	10-6/℃	2.9	2.9	2.4	2.4	1.5	1.3 - 1.5	1.5	1.3 - 1.5
(100℃-600℃) CTE ≤	(N) Nipple	10-6/℃	2.8	2.8	2.2	2.2	1.4	1.0 - 1.3	1.3	1.0 - 1.3
Ash Content ≤		%	0.5	0.5	0.5	0.5	0.5	0.2 - 0.4	0.5	0.2 - 0.4
