P22.5 & P22.45 Hanging Chains for CPS Machine of Particle Board
The continuous press (CPS) is the core equipment of the continuous press wood-based panel production line. The continuous flat press can be subdivided into: frame part, hot press plate and heating part, steel belt and drive part, chain blanket and drive part, cylinder part, deviation adjustment system, hydraulic system, electrical control system and other parts.
Characteristic:
The left &right cumulative error of the chain can reach the reguired accuracy,which ensures the chain doesnt affect the nommal operation of the press.
| Chain No. |
Pitch (mm)
P
|
Roller Diameter |
Inner Width (mm) |
Pins & Chain Plate( mm) |
S
mm
|
|
R1:(max)
mm
|
R2:(max)
mm
|
D 1 |
d |
D2 |
L |
H |
t |
T |
| FB22.45HP |
22.45 |
5.88 |
24.95 |
12.3 |
9.54 |
7.24 |
5.64 |
53.4 |
20.3 |
3 |
4.1 |
37.7 |
Dieffenbacher Continuous Hot Press Accessories
Dieffenbacher provides customers with production line equipment in various press lengths, including 9-feet, 8.5-feet, and 8-feet widths press machines.
Dieffenbacher Roller: φ21 diameter, with lengths varying depending on press width, including 3000mm, 2848mm, and 2700mm. φ21 rollers are primarily made of Cr15 bearing steel; 50CrVA spring steel is also available.
Dieffenbacher schains standard types have two sizes: P22.45 and P22.5 pitch, with two different configurations.
Dieffenbacher blending rod standard size: 240mm x φ7 (6.9 ± tolerance), made of 304 stainless steel. Sikkim copper bushings;
Dieffenbacher Chain lock plate and locking link: Model P22.5 or P22.45;
Applications:
All Dieffenbacher brand conti press machine of MDF, HDF, Particle Board and OSB manufacturing line.
Diefenbach manufacturers mainly provide end customers with production line equipment with press widths of 9 feet, 8.5 feet, 8 feet and other different press lengths.

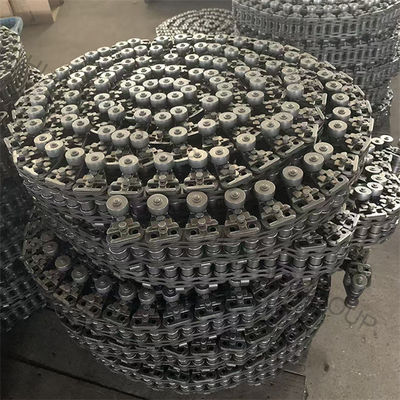

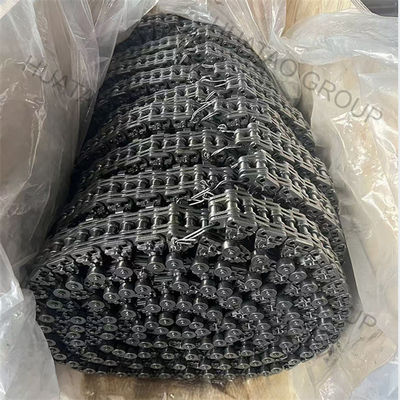

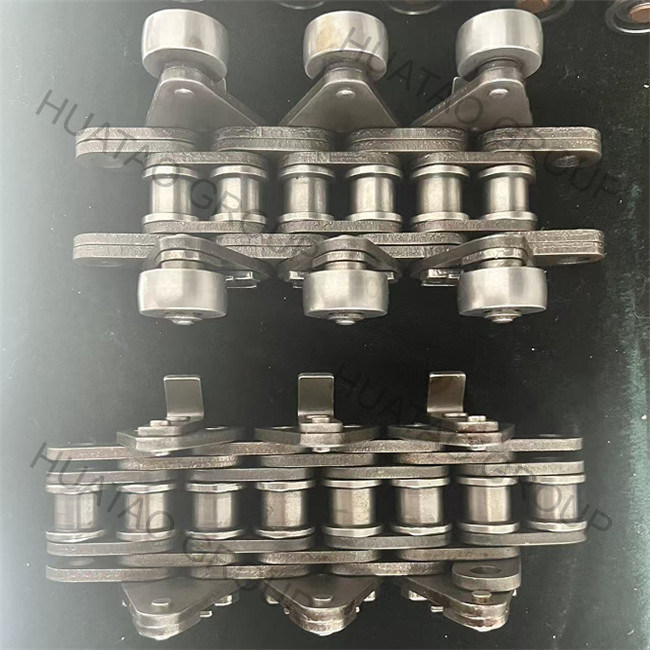

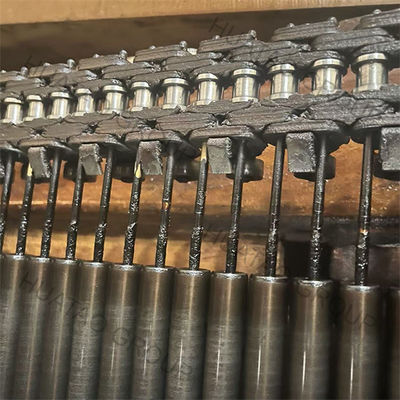

Photos for reference:
HUATAO wood-based panel Machinery Co., Ltd was founded in 2008 and locates in Hebei, China. We are a professional company providing services for sourcing all related products of wood-based panel complete production lines, Included Chips Preparation Section, mat-forming, pre-press, contunious press, handling system, Sanding & CTS, drying system, Electronic control system design of MDF, HDF, Particle Board, OSB, FOSB. Relying on our complete industry Chain and competitive price advantages, we provide customers with superior products, reasonable prices, and on-time services.
Please contact us directly if any interest, thanks.
