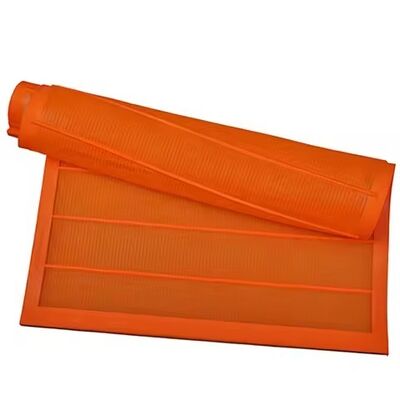

Polyurethane Fine Mesh Screen 0.045mm 1040x700mm High Wear Resistance

Large Image : Polyurethane Fine Mesh Screen 0.045mm 1040x700mm High Wear Resistance

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 200-1000 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	Polyurethane Fine Mesh Screen 0.045mm For High-Purity Silica, Orange, High Wear Resistance	Key Words:	Screen , Fine Mesh, Vibrating Screen, Urethane Screen
Dimensions:	1040mm X 700mm‌ Or OEM	Life Time:	6-12months
Aperture Size:	0.045mm‌ ~8.0mm	Thickness:	5mm
Color:	Orange Or Red Or As Your Request	Application:	Fine Screening‌, Silica Sand Processing, Iron
Durability:	High Wear Resistance‌	Pacakge:	Carton Or Wooden Box
Highlight:	polyurethane fine mesh screen , 0.045mm polyurethane screen , high-purity silica mesh screen

Polyurethane Fine Mesh Screen 0.045mm for High-Purity Silica

Polyurethane Fine Mesh Screen 0.045mm for High-Purity Silica, Orange, High Wear Resistance

PU Fine Mesh Screens, crafted from high-quality polyurethane, excel in precision separation for industries like silica sand processing and gold ore concentration. With mesh sizes as fine as 0.045mm (tolerance ±0.005mm), they deliver accurate classification of ultra-fine particles—critical for producing high-purity materials. Their red or orange color options (customizable on request) aid in visual inspection, while the 1040mm * 700mm standard size fits most vibrating screens, with custom dimensions available.

Product Description

The 0.075mm aperture High-Efficiency Polyurethane Urethane Screens working 6-12 months are designed to withstand the rigorous demands of mining operations. Made from high-quality polyurethane, these screens offer exceptional durability and wear resistance. They are ideal for separating and sizing minerals, aggregates, and other materials in mining and quarry applications.

Specifications

Specification	Value
Material	Polyurethane
Aperture Size	0.045-8.0mm
Dimension Size	1040 * 700mm as regular or OEM
Color	Red or Orange
Durability	High Wear-Resistant
Application	Mining & Quarry
Wear Resistance	3-8 times longer life span

Key Features

These screens boast superior abrasion resistance, outlasting woven metal meshes by 4-10 times, especially in wet sieving applications. The anti-blinding design prevents clogging, even with sticky materials, reducing downtime for cleaning. Equipped with polyurethane or metal hooks, installation is tool-free and takes under 15 minutes per panel. Certified to ISO 9001 and CE standards, they're ideal for both wet and dry screening, from mineral processing to industrial wastewater treatment.

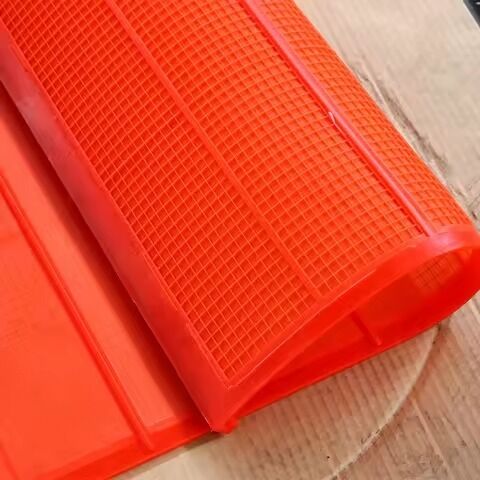

Product Images

Factory Production Process

Material Preparation: High-grade polyurethane raw materials, including pre-polymers and curing agents, are meticulously selected based on abrasion resistance and elasticity requirements. Additives such as UV stabilizers and anti-aging agents are blended to enhance longevity in harsh environments.
Mold Design & Fabrication: Precision CNC-machined molds are crafted from stainless steel or aluminum, incorporating the exact aperture geometry (e.g., 0.045mm wedge-shaped slots). Mold surfaces are polished to a mirror finish to ensure smooth demolding and dimensional accuracy.
Casting & Curing: The liquid polyurethane mixture is vacuum-degassed to eliminate air bubbles. It is then poured into preheated molds and subjected to controlled-temperature curing (80-120°C) in hydraulic presses. This step ensures uniform density and structural integrity. Post-curing thermal treatment further enhances tensile strength and chemical resistance.
Demolding & Trimming: Cured screens are carefully demolded, and excess flash is removed using laser trimming or precision cutting tools. Edge sealing is applied to prevent delamination during high-frequency vibrations.
Quality Control: Aperture Verification: Laser scanners measure aperture sizes (e.g., 0.045mm ±0.005mm) and open area ratios (35%-40%). Durability Testing: Simulated high-frequency vibration cycles (up to 3,600 RPM) assess fatigue resistance. Material Certification: Shore hardness (85-95A), tear strength, and chemical compatibility are validated per ISO 9001 standards.
Surface Treatment (Optional): Anti-static coatings or custom-colored finishes are applied for specific industrial requirements, such as explosive environments or visual inspection needs.
Packaging & Logistics: Screens are packed in moisture-proof, shock-absorbent materials and labeled for traceability. Custom sizes and OEM branding are accommodated seamlessly.

HUATAO Hot-Selling Polyurethane Products

Urethane Screen	Tufflex Screen
Polyurethane Dewatering Screen Mesh	WS 85 Modular Screen
Polyurethane Screen Panels	Rotex Replacement Screens
Rubber Screen Panel	Vibrating Screen Mesh
Self cleaning Wire Mesh	Shale Shaker Screen
