Vibrating Screen Polyurethane Modular Screen WS85 Structural Sieve

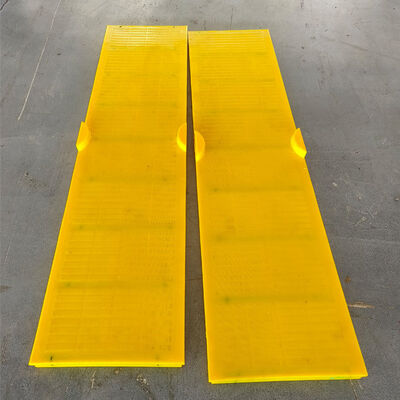

Large Image : Vibrating Screen Polyurethane Modular Screen WS85 Structural Sieve

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 20-50 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union ,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	WS85 Structural Sieve Plate For Vibrating Screen (Essential Component For Efficient Screening)	Key Words:	PU Screen Panel, Dewatering Screen Panel,WS85
Thickness:	20mm,30mm,40mm	Material:	Polyurethane(PU)
Color:	Orange , Red , Green , Yellow	Application:	Quarry Screening‌
Selling Unit:	Single Item	Pacakge:	Carton Or Wooden Box
Highlight:	polyurethane modular screen WS85 , WS85 Trommel Screen , PU Trommel Screen

WS85 Structural Sieve Plate for Vibrating Screen (Essential Component for Efficient Screening)

1)Description‌ of WS85 Structural Sieve Plate for Vibrating Screen (Essential Component for Efficient Screening)

WS85 PU Trommel Screen Drum Segments‌

Curved panels (R=600/900/1200mm) for rotary screens. Interlocking dovetail joints eliminate bolt corrosion. 500% elongation at break withstands oversized rock impacts. UV-resistant formula for outdoor stockpiles. 24-hr sample service.

WS85 Thermal Insulation Screen Panels‌

Unique closed-cell structure reduces heat transfer in cement/kiln feed screening. Operating range: -40°C to 120°C. Reduces dust emissions by 85% through static-dissipative formulation. REACH/ROHS compliant.

Complete solution includes:

Primary screen (10mm apertures, steel backing)
Secondary mesh (3mm slots, tensioned)
Mounting rails (304 stainless steel)
Ideal for 3-stage granite/limestone grading. Reduces blinding by 67% through differential elasticity layers.

2) Key Features & Benefits of WS85 Structural Sieve Plate for Vibrating Screen (Essential Component for Efficient Screening)

✅ Durability:	8–10x lifespan vs. steel, anti-abrasion, tear-resistant.
✅ Efficiency:	Self-cleaning, anti-clogging, 30% energy saving.
✅ Customization:	Aperture sizes (0.1–170mm), shapes, modular compatibility.
✅ Certified:	Flame-retardant, non-toxic, ISO-compliant.

3) Specification of WS85 Structural Sieve Plate for Vibrating Screen (Essential Component for Efficient Screening)

Material	steel frame and polyurethane surface
Feature	WS85,Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening size	Slot Width 0.1mm – 2.5mm
Screen Width	305mm, 500mm and 515mm, others can be designed.
Screen length	305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed.
Connection type	WS85
Application	* Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste.

4) Images of Polyurethane Dewatering Screen Panel include:

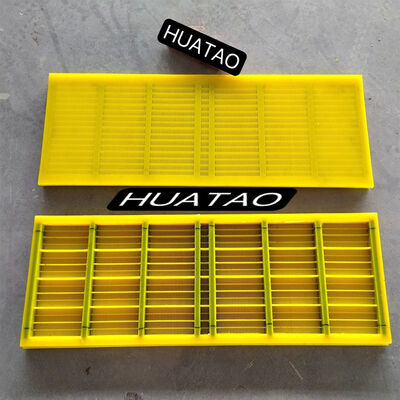

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :

Vibrating Screen Polyurethane Modular Screen WS85 Structural Sieve 0

5) Working Processing of Polyurethane Dewatering Screen Panel

Vibrating Screen Polyurethane Modular Screen WS85 Structural Sieve 4

6). Packaging & Logistics: Wooden box package.

Vibrating Screen Polyurethane Modular Screen WS85 Structural Sieve 5

7) Application of Polyurethane Dewatering Screen Panel

Vibrating Screen Polyurethane Modular Screen WS85 Structural Sieve 6

HUATAO Hot-Selling Polyurethane Product List as below:

Urethane Screen	Tufflex Screen
Polyurethane Dewatering Screen Mesh	WS 85 Modular Screen
Polyurethane Screen Panels	Rotex Replacement Screens
Rubber Screen Panel	Vibrating Screen Mesh
Self cleaning Wire Mesh	Shale Shaker Screen

Vibrating Screen Polyurethane Modular Screen WS85 Structural Sieve 7
