316SS Grommet Screen Replacement for Rotex Separators with PU Strip

Large Image : 316SS Grommet Screen Replacement for Rotex Separators with PU Strip

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 100-200 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	316SS Grommet Screen Replacement Rotex Separators With PUR Strip	Key Words:	Wire Screen Panel, Industrial Wire Mesh,Grommet Screen
Raw Material:	SS304,SS316,SS316L	Application:	Material Screening‌
Durability:	High Wear Resistance‌	Pacakge:	Carton Or Wooden Box
Highlight:	316SS Rotex grommet screen , Rotex separator screen replacement , PU strip grommet screen

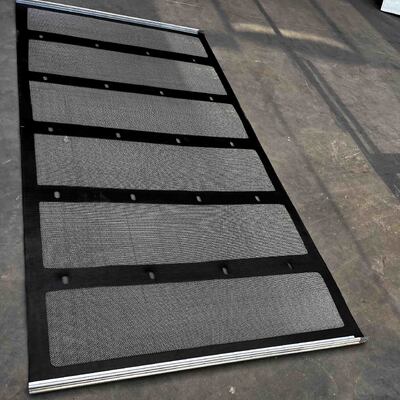

316SS Grommet Screen Replacement for Rotex Separators with PU Strip

Product Description

HUATAO's 316SS Grommet screen replacements are designed for Rotex® separators used in mineral screening applications. These wire screens feature secure eyelet attachments for easy installation and a perfect fit. The edges are reinforced with durable PU strips or 180-degree folded mesh, with stainless steel grommets for enhanced durability.

Our rectangular mesh design offers up to 30% larger open screening area compared to standard meshes, increasing machine capacity without sacrificing screen life. Available for all common cut sizes, these screens are versatile for various mineral separation needs.

Key Parameters

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
41	230	0.0014	74	46

Edge Types Available

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

180° Folded Edge Grommet Screen

Production Process

Packaging & Logistics

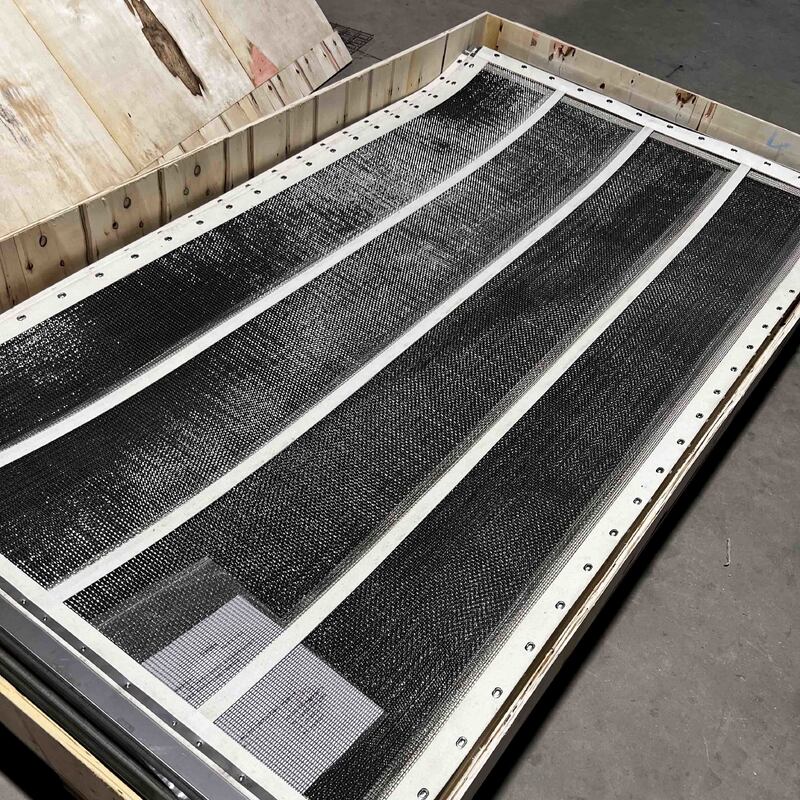

Wooden box packaging ensures safe transportation and storage.

Applications

HUATAO Hot-Selling Polyurethane Products

Urethane Screen	Tufflex Screen
Polyurethane Dewatering Screen Mesh	WS 85 Modular Screen
Polyurethane Screen Panels	Rotex Replacement Screens
Rubber Screen Panel	Vibrating Screen Mesh
Self cleaning Wire Mesh	Shale Shaker Screen
