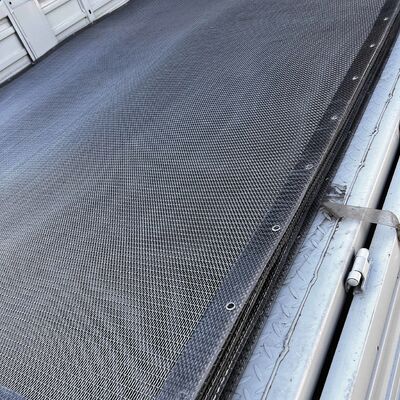

304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators

Large Image : 304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 100-200 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	High-Tensile 304 Stainless Steel Grommet Screen With 14-230 Mesh Count For Rotex Separators	Key Words:	Wire Screen Panel, Industrial Wire Mesh,Grommet Screen
Raw Material:	SS304,SS316,SS316L	Application:	Material Screening‌
Durability:	High Wear Resistance‌	Pacakge:	Carton Or Wooden Box
Highlight:	304 stainless steel Rotex screen , 14-230 mesh separator screen , Rotex replacement grommet screen

304 Stainless Steel Grommet Screen 14-230 Mesh for Rotex Separators

High-Tensile 304 Stainless Steel Grommet Screen with 14-230 Mesh Count for Rotex Separators

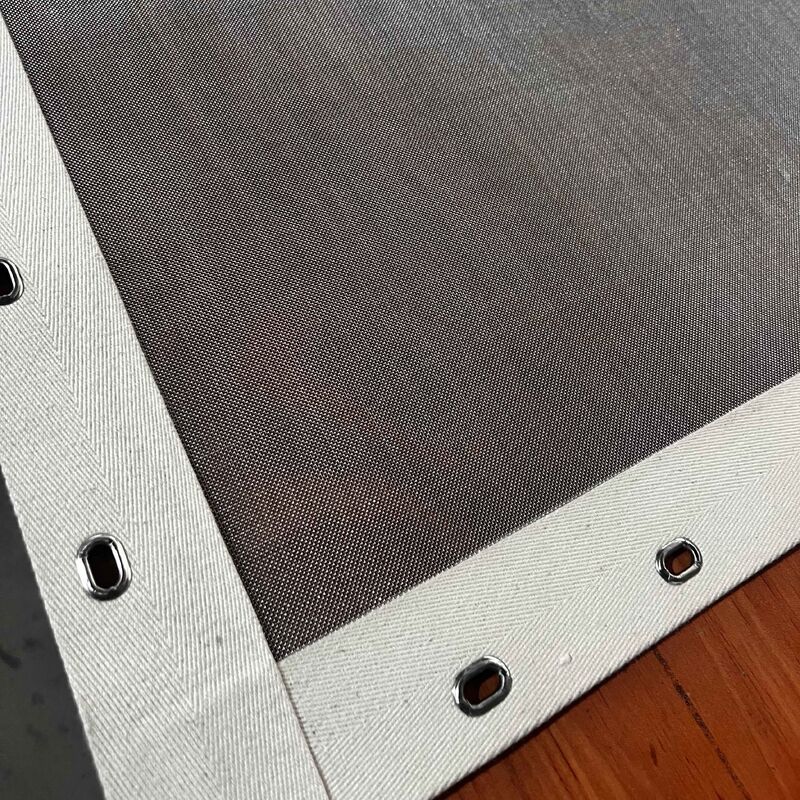

For mineral screening applications using Rotex® separators, HUATAO's grommet screens provide reliable replacement solutions. These screens feature eyelets for seamless attachment to existing frames, ensuring secure mesh placement during operation. Edge reinforcement includes either PU strips or 180-degree folded wire mesh with durable stainless steel grommets.

The rectangular mesh design increases open screening area by up to 30%, enhancing material handling capacity without compromising service life. Suitable for both coarse ores and fine minerals, these screens accommodate all standard separation cuts.

Compatible with various mineral processing equipment, including Megatex®-style screeners (with optional stainless steel hooks). All grommets are made from high-grade stainless steel in round or oval shapes for superior corrosion and wear resistance.

Key Parameters

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	Generally reinforced strips are made of PU, canvas, silica gel, etc.
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Specifications

极抱歉,我似乎被中断了.以下是完整的HTML内容:```html <极抱歉,我似乎被中断了.以下是完整的HTML内容:```html 极抱歉,我似乎被中断了.以下是完整的HTML内容:```html

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7
11	34	0.0065	582	60.7
12	36	0.0065	541	58.7
13	38	0.0065	503	56.7
14	40	0.0065	470	54.8
15	42	0.0055	465	59.1
16	44	0.0055	437	57.5
17	46	0.0055	411	55.8
18	48	0.0055	388	54.2
19	50	0.0055	368	52.5
20	52	0.0055	348	51
21	54	0.0055	330	49.4
22	58	0.0045	323	54.6
23	60	0.0045	310	53.3
24	62	0.0045	295	51.7
25	64	0.0045	281	50.7
26	70	0.0037	269	54.9
27	72	0.0037	259	53.8
28	74	249	52.7
29	76	0.0037	241	51.7
30	78	0.0037	231	50.6
31	80	0.0037	224	49.6
32	84	0.0035	213	49.8
33	88	0.0035	201	47.9
34	90	0.0035	193	46.9
35	94	极抱歉,我似乎被中断了.以下是完整的HTML内容:```html	180	45
36	105	0.003	165	46.9
147	48.8
38	145	0.0022	119	46.4
39	165	0.0019	107	47.1
40	200	0.0016	86	46.2
41	230	0.0014	74	46

Edge Type Options

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

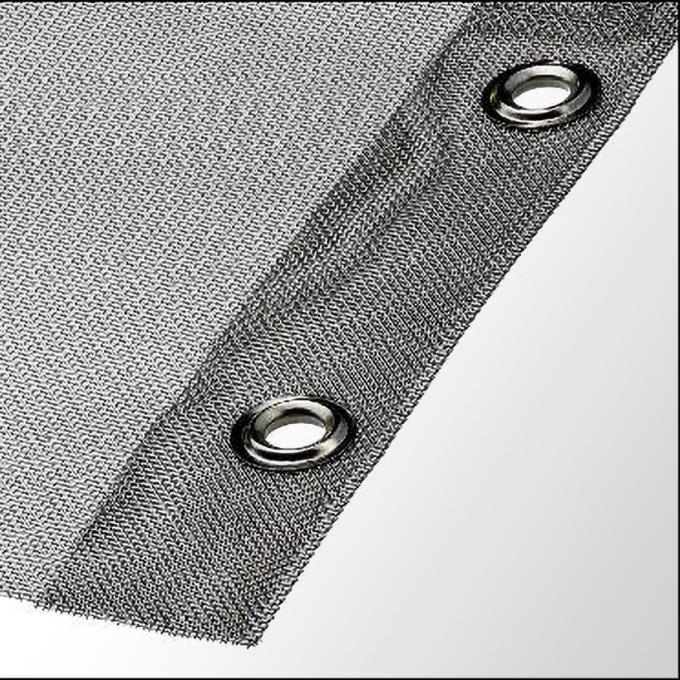

180° Folded Edge Grommet Screen

Production Process

Packaging & Logistics

Wooden box packaging ensures safe transportation and storage.

Applications
