SS316 UV-Resistant Grommet Screen for Rotex 14-230 Mesh

Large Image : SS316 UV-Resistant Grommet Screen for Rotex 14-230 Mesh

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 100-200 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	SS316 UV-Resistant Tensile Bolt Cloth With White PUR Strip For Outdoor Screening Used For Rotex Separators	Key Words:	Wire Screen Panel, Industrial Wire Mesh,Grommet Screen
Raw Material:	SS304,SS316,SS316L	Application:	Material Screening‌
Durability:	High Wear Resistance‌	Pacakge:	Carton Or Wooden Box
Highlight:	SS316 Rotex separator screen , UV-resistant tensile bolt cloth , Rotex replacement wire mesh

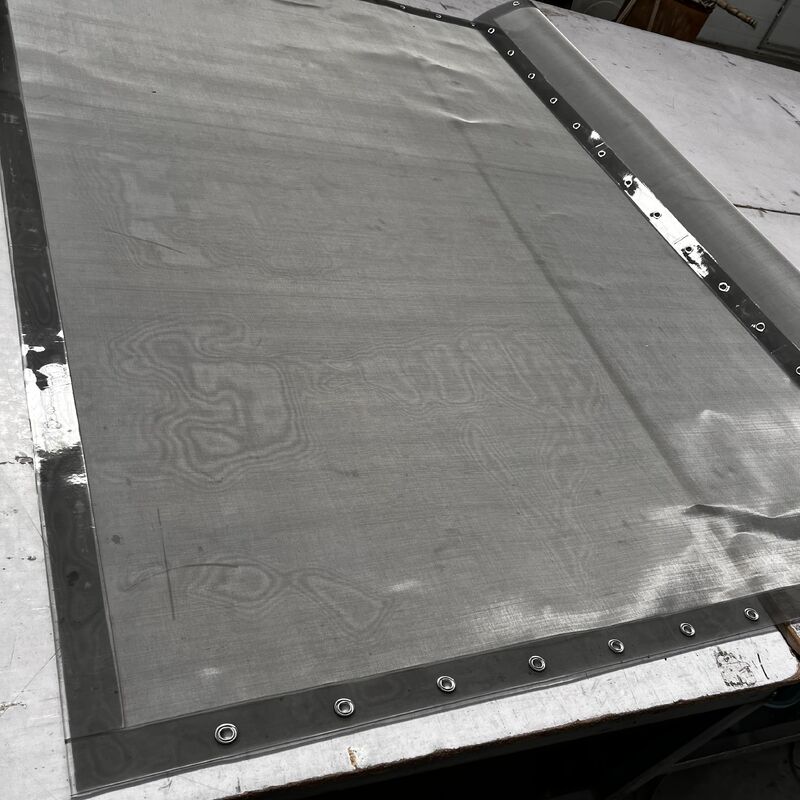

SS316 UV-Resistant Tensile Bolt Cloth for Rotex Separators

Premium Grommet Screens for Mineral Screening

HUATAO's SS316 UV-Resistant Tensile Bolt Cloth with White PUR Strip is engineered for outdoor screening applications in Rotex® separators. These high-performance grommet screens feature reinforced edges with durable PU strips or 180-degree folded mesh, secured with stainless steel grommets for exceptional durability.

Key Advantages

Rectangular mesh design provides up to 30% larger open screening area than traditional meshes
Enhanced material flow increases machine capacity without compromising screen lifespan
Compatible with all mineral processing machine types and sizes
Optional stainless steel hook available for Megatex® screeners
High-quality stainless steel grommets withstand harsh mining conditions

Technical Specifications

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, or silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Mesh Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
4	20	0.009	1040	67.2
5	22	0.0075	964	69.7
6	24	0.0075	868	67.2
7	26	0.0075	786	64.8
8	28	0.0075	716	62.4
9	30	0.0065	681	64.8
10	32	0.0065	630	62.7

Edge Type Options

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

180° Folded Edge Grommet Screen

Production Process

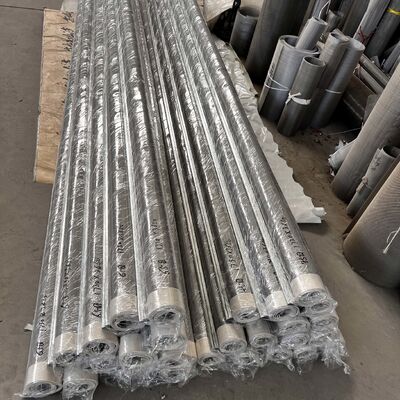

Packaging & Logistics

Wooden box packaging ensures safe transportation and storage.

Industrial Applications

HUATAO Polyurethane Product Line

Urethane Screen	Tufflex Screen
Polyurethane Dewatering Screen Mesh	WS 85 Modular Screen
Polyurethane Screen Panels	Rotex Replacement Screens
Rubber Screen Panel	Vibrating Screen Mesh
Self cleaning Wire Mesh	Shale Shaker Screen
