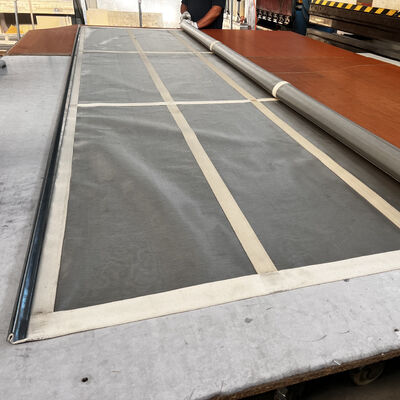

Rotex Replacement Grommet Screen with 0.0014-0.0090 Inch Wire Diameter and 46%-76.4% Open Area for Mining Separation

Large Image : Rotex Replacement Grommet Screen with 0.0014-0.0090 Inch Wire Diameter and 46%-76.4% Open Area for Mining Separation

Product Details:

Place of Origin:	China
Brand Name:	CHINA HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD 100-200 per pcs
Packaging Details:	Wooden Box or Carton Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	Rotex Compatible Grommet Screen 304 Stainless Steel Canvas Edge Mining Separation	Key Words:	Wire Screen Panel, Industrial Wire Mesh,Grommet Screen
Raw Material:	SS304,SS316,SS316L	Application:	Material Screening‌
Durability:	High Wear Resistance‌	Pacakge:	Carton Or Wooden Box
Highlight:	0.0014-0.0090 Inch Wire Diameter Grommet Screen , 46%-76.4% Open Area Rotex Replacement Screen , Canvas Edge Wire Mesh Screen

Rotex Compatible Grommet Screen 304 Stainless Steel Canvas Edge Mining Separation

For industries demanding both durability and precision, HUATAO Grommet Screens deliver unmatched performance. Designed to work flawlessly with Rotex® separators, these screens are built from high-quality stainless steel variants (304, 304L, 316, 316L), ensuring they hold up against corrosive substances and harsh chemicals—critical for mining, chemical, and even food processing sectors.

Key Features

Edge reinforcement options: black PU strips for industrial use, transparent FDA/EU-certified PU strips for food contact, or folded wire edges for high-temperature applications (80°C+)
Customizable mesh configurations with 14-230 mesh counts and wire diameters from 0.0014-0.0090 inch
Open areas ranging 46%-76.4% for optimal material separation
Pre-installed grommets for quick screen replacement and minimal downtime
Durable construction ensures extended service life and excellent long-term value

Technical Specifications

Parameter	Specification
Mesh Material	Stainless Steel 304, 304L, 316, 316L
Edge material	PU, canvas, silica gel reinforced strips
Mesh type	Woven mesh
Mesh count	14-230
Wire diameter	0.0014-0.0090 inch
Open area	46.0%-76.4%

Detailed Mesh Specifications

Item	Mesh Size	Wire Size (in.)	Microns	Open Area %
1	14	0.009	1580	76.4
2	16	0.009	1360	73.3
3	18	0.009	1180	70.2
41	230	0.0014	74	46

Edge Type Options

Black PU-Strip Grommet Screen

Transparent PU-Strip Grommet Screen

180° Folded Edge Grommet Screen

Production Process

Grommet Screen production process

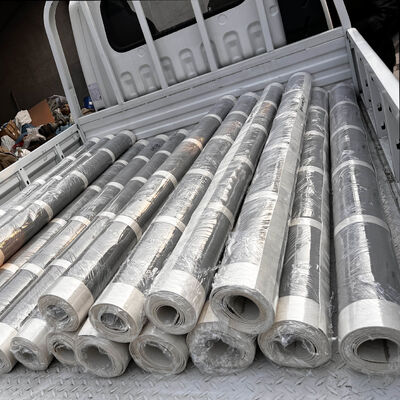

Packaging & Logistics

Wooden box package for secure shipping and handling.

Grommet Screen packaging example

Grommet Screen packaging example

Applications

Grommet Screen in use

HUATAO Hot-Selling Polyurethane Products

Product Type	Product Type
Urethane Screen	Tufflex Screen
Polyurethane Dewatering Screen Mesh	WS 85 Modular Screen
Polyurethane Screen Panels	Rotex Replacement Screens
Rubber Screen Panel	Vibrating Screen Mesh
Self cleaning Wire Mesh	Shale Shaker Screen

HUATAO polyurethane products
