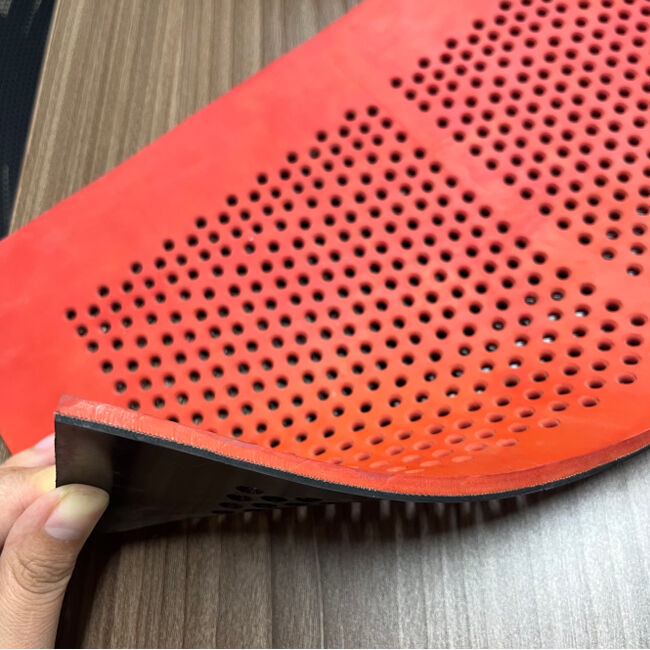

1.25m Wear-Resistant Rubber Screen Panel with 4-12mm Round Holes

Large Image : 1.25m Wear-Resistant Rubber Screen Panel with 4-12mm Round Holes

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Certification:	ISO9001,CE,SGS etc.
Model Number:	HTR001

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	10-300 USD per piece
Packaging Details:	Wooden box
Delivery Time:	7-10 dyays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	3000 pcs per month

Contact Now

Detailed Product Description

Product Name:	1.25m Width Wear-Resistant Imported Rubber Screen Panel With Round 4-12mm Holes	Keywords:	Rubber Screen Panel,Vibrating Screen Panel
Material:	High-wear Rubber + Hook	Type:	Anti -blocking Screen Mesh
Thickness:	6/8/10/12/14/16mm	Hole Type:	Square, Rectangle, Oval Round, Round Etc.
Size:	As Client Request	Applications:	Screening\separation\sorting\sieving
Highlight:	1.25m rubber screen panel , wear-resistant rubber screen , round hole rubber screen panel

1.25m Wear-Resistant Rubber Screen Panel with 4-12mm Round Holes

Premium Wear-Resistant Rubber Screen Panel

Our 1.25m width rubber screen panels feature imported Thai rubber for exceptional durability and performance. The advanced composite rubber formulation delivers superior wear resistance and structural stability, making them suitable for all vibrating screen models in both dry and wet screening applications.

Key Features & Benefits

5-10x longer lifespan than metal meshes and 2x more durable than polyurethane screens
Dual-texture design with softer red portion for wear resistance and firmer black section for stability
Available in standard widths of 1m and 1.25m with customizable lengths
Easy hook installation system for quick replacement
Standard thickness of 6mm (8mm custom option available)
Round hole sizes from 4-12mm (rectangular holes available on request)
Excellent self-cleaning properties reduce clogging

Technical Specifications

Feature	Specification
Material	Rubber
Installation Type	Hook
Thickness	6/8/10/12/14/16mm (customizable)
Hole Size	Square, rectangle, oval round, Round etc.
Size	Customizable to client requirements
Color	Red-Black
Application	Screening, separation, sorting, sieving

Product Images

Front Face

Black Face

Working Process

Packaging & Logistics

Why Choose HUATAO?

Our engineering team customizes rubber screens for specific material characteristics, with ISO 14001-certified production. Standard configurations ship in 25 days, with expedited options available. Our rigorous quality control exceeds industry standards, ensuring reliable performance in your processing plant.
