Automatic Scraper type self cleaning filter

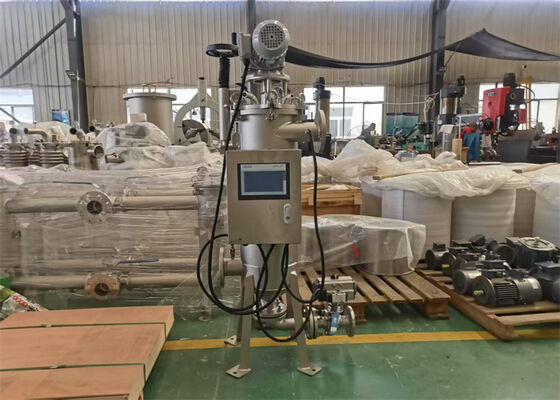

Large Image : Automatic Scraper type self cleaning filter

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO,CE,SGS
Model Number:	HT004

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD4000-15000 PER SET
Packaging Details:	WOODEN CASE
Delivery Time:	20-50 DAYS
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500Sets/Month

Contact Now

Detailed Product Description

Type:	Inner Scraper	Filter Inner Diameter:	450mm Or Customed
Filter Body Thickness:	6mm	Filtration Accuracy Um:	Min. 50micron
Scraper Material:	PTFE	Warranty Period:	1 Year
Filter Body Material:	SS304	Cartridge:	Wedge Wire Screen With SS304 Material
Inlet/Outlet Diameter:	DN50/DN100/Customized	Filter Surface:	Mirror Polish/Sand Blasting
Motor And Reducer:	Italy Siti Brand
Highlight:	automatic scraper self cleaning filter , industrial scraper type filter , self cleaning filter with warranty

SS304 Automatic Inner Scraper Self-Cleaning Filter

Introduction

Our HUATAO's scraper type self cleaning filter can automatically removes particles from the inner surface of filter cartridge through efficient mechanical scraping. The scraper are made of PTFE and equipped with high-precision springs for accurate extension/retraction, ensuring close contact with the filter mesh surface to effectively remove contaminants.

Working Principle

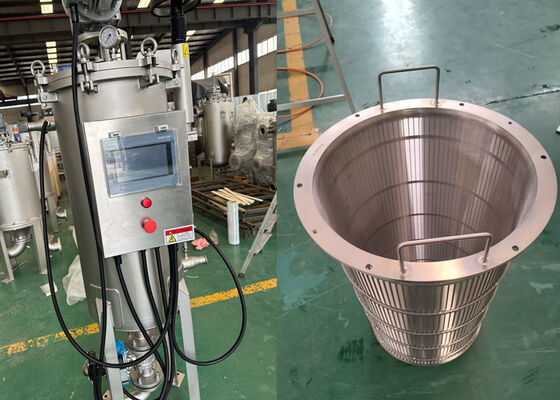

Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continously. Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.
The impurity accumulated during rotation is deposited into the bottom of the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Parameters

Filter Model	Filter Inner Dia.	Filter Height	Thickness	Filter Area	Filtration Precision
HT-D219	250mm	1000	3	0.2	50microns
HT-D273	300mm	1450mm	4mm	0.5
HT-D325	350mm	1600mm	4mm	0.6
HT-D400	450mm	1700mm	6mm	0.7
HT-D450	500mm	1750mm	6mm	0.9
HT-D550	600mm	1850mm	6mm	2.0
HT-D800	850mm	2000mm	6mm	2.5

Feature

1. High filtration accuracy, the minimum accuracy can reach 20 microns.
2. No disposable consumables are produced, saving consumable costs and environmental protection treatment costs.
3. High degree of automation, no need for manual cleaning, dual control of pressure difference and time, to achieve full automation of cleaning
4. Closed filtration to prevent leakage of hazardous materials, which is conducive to safe and efficient production.

Application Liquid
wax,kerosene,monomer,polymer,water,citric acid,fermentationliquid,protein,soap,sorbitol,wetendadditive,binder, ink,pigment,pant,

resin, rubber, ethanol,Chocolate,candy,cooking oil, high temperature oil, Juice,coolant,diesel oil,
