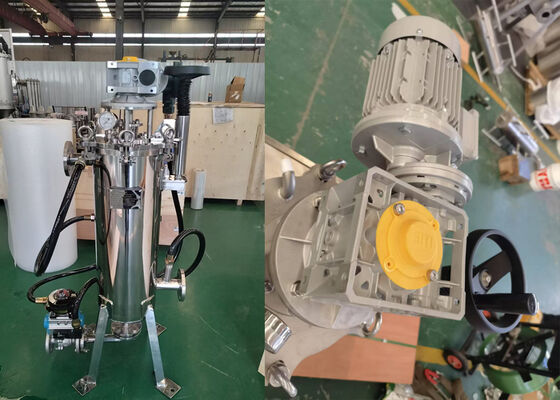

Scraper-Type Automatic Self-Cleaning Filters & Strainers
Introduction For Scraper-Type Automatic Self-Cleaning Filters & Strainers

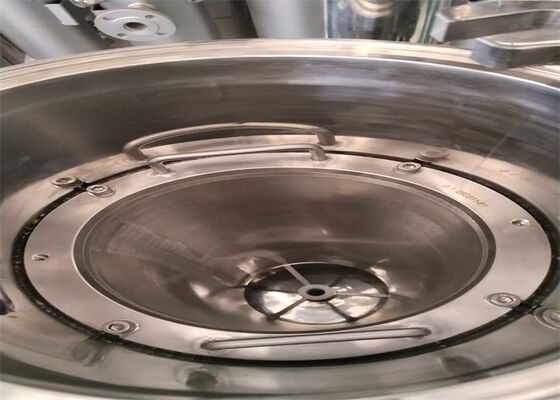

Filtration starts when liquid enters the filter through its inlet. Throughout the filtering cycle, impurities present in the water collect on the stainless steel screen, forming a buildup on the inner side. This self-cleaning filter offers flexible operation options, including full automation, semi-automation, and manual operation.
Working Principle For Scraper-Type Automatic Self-Cleaning Filters & Strainers
1)Automatic Cleaning —Mode 1 (Timed Cycle)
Motor:Operates and stops according to a preset schedule.When running,the motor drives the shaft to rotate,allowing the scraper to remove impurities accumulated on the filter cartridge .After the set running time is reached,the motor stops working.After the preset stopping time is reached,the motor starts running again .This cycle continues automatically.
Drain Valve:Opens and closes according to preset schedule; The loop control is identical to the motor loop control.
2)Automatic Cleaning —Mode 2 (Differential Pressure Start)
The device is equipped with pressure sensors at both the inlet and outlet to monitor the inlet pressure and outlet pressure.When the pressure difference between the inlet and outlet reaches the preset value,the device automatically transitions from the circulation state of Mode 1 to this mode;the motor activates, and the discharge process begins immediately.
3)Manual Cleaning:
The operating status of the motor and drain valve is controlled entirely via manual switches by worker.
Technical Parameters For Scraper-Type Automatic Self-Cleaning Filters & Strainers
| Filter Model |
Filter Inner Dia. |
Filter Height |
Thickness |
Filter Area |
Filtration Precision |
| HT-D219 |
250mm |
1000 |
3 |
0.2 |
50microns |
| HT-D273 |
300mm |
1450mm |
4mm |
0.5 |
| HT-D325 |
350mm |
1600mm |
4mm |
0.6 |
| HT-D400 |
450mm |
1700mm |
6mm |
0.7 |
| HT-D450 |
500mm |
1750mm |
6mm |
0.9 |
| HT-D550 |
600mm |
1850mm |
6mm |
2.0 |
| HT-D800 |
850mm |
2000mm |
6mm |
2.5 |
Feature For Scraper-Type Automatic Self-Cleaning Filters & Strainers
1. High filtration accuracy, the minimum accuracy can reach 20 microns.
2. No disposable consumables are produced, saving consumable costs and environmental protection treatment costs.
3. High degree of automation, no need for manual cleaning, dual control of pressure difference and time, to achieve full automation of cleaning
4. Closed filtration to prevent leakage of hazardous materials, which is conducive to safe and efficient production.
Application Industry For Scraper-Type Automatic Self-Cleaning Filters & Strainers
water treatment, paper making,petrochemical, sanitary, paint, ink,grease, food and beverage, etc.
