Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Synthetic | Thickness: | 9±0.3mm |
|---|---|---|---|
| Width Range: | 1000mm - 3200mm | Heat Resistance : | 220℃,the Kevlar Edge Upto 350℃ |
| Weight : | 7.5kg/m2 | Length: | 80m |
| Seam: | Clipper Fastener With Rubber Coated/Hot Jaw Lacing | ||
| High Light: | cotton conveyor belt,needle belt |
||
Production Description:

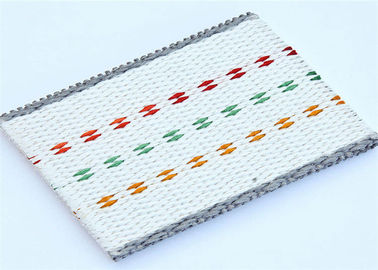

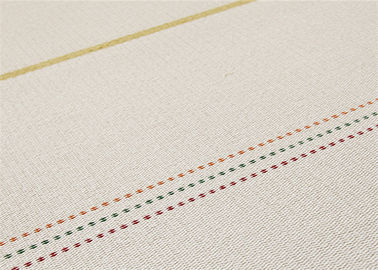

High speed Corrugator Belt with High Absorption Permeability 9mm This type of belt has very good water absorption ability to ensure the corrugated board fast drying in the production. And could help to save more energy cost.we also supply : needle corrugator belt , woven corrugator belt ,single facer traction belt,corrugating rolls
Suitable as top belt with high speed (above 150m/min ) production
Heat and Super tear resistance
Quick absorption and emission of heat
Particularly for frequent changes of board width
Suitable for BHS/Fosber/Agnati/TCY and other brand corrugators
Corrugartor Belt Specification
| Product | Hydrophilic Woven Corrugator Belt |
| Thickness | 9mm |
| Width range | 1000mm - 3200mm |
| Length | 80 meters |
| Heat-resistance | 240℃ (the kevlar edge upto 350℃) |
| Tensile strength | 70Mpa |
| Coefficient of friction | ≥ 0.40µ |
| Weight per unit | (7.5±0.3)kg/㎡ |
| Air-permeability 40mm water Column | 2.1m³/㎡ min |
| Seam | Hot JAW lacing/Clipper with rubber coated |
| Edge | 100mm or 200mm inwoven aramid edge reinforcement (kevlar) |
| Suitable position | Top belt |
|
Used on all corrugators high tearing resistance Long life time running High abrasion resistance Moisture absorption Heat resistance Low noise |
|
Corrugator Belt Seam
Model1:Fastener Clipper With Rubber Coated
Model2:Hot JAW Lacing
Corrugator Belts Package
Type-I: Waterproof film+Dampblanket+Plasticbag+pallet
Type-II: Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.
Why Choose Us ?
Our team of senior engineers can organize the best commodity source for you. By supplying the best Chinese products, Professional design and responsible attitude on service,we devote to creating our unique brand "HUATAO" in global. Since the establishment, " HUATAO " products have been supplied to more than 20 countries and set up the agencies. And our products and service have been recognized and trusted by the end users all the way. We believe, once we have the cooperation, "HUATAO" will be your most reliable partners in your road to success. Because of trust , business will be simple.
