| Color: | White | Material: | Nano Silica Aerogel |
|---|---|---|---|
| Thickness: | 3mm,6mm,10mm | Width: | 1500 Or As Request |
| Length: | Request | Use Temperature: | -200℃ - +1000 ℃ |
| Highlight: | aspen aerogel spaceloft,silica aerogel blanket |
||

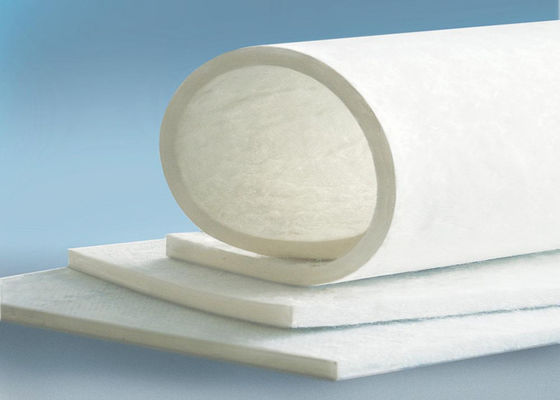

Aerogel Insulation Thermal Insulation Blanket Soundproof Silica Aerogel
DESCRITION
Aerogel Insulation Blanket is engineered to provide optimal thermal performance and value at service temperatures up to 650°C (1200°F). With its extremely low thermal conductivity, Aerogel Insulation Blanket is up to 75% thinner than competing insulation materials. This makes it ideal for installation in congested areas or near mechanical clashes, increasing both plant safety and efficiency. Reduced insulation thicknesses also supports faster, easier application-saving time and expense.
Aerogel Insulation Blanket is tough and durable, delivering consistent performance without cracking, sagging, or settling. It can be re-used after maintenance or inspection, minimizing the time and expense required to stage replacement insulation. Aerogel Insulation Blanket is ideal for use in the fabrication of removable insulation pads. It maintains its shape and location even after vibration or exposure to high temperatures. As with all aerogel products, Aerogel Insulation Blanket is hydrophobic and breathable, resisting liquid water and avoiding the damaging effects of wet insulation. These unique characteristics combine to minimize heat loss and provide the ultimate protection for process units and high pressure steam pipes.
Aerogel Insulation Blanket aerogel insulation is designed to provide long-term performance for the ultimate in safety, process efficiency, and stability, in the power generation, refining, and chemical processing industries.
SPECIFICATION
| Model | HTAB-3 | HTAB-6 | HTAB-10 | |
| Thickness(mm) | 3 | 6 | 10 | |
| Width(mm) | 1400/1500(customizable) | |||
| Color | White | |||
| Permitted useful temperature range(°C) | -200~650 | -200~650 | Fiberglass composite: -200~650 Ceramic fiber composite: 600~1000 |
|
| Density(kg/m³) | 200±20 | 200±20 | 200±20 | |
| Linear expansivity | 4.2×10-6 | |||
| Dimensional stability(max) | 1% | Test method GB/T 8811-2008 | ||
| Compressive property | (min),kpa,@10% | 60 | Test method GB/T 13480-2014 | |
| (min),kpa,@25% | 120 | Test method GB/T 13480-2014 | ||
| Burning behavior | A1 | Test method GB/T 20285-2006 | ||
| The smoke performance level | SR-2 | |||
| Drip content level | ST-2 | |||
| Smoke toxicity of the FED's value,(max) | 0.1 | |||
| Corrosion resistance | pass | Test method GB/T 3810.1-2006 | ||
| Hydrophobicity,(%) | >99.8 | Test method GB/T 10299-2011 | ||
| Tensile strength(min),(kpa) | Fiberglass composite: 100 Ceramic fiber composite: 80 |
Test method GB/T 17911-2011 | ||
| Remarks : Silica aerogel fiberglass and ceramic fiber technical parameters | ||||
If you have any question or demands,kindly contact our prefessional team,we will give you the best solution according to your machine,operation temperature and our rich production experience.
ADVANTAGE
Optimized thermal conductivity in high temperature service
Faster application, especially on large-bore piping and vessels
Addresses tight, hard-to-insulate spaces with outstanding thermal efficiency
Flexible blanket material won't crack, sag, or settle in high-temperature service
Stands up to vibration, footfalls, and tool strikes
Tough enough for reuse after removal and inspection
Hydrophobic and breathable, Aerogel resists liquid water and avoids the damaging effects of wet insulation
Versatile format can be fitted to any piece of piping or equipment, greatly simplifying material management
Higher packing density reduces shipping and storage costs by up to 90%
APPLICATION
Construction: Interior and extrior wall, door, floor, ceiling, roof, partitions, fireproof door
Cold Storage: fridge, freezer, refrigerators, cold storage, medical incubator, blood bank, medicine box, refrigerated container.
Veicle: Engine heat shield, catalytic exhaust pipe
Aerospace: Engine, black box
Building materials industry furnace: All types industry kiln, including rotary kiln, shuttle kiln, roasted kiln
Metallurgy: torpedo tank, steel ladle, tundish, coke oven door
Machinery: industrial stove, electric stove, stove door, stove cover
Instrumentation: stove temperature tracker, heat accumulator, data record protection, electric ceramic stove.
Petrochemical: pipeline insulation, high temperature reactor, cracking stove, conversion stove, heating stove
Electricity: boiler, steam turbine, pipeline, electronic insulation part
