| Working Temperature: | From -200℃ To +1000 ℃ | Warranty: | 3 Years |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Application: | Apartment, Office Building, Warehouse |
| Raw Material: | Nano Silica Aerogel | Color: | White And Maroon |
| Highlight: | pipe insulation blankets,silica aerogel blanket |
||

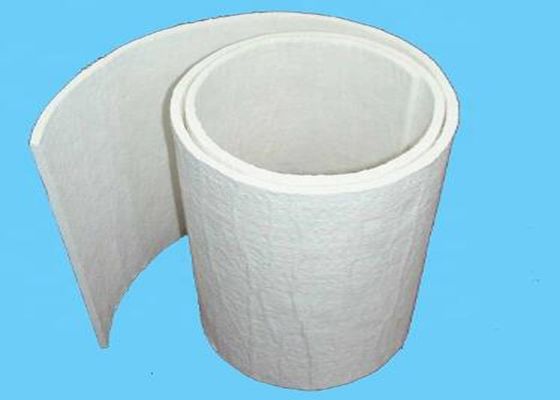

Optimized thermal conductivity Hydrophobic Aerogel Insulation Blanket
1. Aerogel Insulation Blanket DESCRIPTION
It has chosen the acupuncture fiber as a substrate, and then the aerogel is compounded into the substrate. It has thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
Aerogel insulation blanket is made of organic fiber (such as PET or polyester fiber) as a substrate, through a special process, in the fiber implanted nano-silica aerogel. It has the advantages of low thermal conductivity, low density, good flexibility, high compressive strength and strong hydrophobic performance. At the same time, it has excellent sound insulation performance and can be used in the cryogenic field of -200 ℃.
2. Aerogel Insulation Blanket SPECIFICATION
|
Thickness |
3/5/6/10MM |
|
Roll Length |
36M or as request |
|
Width |
1500MM or as request |
|
Color |
Beige |
|
Use Temperature |
-50~650 C |
|
Dimensional Stability(GB/T8811) |
1% |
|
Reshrinking Temperature(GB/T11835) |
800 C |
|
Compressive Property(GB/T13480) |
@10%,20Kpa |
|
@25%,150Kpa |
|
|
Flame Rating(GB/T8624) |
A |
|
Tensile strength(GB/T17911) |
1000KPa |
|
Thermal conductivity(GB/T 10295) |
25C,0.020W/(M·K) |
| 200C,0.028W/(M·K) | |
| 300C,0.035W/(M·K) | |
| 400C,0.044W/(M·K) | |
| 500C,0.069W/(M·K) | |
| 650C,0.095W/(M·K) |
If you have any questions or demands, kindly contact our professional team, we will give you the best solution according to your machine, operation temperature, and our rich production experience.
3. Aerogel Insulation Blanket ADVANTAGES
A. Optimized thermal conductivity in high-temperature service
B. Faster application, especially on large-bore piping and vessels
C. Addresses tight, hard-to-insulate spaces with outstanding thermal efficiency
D. Flexible blanket material won't crack, sag, or settle in high-temperature service
E. Stands up to vibration, footfalls, and tool strikes
F. Tough enough for reuse after removal and inspection
G. Hydrophobic and breathable, Aerogel resists liquid water and avoids the damaging effects of wet insulation
H. The versatile format can be fitted to any piece of piping or equipment, greatly simplifying material management
I. Higher packing density reduces shipping and storage costs by up to 90%
4. Aerogel Insulation Blanket APPLICATION
(1)Pipe insulation
(2) Equipment insulation
(3) Tank thermal insulation
(4) Vehicle insulation
(5) The high-end building, roof, and floor heating insulation
(6) Chemical, biological pharmaceuticals pipeline insulation
5. Aerogel Insulation Blanket FEATURE
It has thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
6. Aerogel Insulation Blanket Package

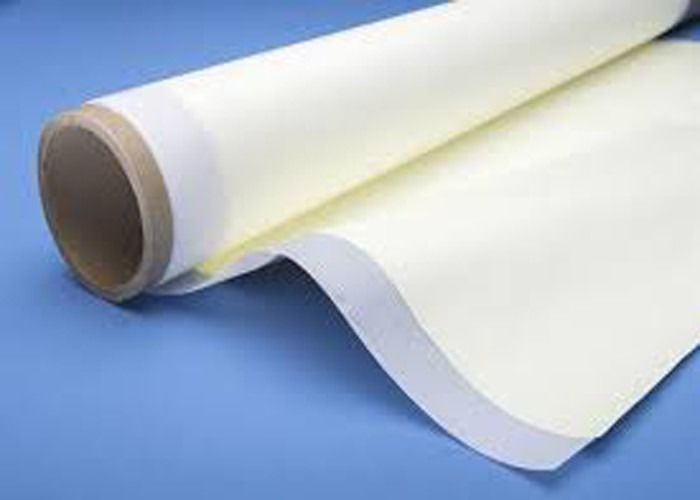

Our aerogel insulation blanket generally packed in roll, packing details as the photo:
