|Product Name:||7.15mm Spiral Loop Width Blue Polyester Spiral Press Filter Belt For Dewatering||Spiral Loop Width:||7.15mm|
|Material:||Polyester||Air Permeability:||500 CFM At 127/Pa|
7.15mm width polyester filter belt,
dewatering polyester filter belt,
dewatering polyester spiral belt
7.15mm Spiral Loop Width Blue Polyester Spiral Press Filter Belt For Dewatering
Description of Polyester Spiral Press Filter Belt

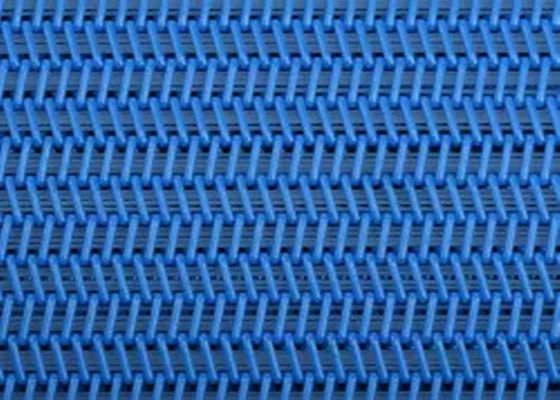

A polyester spiral press filter belt is also a monofilament polyester mesh but not like a woven fabric, instead this is a polyester mesh with spirally twisted wires where pins hold the spirals together like a chain. Most of the polyester spiral mesh is used within the dewatering industry to separate sludge from water within the filter belt press.
Technical parameters of Polyester Spiral Press Filter Belt
|name||7.15mm Spiral Loop Width Blue Polyester Spiral Press Filter Belt For Dewatering|
|keyword||2.45mm thickness Polyester Spiral Press Filter Belt|
|material||100% polyester monofilament|
|color||blue, red, green, white, black, etc.|
|spiral loop width||7.15mm|
|air permeability||500 CFM at 127/Pa|
|filler material monofilament||flat yarn 2.4*0.88mm|
|application||Manufacturing Plant, Printing and dyeing, chemical industry, coal washing, mining, solid-liquid separation industries.|
|features||1. Polyester Spiral Press Filter Belt is made of high-quality polyester fiber and passed the heat setting process. After heat setting, the spiral dryer fabric can work stable under high tension. Polyester Spiral Press Filter Belt offers high strength, high resistance against abrasion, durability, smoothness, and good dirt release. The width of the Polyester Spiral Mesh Belt for filter press is up to 6 linear meters and the belts can work under PH range 2 to 8.
2. Polyester Spiral Press-filter Fabric belt is made of polyester spiral dryer fabric which is filled with stuff to reduce the air permeability and intensive the opening, hence reducing the material loss from the mesh opening.
HUATAO LOVER LTD was born in 2001, always with the philosophy of "Respect the Divine and Love People, striving for perfection" as the main line of development, and continuously involved in different industries. After more than ten years of development into a group enterprise, and make able to supply more products for the requirements of different industries. As the partner of many factories to OEM orders of paper machine clothing, paper machine parts, corrugator parts, paper pulp machine parts, belt filter cloth, etc.
Q1: What payment terms do we accept?
A: Western Union, L/C, T/T, Paypal, etc.
Q2: How long is your delivery time?
A: Generally it is 15 days if the normal size. If it is customized or big size, it may need 25 days.
Q3: What is the mode of goods transportation?
A: If clients don't need the products urgently, we normally use road transportation, rail transportation, and maritime transportation according to the client's cost budget. If clients need the products urgently, we normally choose express or air transportation for the fast delivery.
Q4: Do you provide samples? is it free or extra?
A: Yes, we could offer a small piece(A4 size) sample for free charge but do not afford the cost of freight.
Q5: How to confirm the type?
A: There are two methods for us to confirm the type:
1). You can tell us the specifications data.
2). Provide us with your sample.
Our engineer will do the test according to your data or samples, then recommend the suitable type to you.
