430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production

430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production
430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production 430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production

Large Image :  430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production

Product Details:
Place of Origin: China
Brand Name: HUATAO
Certification: ISO 9001
Model Number: HT-Antistatic Process Belt
Payment & Shipping Terms:
Minimum Order Quantity: 50 square meters
Price: US $25-30 per square meter
Packaging Details: woven bag or wooden box
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 square meters per month
Detailed Product Description
Product Name: 430CFM Blue Antistatic Synthetic Process Belt For The MDF Board Production Thickness: 1.95mm
Color: Red, Blue, White, Etc. Warp Diameter: 0.65mm
Weft Diameter: 0.80mm Joint Tensile Strength: 900N/cm
Surface Tensile Strength: 2000N/cm Air Permeability: 430 CFM Under 127Pa
High Light:

430 cfm polyester mesh belt

,

mdf board production polyester mesh belt

430CFM Blue Antistatic Synthetic Process Belt for the MDF Board Production





Description of Antistatic Synthetic Process Belt



Under certain conditions of temperature and humidity, the equipment using a polyester mesh belt will produce high friction electrostatic when it runs at a high speed. Although the static current is usually of low intensity, it can be the cause of problems like when light pieces of product stay adhered to the surface of the belt which reduces the efficiency and product quality, or combustion risk in environments sensitive to deflagration.

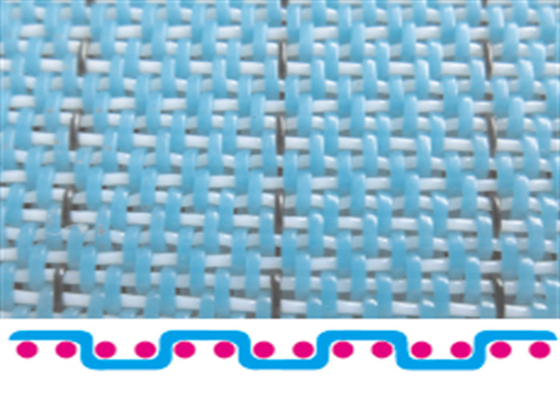

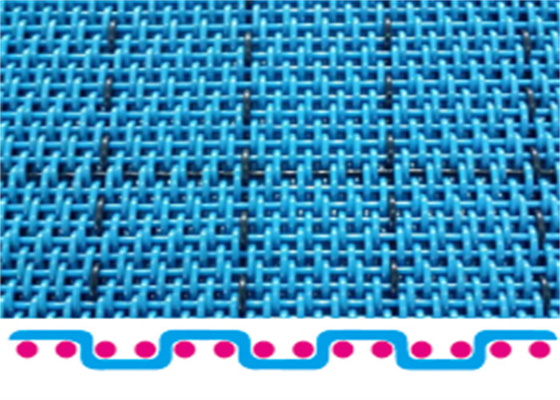

In order to solve these potential hazards, the antistatic mesh conductive belts drive and dissipate surface static electricity accumulate during operation. The antistatic mesh conductive belts are woven from polyester monofilament and carbon or copper wire with good conductivity. There is a conductive fiber through the polyester anti-static fabrics which can release the friction electrostatic, thus play a role in anti-static.





Technical Parameters of Antistatic Synthetic Process Belt



name 430CFM Blue Antistatic Synthetic Process Belt for the MDF Board Production
thickness 1.95mm
material Antistatic monofilament material, carbon wire, or bronze wire
warp diameter 0.65mm
weft diameter 0.80mm
joint tensile strength 900N/cm
surface tensile strength 2000N/cm
color red, blue, white, etc.
features 1. High-temperature resistance, not easy to corrosion, high stability, not easy to deformation under high temperature.
2. Different sizes: different sizes for different users, it is easy to suit all kinds of uses.
3. Strict quality control system: strict ICQ test and production process without wire breakage phenomenon.
4.Net curtain surface is clean and smooth, product forming perfect, pulp easy to peel off.
application Anti-static filter belt is widely used in various aspects including pulping drying, chemical fiber industry, high-density board, sludge dehydration, conveyor belt, environmental protection, vacuum filtration, rubber, and chemical industry, etc.





Our Company



HUATAO LOVER LTD was born in 2001, always with the philosophy of "Respect the Divine and Love People, striving for perfection" as the main line of development, and continuously involved in different industries. After more than ten years of development into a group enterprise, and make able to supply more products for the requirements of different industries. As the partner of many factories to OEM orders of paper machine clothing, paper machine parts, corrugator parts, paper pulp machine parts, belt filter cloth, etc.





Our Clients



430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production 0

430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production 1

430 Cfm Polyester Mesh Belt Anti Static Synthetic Process For Mdf Board Production 2





FAQ



Q1: What payment terms do we accept?
A: Western Union, L/C, T/T, Paypal, etc.



Q2: How long is your delivery time?

A: Generally it is 15 days if the normal size. If it is customized or big size, it may need 25 days.



Q3: What is the mode of goods transportation?

A: If clients don't need the products urgently, we normally use road transportation, rail transportation, and maritime transportation according to the client's cost budget. If clients need the products urgently, we normally choose express or air transportation for the fast delivery.



Q4: Do you provide samples? is it free or extra?

A: Yes, we could offer a small piece(A4 size) sample for free charge but do not afford the cost of freight.



Q5: How to confirm the type?

A: There are two methods for us to confirm the type:

1). You can tell us the specifications data.
2). Provide us with your sample.



Our engineer will do the test according to your data or samples, then recommend the suitable type to you.
