1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns

1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns
1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns 1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns

Large Image :  1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns

Product Details:
Place of Origin: China
Brand Name: HUATAO
Model Number: HT-TLW-01
Payment & Shipping Terms:
Minimum Order Quantity: 100m2
Price: US $45 per square meter
Packaging Details: wooden box
Delivery Time: 35-40 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Polyester Weight: 1.2kg/m2
Thickness: 1.95mm Air Permeability: 1600m3/m2h
Filtration Accuracy: 50-80um Name: Polyester Mesh Belt
High Light:

high air permeability polyester mesh belt

,

80microns polyester mesh belt

1600 Air Permeability Polyester Desulfurization Mesh Belt For Phosphoric Acid Production





Product Description



Desulfurization mesh fabric made from mixed polyester monofilaments and multifilaments also performs excellently in areas of flue gas desulfurization and filtration such as sludge dewatering. Desulfurization mesh fabric is also called a vacuum filter belt as it matches a wide range of vacuum filtration machines.





Technical Parameters



Type Filament Diameter Density Root/cm Tensile Strength    N/cm

Weight

Kg/m2


Thickness  mm

Air Permeability    m3/m2h

Filtration accuracy      um

warp  weft warp  weft surface  joint
HT27508 50*32 6x0.18+0.50 28.5 25 2200 1000     1.2    1.95             1600 50-80
HT27508-1 50*32 600D+0.50 28.5 21 2200 1000     0.9     1.9              720 20-50
HT27508-2 50*32 Polyester filament plied 28.5 23.5 2200 1000     1.1     2.1              310 2-10







Application



Mainly used for a series of rubber belt vacuum filters, horizontal vacuum belt filter, drum belt filter, and vertical filter press.
Act the solid & liquid separation in the wet desulfurization of the power plant, tailings, metallurgical mining, chemical industry, coal chemical, paper & pulp, steel plant power, and pharmaceutical.

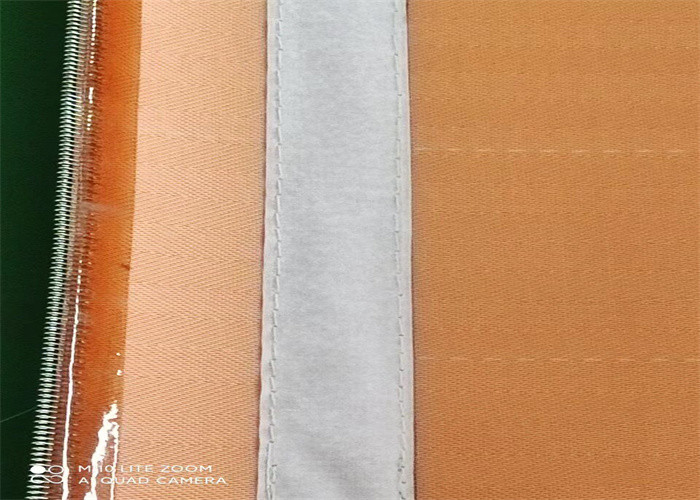

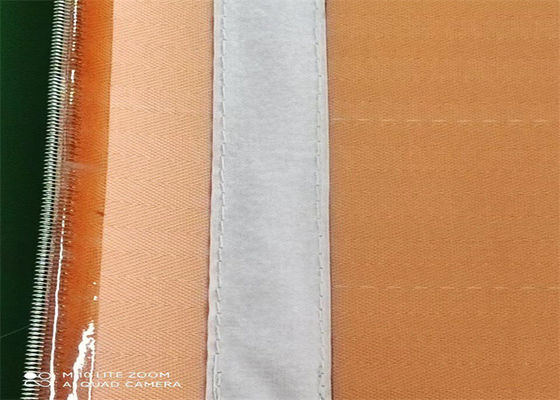

Product Photos



1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns 0

1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns 1

1600 Air Permeability Yellow Polyester Mesh Belt With 80 Microns 2





FAQ



Q1: What payment terms do we accept?
A: Western Union, L/C, T/T, Paypal, etc.



Q2: How long is your delivery time?
A: Generally it is 15 days if the normal size. If it is customized or big size, it may need 25 days.



Q3: What is the mode of goods transportation?
A: If clients don't need the products urgently, we normally use road transportation, rail transportation, and maritime transportation according to the client's cost budget. If clients need the products urgently, we normally choose express or air transportation for the fast delivery.



Q4: Do you provide samples? is it free or extra?
A: Yes, we could offer a small piece(A4 size) sample for free charge but do not afford the cost of freight.



Q5: How to confirm the type?
A: There are two methods for us to confirm the type:



1). You can tell us the specifications data.
2). Provide us with your sample.



Our engineer will do the test according to your data or samples, then recommend the suitable type to you.
