12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining

12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining

Large Image :  12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining

Product Details:
Place of Origin: China
Brand Name: Huatao
Model Number: HT04
Payment & Shipping Terms:
Minimum Order Quantity: 10 pc
Price: USD150-180/pc
Packaging Details: Wooden frame
Delivery Time: 15 days
Payment Terms: L/C,T/T,Western UnionPaypal
Supply Ability: 100000pc per month
Detailed Product Description
Aperture Size: Minimum 3mm
Highlight:

polyurethane screen mesh

,

vibrating screen wire mesh

12.5mm Aperture Heavy Duty Resis Self-Clean Mesh Tension Screen
Product Specifications
Item Self cleaning screen
Dimension As requirement
Aperture Minimum 3mm
Material Steel and polyurethane
Wire diameter Minimum 1mm
Screen Types
Progress Harp Type K
This type of screens is made of round wavy wires, curved in the horizontal working plain. Angle between the arms equals 90°. Working size of W opening is created by diameter of the circle written into this opening. Wires placed one next to another create openings similar to a square. Working wires are buckled together with transversive wires using polyurethane, rubber or wires inside plastic cover.
  • Opening sizes: 1.5 - 35 mm
  • Ø Wire: 0.8 - 6.3 mm
Progress Harp Type T
They are produced with wires of round diameter - straight and wavy placed alternately on the horizontal working surface. Wave spread span equals 90° or 60°. Working size of W opening is created by the diameter of the circle written into this opening. Straight, round wires have a slightly larger diameter then wavy ones. This series of screens characterizes with high ability to withstand heavy loads (owing to very well stretched straight wires) and good self-cleaning effect, obtained by self-oscillation of wavy wires. Wires in this series of screens can be connected with each other using wire knots, polyurethane, rubber or transverse wires inside plastic cover.
  • Opening sizes: 1.2 - 14 mm
  • Ø Wire: 1 - 4 mm

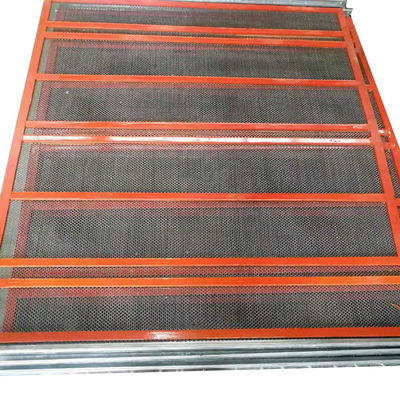

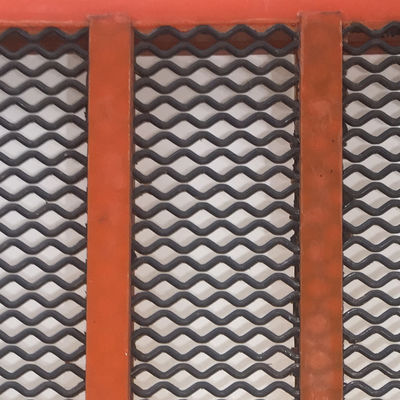

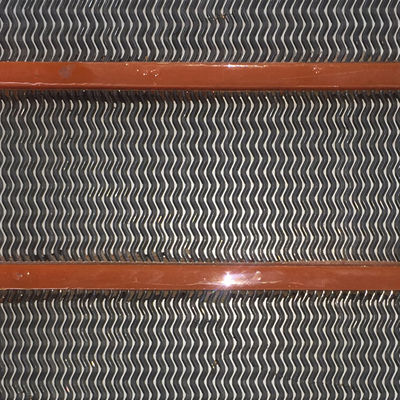

Production Images
12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining 0 12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining 1 12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining 2
Product Features
  • High temperature resisting
  • Acid resisting
  • Alkali resisting
  • Corrosion resisting
Processing Methods
Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.
Applications
Crimped mesh is widely used in mining, petroleum, chemical, construction, mechanical accessories, protective netting, packaging netting, barbecue netting, vibration screen, cooking utensils, can also be used for classification of solid materials screening, liquid and slurry filtration, aquaculture, civil and so on.

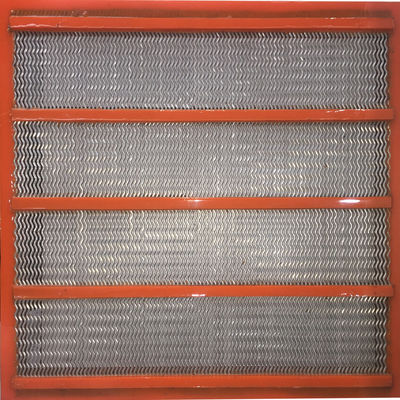

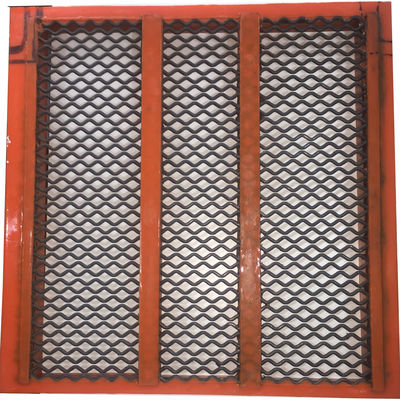

Product Details
12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining 3 12.5mm Aperture Heavy Duty Corrosion Resistant Self-Clean Mesh Tension Screen for Mining 4
Our Services
Strict Quality Control
From raw materials into the factory to the control of the process of production, to the finished product output. We have to pass strict inspection, each square meter to ensure that provide customers with perfect products.
A Lot of Cash Supply
A large number of spot supply, so that in the fastest time of delivery.
Security and Meticulous Packaging
There are three layers of protection: the first layer is a waterproof paper (if it is the high mesh products will add shock membrane to prevent breakage), the second layer is waterproof cloth, the third layer is a waterproof cloth packaging as a whole. Finally use wooden cases packaged as a whole.
Round-the-Clock Service
Welcome your consultation, can by phone, email, instant messaging tools to contact us; I'm very glad to answer questions for you.
