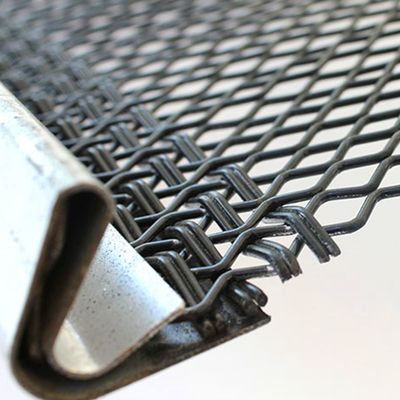

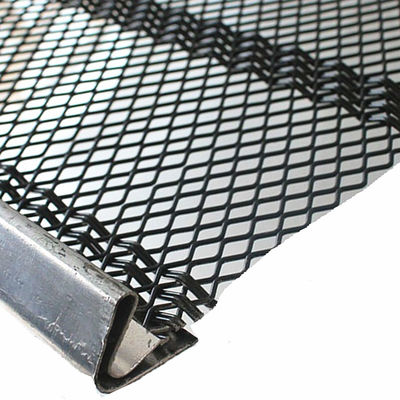

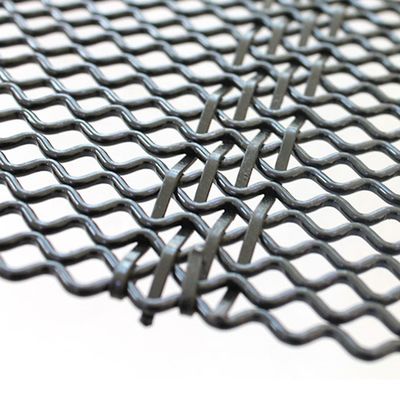

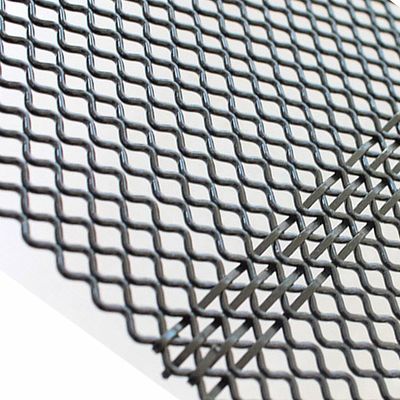

Flex Anti-clogging Self Cleaning Vibrating Screen Mesh With Hooks for Mine and Quarry

High quality Flex Anti-clogging Self Cleaning Vibrating Screen Steel Mesh designed for optimal performance in demanding industrial applications.

This screen type features round wavy wires curved in the horizontal working plane with a 90° angle between arms. The working size (W opening) is determined by the diameter of the circle inscribed within the opening, creating square-like openings.

• Working wires are buckled together with transverse wires using polyurethane, rubber, or wires inside plastic cover
• Opening sizes: 1.5 - 35 mm
• Wire diameter: 0.8 - 6.3 mm

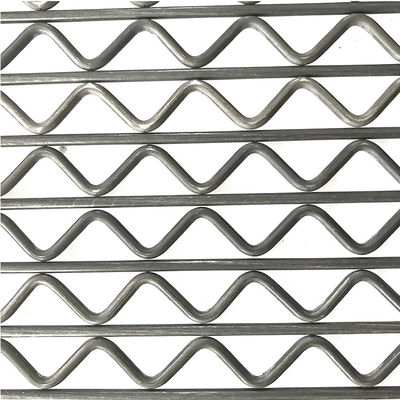

Manufactured with alternating straight and wavy round diameter wires on the horizontal working surface, featuring wave spread spans of 90° or 60°. Straight wires have slightly larger diameters than wavy wires for enhanced load capacity.

• Excellent load-bearing capacity due to well-stretched straight wires
• Superior self-cleaning effect through self-oscillation of wavy wires
• Wire connections via wire knots, polyurethane, rubber, or transverse wires inside plastic cover
• Opening sizes: 1.2 - 14 mm
• Wire diameter: 1 - 4 mm
