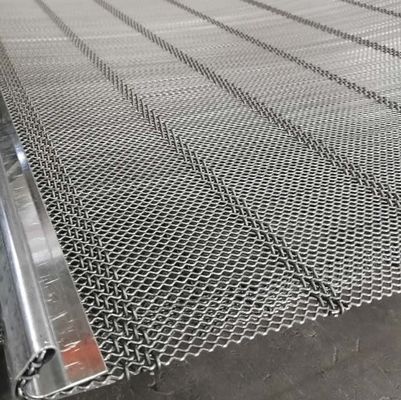

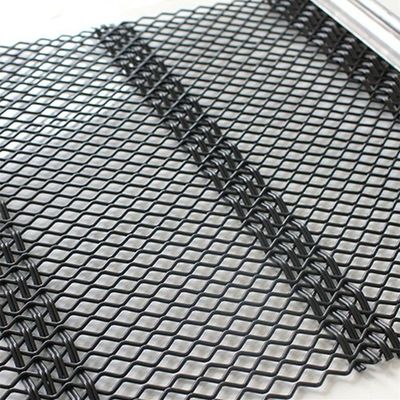

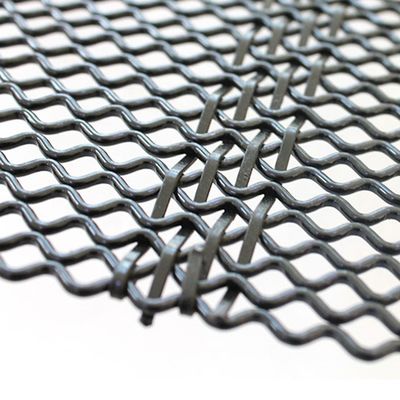

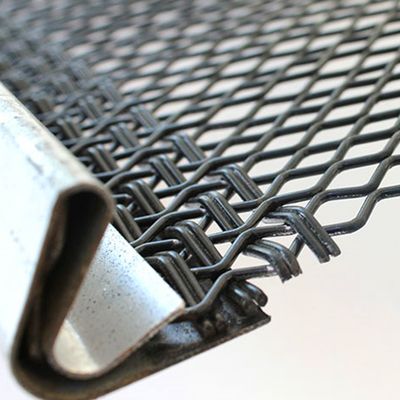

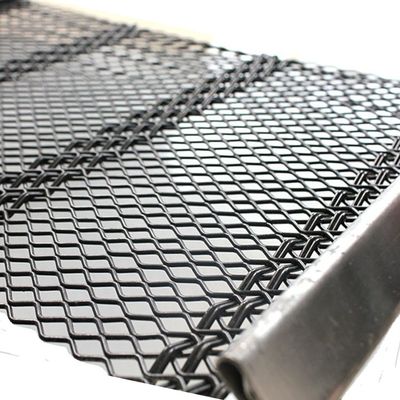

Heavy Duty Self-Clean Mesh with Polyurethane and Steel Material for Sand and Gravel Industry

• High performance and excellent self-cleaning capability
• Long wear-life with 3 times longer wear life than woven wire
• More opening area with 30% more capacity than woven wire
• Eliminates blinding and plugging issues
• Minimizes downtime for cleaning and unclogging
• Maximizes throughput efficiency

This type of screens is made of round wavy wires, curved in the horizontal working plain. Angle between the arms equals 90°. Working size of W opening is created by diameter of the circle written into this opening. Wires placed one next to another create openings similar to a square. Working wires are buckled together with transversive wires using polyurethane, rubber or wires inside plastic cover.

Opening sizes: 1.5 - 35 mm

Ø Wire: 0.8 - 6.3 mm

They are produced with wires of round diameter - straight and wavy placed alternately on the horizontal working surface. Wave spread span equals 90° or 60°. Working size of W opening is created by the diameter of the circle written into this opening. Straight, round wires have a slightly larger diameter then wavy ones. This series of screens characterizes with high ability to withstand heavy loads (owing to very well stretched straight wires) and good self-cleaning effect, obtained by self-oscillation of wavy wires. Wires in this series of screens can be connected with each other using wire knots, polyurethane, rubber or transverse wires inside plastic cover.

Opening sizes: 1.2 - 14 mm

Ø Wire: 1 - 4 mm

The D mesh is designed with precisely crimped wires and woven into diamond shaped openings. D mesh type has more effective open area, because there isn't the straight wire, which is existing in the W mesh.

The H mesh of self cleaning screen mesh is made of several horizontal and parallel crimped wires. It looks like the herringbone pattern, which can offer better sizing control than D mesh and W mesh by eliminating more flats and elongates.

W mesh is specifically engineered and designed to reduce blinding and plugging conditions when the use of conventional square opening wire cloth is not acceptable. The W mesh screen accurately controls material sizing, both undersized, similar sized and oversized materials, while staying clean and remaining efficient.
