Steel Material Harp Screen with Self Cleaning Feature and Minimum 3mm Aperture for Mining and Quarry

Steel Material Harp Screen with Self Cleaning Feature and Minimum 3mm Aperture for Mining and Quarry

Large Image :  Steel Material Harp Screen with Self Cleaning Feature and Minimum 3mm Aperture for Mining and Quarry

Product Details:
Place of Origin: China
Brand Name: Huatao
Model Number: HT04
Payment & Shipping Terms:
Minimum Order Quantity: 10 pc
Price: USD150-180/pc
Packaging Details: Wooden frame
Delivery Time: 15 days
Payment Terms: L/C,T/T,Western UnionPaypal
Supply Ability: 100000pc per month
Detailed Product Description
Material: Steel And Polyurethane
Highlight:

vibrating screen wire mesh

,

pu screen mesh

Mining And Quarry Screening Steel Material Harp Screen Self Cleaning Wire Screen
High-performance self-cleaning wire screens designed for mining and quarry screening applications. These durable screens feature innovative harp-type designs for optimal screening efficiency and minimal maintenance.

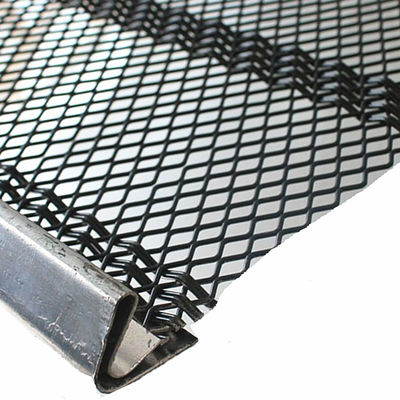

Mining and quarry harp screen product overview Close-up view of harp screen construction Harp screen installation and application
Specification
Item Self cleaning screen
Dimension As requirement
Aperture Minimum 3mm
Material Steel and polyurethane
Wire diameter Minimum 1mm
Progress Harp Type K

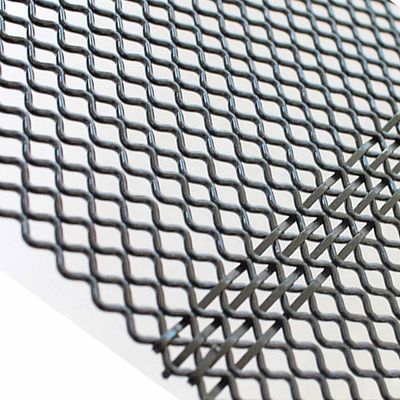

This type of screens is made of round wavy wires, curved in the horizontal working plane. Angle between the arms equals 90°. Working size of W opening is created by diameter of the circle written into this opening. Wires placed one next to another create openings similar to a square. Working wires are buckled together with transversive wires using polyurethane, rubber or wires inside plastic cover.
  • Opening sizes: 1.5 - 35 mm
  • Wire diameter: 0.8 - 6.3 mm

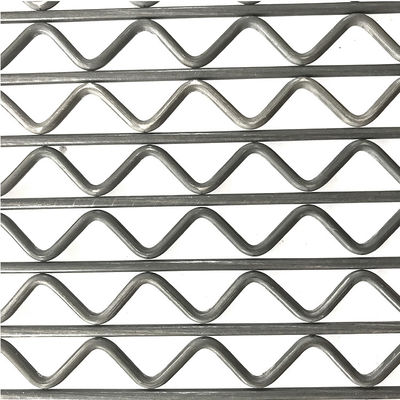

Progress Harp Type T
Produced with wires of round diameter - straight and wavy placed alternately on the horizontal working surface. Wave spread span equals 90° or 60°. Working size of W opening is created by the diameter of the circle written into this opening. Straight, round wires have a slightly larger diameter than wavy ones. This series of screens characterizes with high ability to withstand heavy loads (owing to very well stretched straight wires) and good self-cleaning effect, obtained by self-oscillation of wavy wires. Wires can be connected with each other using wire knots, polyurethane, rubber or transverse wires inside plastic cover.
  • Opening sizes: 1.2 - 14 mm
  • Wire diameter: 1 - 4 mm
Detailed Images

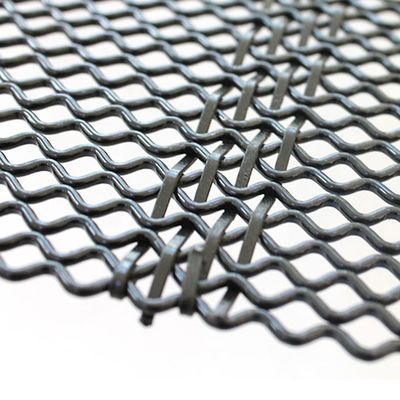

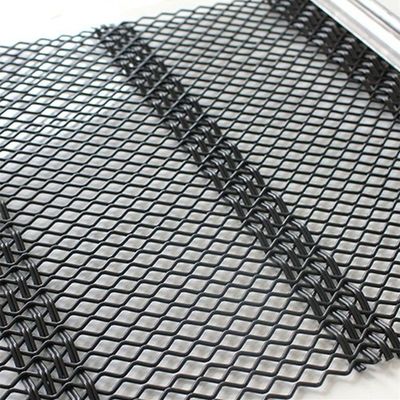

Detailed view of harp screen construction and materials Technical details of self-cleaning wire screen
Frequently Asked Questions
Q: What is the delivery time?
A: It is according to your quantity, normally 7 to 10 days.
Q: What is the advantages compared to other suppliers?
A: The unique full automatic roller production line, high machining accuracy, uniform and stable quality, which can realize continuous and efficient professional production, so we can provide good quality product and service to our customers.
Q: Can we visit your company?
A: No problem, we are look forward to your arrival and we will lead you to visit our factory.
Q: What's your trade term?
A: EXW, FOB, CIF, CFR etc can be available.
Q: Can I ask for samples for test purpose?
A: Yes, it is welcomed. And according to our company policy, the sample fee & shipping cost need to be paid by your end, but we can refund the sample fee upon receipt of your trial order.
Q: Can I OEM my screens?
A: Yes, OEM material, size, color, package etc can be acceptable.
Q: Can I order 1 piece?
A: Yes, as our MOQ is 1 piece.
