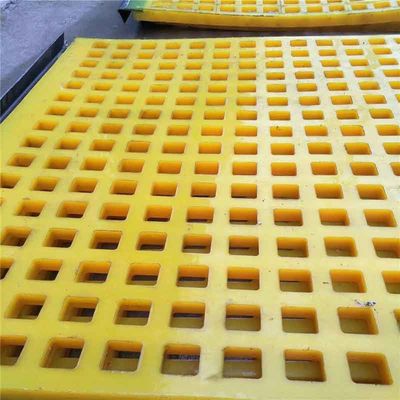

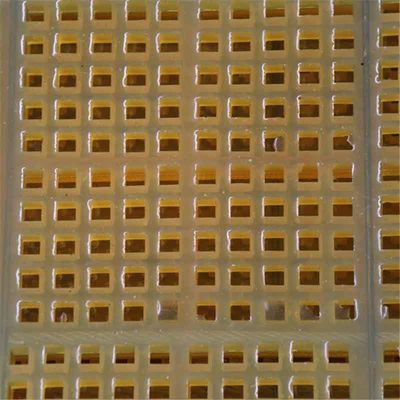

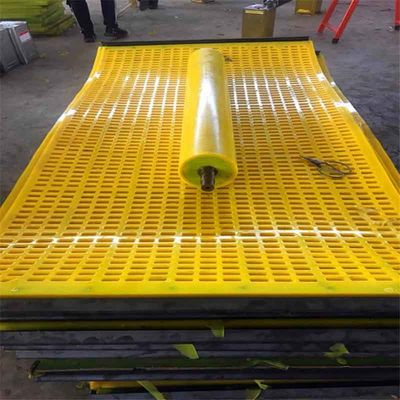

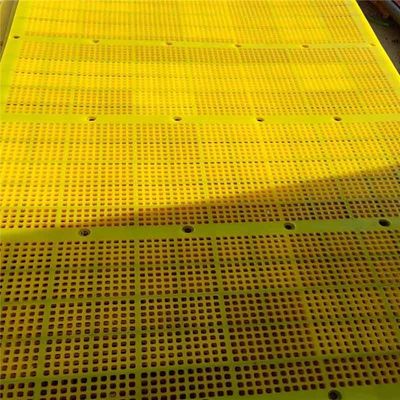

Wear-Resistant Polyurethane Screen Panels with Self-Cleaning Apertures and High Tensile Strength Steel Frame

Large Image : Wear-Resistant Polyurethane Screen Panels with Self-Cleaning Apertures and High Tensile Strength Steel Frame

Product Details:

Place of Origin:	CHINA
Brand Name:	HT
Model Number:	HT024

Payment & Shipping Terms:

Minimum Order Quantity:	5PCS
Price:	USD 150 - 300 / PC
Packaging Details:	WOODEN BOX, PALLET
Delivery Time:	AROUND 15DAYS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20PCS/DAY

Contact Now

Detailed Product Description

Material:

Polyurethane And Embedded Steel Frame

Highlight:

polyurethane screen mesh

pu screen mesh

Wear-Resistant Polyurethane Screen Panels For Copper

Modular polyurethane screen mesh is manufactured from specially formulated polyurethane and high tensile embedded steel frame. Combined with wear resistance urethane and high tensile strength steel frame, modular polyurethane screen mesh possesses excellent performance in separating and screening industry.

Similar as polyurethane dewatering screen, modular polyurethane screen also has various connection types, including the bolts connection type, mosaic connection type, press bar connection type and hook connection type. Various connection types can fit different machines and different applications. It is the most versatile and cost effective modular system.

Specifications

Material	Polyurethane material and embedded steel frame
Thickness	30mm - 60mm
Aperture Type	Square, rectangular and round
Aperture Size	5mm - 50mm
Connection Type	Mosaic connection, bolts connection, press bar connection and hook connection

Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise
Long service life and durable

Applications

The modular polyurethane screen mesh can fit various vibrating screens and widely used in various applications.

Steel plants
Mining industry
Cement plants
Mineral beneficiation industry
Power plants
Coal washing
Sand, gravel separating and screening
