8mm Aperture size Polyurethane Coated wire mesh Screen Panel for Aggregate Processing

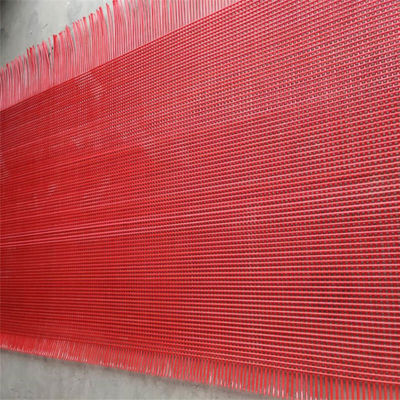

Large Image : 8mm Aperture size Polyurethane Coated wire mesh Screen Panel for Aggregate Processing

Product Details:

Place of Origin:	CHINA
Brand Name:	HT
Model Number:	HT041

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	150-700USD
Packaging Details:	WOODEN BOX
Delivery Time:	7-15DAYS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20PCS / DAY

Contact Now

Detailed Product Description

MATERIAL:	POLYURETHANE COATED STEEL WIRE ROPE	WIRE DIAMETER:	1.0-30MM
APERTURE:	2.5mm Minimum	COLOR:	Any Color
HOOK:	Design According To Your Requests	APPLICATION:	Sieve Aggregate
Highlight:	polyurethane screen mesh , vibrating screen wire mesh

Polyurethane Harp Screens

Product Specifications

Material	Polyurethane Coated Steel Wire Rope
Wire Diameter	1.0-30mm
Aperture	2.5mm minimum
Color	Any color available
Hook	Custom design according to requirements
Application	Sieve Aggregate

Product Description

Our Polyurethane Vibrating Screen Mesh is available in fully welded, partially welded, and rectangular welded variations. The brightly colored material offers superior performance with these key benefits:

Lightweight and smooth surface for easier handling during delivery, storage, installation, and removal
Extended wear life compared to higher tensile woven wire
Lasts over twice as long as traditional woven wire mesh

The unique performance characteristics stem from the combination of polyurethane/wire construction and the fully/partially welded features. The aperture shapes mirror woven wire with square or rectangular options.

Additional operational advantages include:

Significantly reduced noise levels compared to wire screens
Minimized pegging and blinding, especially with partially welded screens
Secondary vibration effects and smooth polyurethane finish prevent material buildup

The Tufflex screen system offers an aperture range from 1.5mm to 45mm, with wire rope diameters from 1.5mm to 12mm. Custom rectangular slots can be manufactured as fine as 0.7mm wide.
