| Type: | Gluing Machine | Quality: | Excellent |
|---|---|---|---|
| Delivery Time: | Within 7 Days | Material: | STEEL |
| Shipment Term: | By VESSEL /AIR | Design Speed M/min: | 100-300 |
| Multy Ply Board: | 3/5/7 Ply | Payment Term: | L/C,T/T |
| High Light: | corrugated carton making machine,corrugated cardboard making machine |
||

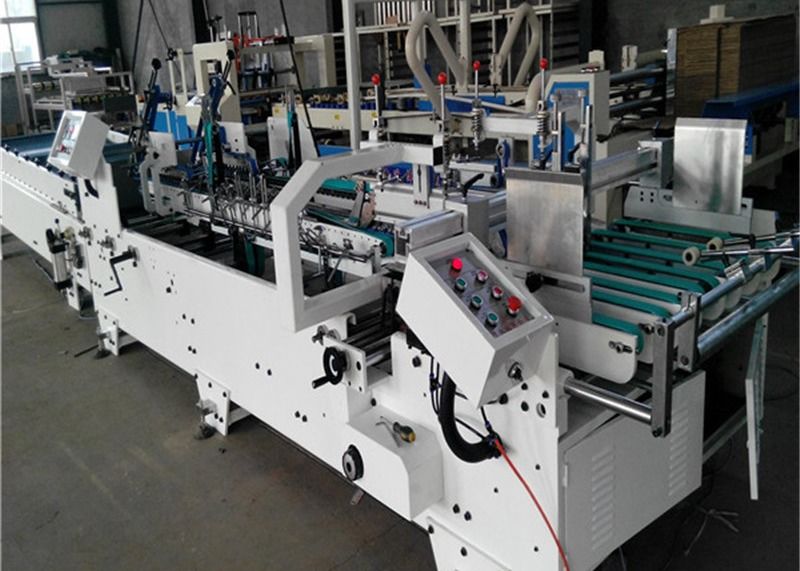

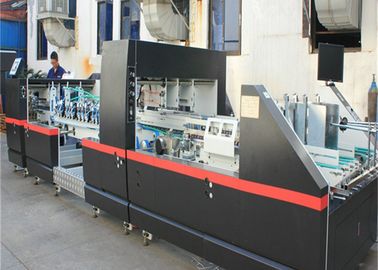

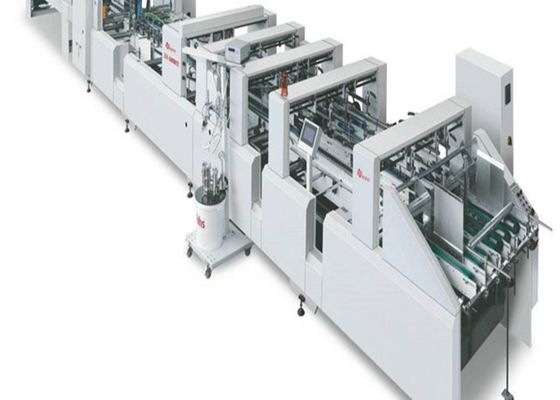

Auto Corrugated Box Carton Folder Gluer Machine
Full-automatic folder gluer machine, by feeding department, gelatinize folding department and count accumulation of three parts, digital display speed, microcomputer attenuation is simple and convenient, quick and reliable precise control mode, automatic feeding, automatic glue fold, automatic counting, automatic Stacker output, average sticky box speed 150 pcs/min, highest speed 180 pcs/min, high efficient energy-saving environmental protection is our supreme pursuit.
This machine can achieve whole computer adjustment for gluer unit, feeding unit and folder unit, just enter three data on the touch screen (Length, width, height size), the machine can automatic adjustment to exact position.
This machine was also setting the single computer NC adjustment, it can adjustment for any single position, at the same time, It was also setting the adjustment button, which can meet any different operation habit.
Folder Gluer Machine Technology Parameters
| Model | HT-2600 | HT-2800 | HT-3000 |
| Max cardboard size | 1200×2400 | 1200×2600 | 1200×2800 |
| Min cardboard size | 170*450 | 170*450 | 170*450 |
| Dimension | L12500×W3000×H1600 | L12500*W3200*H1600 | L12500*W3400*H1600 |
| Motor power | 10kw | 12kw | 12kw |
| Machine weight | 5500kg | 6500kg | 7500kg |
| Application board thickness | 3layer or 5layer | ||
1.Vacuum suction feeding to feed warping paperboard easily.
2.Quality electromagnetic clutch and brake adopted, feeding section is controlled independent, operation easily.
3.Scorer wheel adjustable, suit for 2-8mm thick paperboard.
4.Second creasing striations can impress again the paperboard which was not creased well.
5. Feeding unit used the printing machine model gear transmission, more steady than tradition model chain wheel and chain transmission, Less noise, feeding high precision.
1. Simple structure and high reliability, glue quantity adjustable, cleaning easily.
2. Stainless steel glue wheel adopted, long life and saving glue cost.
3. Improved quality rubber belt adopted, automatic folding.
4. with paperboard rectify device and creasing rectify device.
5. The Folder belts adopt Germany's force and Switzerland brand
1. Stacking and counting are simple and reliable.
2. Digital control, operation easily and reliable, No-stop put in data and automatic counting.
3. With rectification function.
4. Paperboard counting and put out by pneumatic, stable and quickly.
Adopts special assembly line, after the object is conveyed to the cross steering device, the jacking rotates 90 degrees, finally drops, continues to convey.
Electrical parts
1. All the electrical parts adopt Siemens Germany,
2. Control data adjustment by PLC programme, enter the carton box size into the touch screen, save time.
Feature:
1) This machine is easy for operation and maintance.
2) It is equipped with good parts: Taiwan Motor, Schneider Transduder/PLC/Touch screen, Japanese Belts, Japanese Bearing etc. to guarantee the machine woking base on a good condition.
3) Schneider PLC system and touch screen for easy operation.
4) Feeding is controlled by a separated single motor, the unit designed with induced draft function.Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.
5) Grinder are provided on both side of machine, make gluing stable and firm.
6) Pressing unit equipped with pneumaitc design.
If you need more choice and solution,weclome to contact us any time.
