Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | 3/5/7 Ply | Quality: | Excellent |
|---|---|---|---|
| Delivery Time: | Within 7 Days | Material: | STEEL |
| Shipment Term: | By VESSEL /AIR | Design Speed M/min: | 100-300 |
| Multy Ply Board: | L/C,T/TPaymen | Payment Term: | Printing Shops |
| High Light: | corrugated carton making machine,corrugated cardboard making machine |
||
4 Ply High Speed Corrugated Cardboard Machine
1. Single Facer Technical Parameters
1. Corrugated material 45CrMo, diameter 268, wall thickness 45mm.
2, hard chrome plated surface hardness HRC55-60 °.
3. Motor power: 5.5kw
4. Havalo national standard high-temperature bearing is adopted for bearing.
5. High temperature grease is used for lubrication. Good sealing and reliable.
6. Standard flute: E=1.6 high and UV.
7. External size: 3000 * 1600 * 2600mm.
8. The design speed is 60m/min, and the economic speed is 40m/min.
9. The machine weight is about 3.2t.
Main engine
1.Guide paper, with strong fan air source pump and electrical control concentrated in the same operation control cabinet.
2. Corrugated roller adopts alloy tempering, medium frequency quenching, surface polishing and hard chrome plating.
3. The pressure roller adopts surface grinding and hard chrome plating, and the cylinder controls the movement up and down.
4, on the surface of the cots dot processing hard chrome plating, automatic gluing, circulating gluing.
5, scraping roller grinding hard chrome plating.
6, corrugated roll pressure roll all with chengdu special steel.
7. Adopt speed regulating motor.
3. Single Facer Equipments List
| No | Name |
| 1 | RS-E-1400 Electric shaftless mill roll stand |
| 2 | SF320-1400 Vacuum single facer machine |

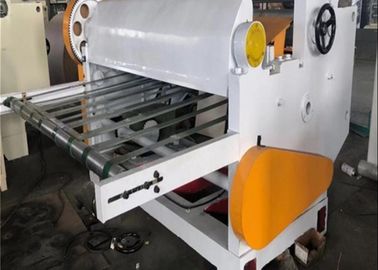

| 3 | YGQ-1400 Heavy type Sheet cutter |

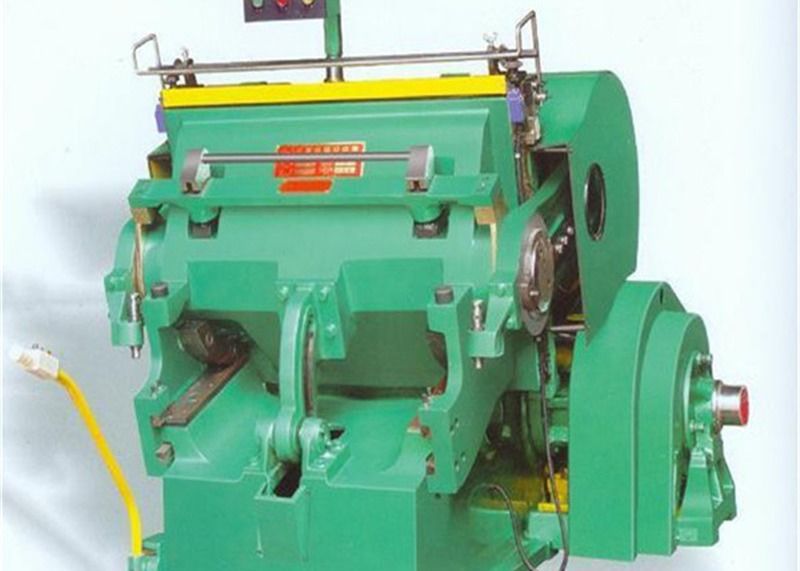

| 4 | Manual Flat Die Cutting Machine ML1200 |

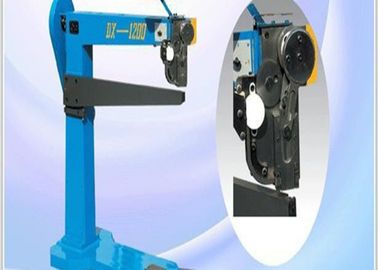

| 5 | DXJ Double Servo Manual Box th,Stitching Machine- 1200 |
| 6 | DXJ Manual Box Stitching Machine-1200 |
| Loading into 1x40'HC container+1x20'GP container ,adjust based on client demand. | |
4. Single Facer Features
1.This machine was top-style vacuum absorption.It can avoid high or low corrugation which can make good quality of corrugated paperboard.
2.It can automatically and reducing offering glue. Pneumatic dealing with corrugated board. Corrugated rollers are cut and polished by special mixture of metal.
3.The whole fears are temperature the hardness readers HRC 55-60.
4. The main axis is lubricated bu high-temperature wed oil. It is sealed up well and can lubricated effectively.
5. The economic speed is 30-40 meters/min.
6. Above machines are equipped double circles for normal user to choose.
5. Single Facer Packing and shipment
1)Inside packaging could be iron frame:it is more firm to avoid shake and damage.
2)Outside packaging could be wooden case: the wooden case is of soft texture could reduce damage from impact
3)There is waterproof wrapped on the product surface before shipment
4)We also accept custom according to your requirement
How about delivery?
According to order quantity, within one month if less than 5 set.
What’s the trade term?
Both FOB and CNF/CFR/CIF is OK.
How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
What’s the guarantee, in case the machine breaks down?
The machine has 3 years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
What’s the payment terms?
30% deposit, 70% balance before delivery by T/T is prefer. Small amount with West Union or Paypal is acceptable.
