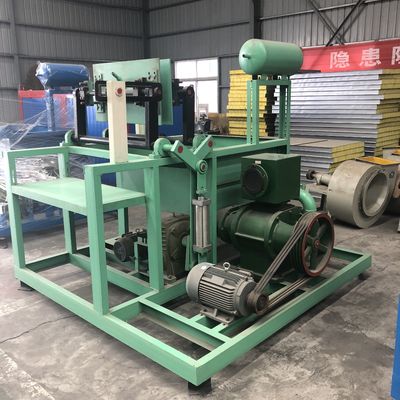

Paper Pulp Molding Machine

Large Image : Paper Pulp Molding Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	CE
Model Number:	HT027

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	exported package
Delivery Time:	15days
Payment Terms:	L/C, T/T
Supply Ability:	20sets/moth

Contact Now

Detailed Product Description

Processing Type::	Pulp Molding Machine	Voltage::	220V/380V
Dimension(LWH)::	2300mm1950mm1600mm	Power(W)::	28kw~50kw
Weight::	2.5ton	Warranty::	1 YEAR, 12 Months
Capacity::	1800-2000pcs/hour	Frequency::	50Hz-60Hz
Highlight:	paper pulp molding machine for packaging , non woven pulp molding equipment , eco-friendly paper pulp molding system

Paper pulp molding machine

Egg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc. Our machine include pulp making system ,forming system and drying system.

Model	Capacity	Mould/pc	Weight/KG	Dimerision (LWH)/mm	Motor/KW	Worker
QS1*3	1000-1400	3	650	2300×2150×1850	2.2	3-4
QS1*4	1500-1800	4	700	2550×2150×1850	3	3-4
QS3*4	1800-2000	12	1350	2850×1750×1600	Speed adjustable-3	4-5
QS4*4	2000-2500	16	1500	3200170016000mm	Speed adjustable-3	4-5
QS4*8-1	3000-3500	32	2100	2600×2250×2300	Speed adjustable-3	3-4
QS4*8-2	4000-5000	32	2200	3000X2200x2300mm	Speed adjustable-3	5-6

1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming
machine exclude the parts of quick-wear. The spare parts will be provided according to the
client requirement.

2.The pre-production:we offer custom-made service to our customers, you need to provide
us some samples,such as photos,dimensions etc.

3.The installing issue:Qisheng will send engineers to customer's place . The customer should help installation, the engineer is responsible for installation, testing and training for 30 days.

Pulping system

The waste paper is pulped in the pulper, and the pulp that has been crushed under the action of hydraulic and friction enters the pulp pool.

Forming system

The process uses negative pressure and vacuum adsorption to convert pulp into egg trays.You can make egg boxes,fruit trays with the egg tray machines by changing moulds.

Drying system

The formed egg tray wet billet is sent to the conveyor belt of the metal oven drying line (temperature 180-250 ° C) to dry.

Packing system

The dried egg trays can be loaded and transport after auomatic stacking and packing.

1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming
machine exclude the parts of quick-wear. The spare parts will be provided according to the
client requirement.
