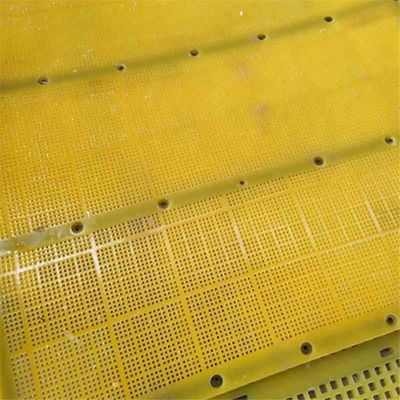

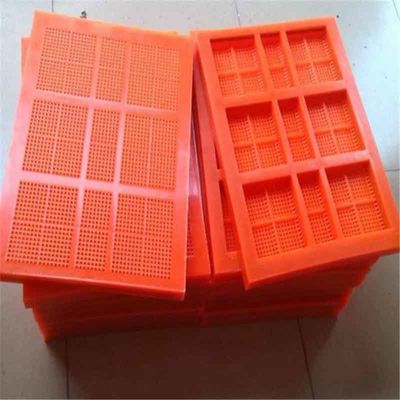

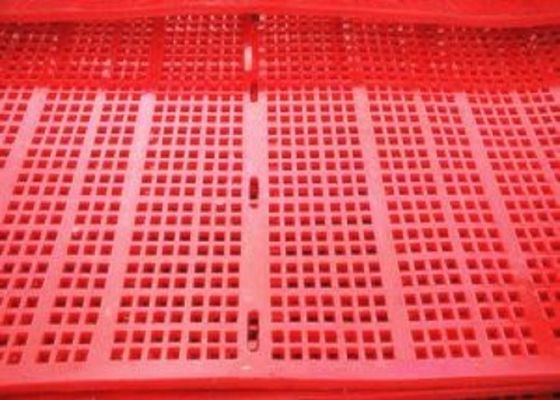

Fine Modular Polyurethane Vibrating Screen Mesh 610x610mm with High Screening Efficiency

Large Image : Fine Modular Polyurethane Vibrating Screen Mesh 610x610mm with High Screening Efficiency

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Model Number:	HT-013

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	USD 35-45 per piece
Packaging Details:	air bubble film + wooden box
Delivery Time:	7 - 10 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000 pieces per month

Contact Now

Detailed Product Description

Material:

Polyurethane

Highlight:

Polyurethane Vibrating Screen Mesh

610x610mm polyurethane screen mesh

610x610mm Vibrating Screen Mesh

Fine Modular Polyurethane 610x610mm Vibrating Screen Mesh

High Wear Resistant Fine Modular Polyurethane Vibrating Screen Mesh

Product Overview

Polyurethane PU screen mesh is fabricated from advanced polyurethane materials with embedded metal framework structure, combining all the characteristics of rubber sieve while offering superior wear resistance, higher screening accuracy, and better tear resistance.

Available Sizes & Specifications

0.054mm	0.063mm	0.068mm
0.074mm	0.10mm	0.12mm
0.15mm	0.18mm	0.20mm
0.22mm	0.25mm	0.30mm
0.35mm	0.43mm	0.50mm
0.70mm	≥1.00mm

Common Panel Sizes: 305×305mm, 300×300mm, 305×610mm
Custom Sizes: Available upon request
Slit Dimensions: Length 4-16mm, Width 0.1-2.5mm
Structural Styles: Setting type, bolt link, press bar coupling, screen hook coupling

Key Features & Benefits

High Screening Efficiency: 2-5 times more efficient than ordinary screens
Large Bearing Capacity: 2.5 times greater than rubber sieves
Long Service Life: 6 months to over 1 year of continuous operation
Excellent Abrasion & Corrosion Resistance: Suitable for water or oil media conditions
Low Maintenance: Non-clogging holes and self-cleaning design
Reduced Noise: Superior vibration-absorbing performance
Optimized Screen Hole Design: Prevents particle blockage
Wide Application Range: Mining, metallurgy, coal, coking, chemical and other industries
Excellent Wet Performance: Effective operation in water-based conditions

Applications

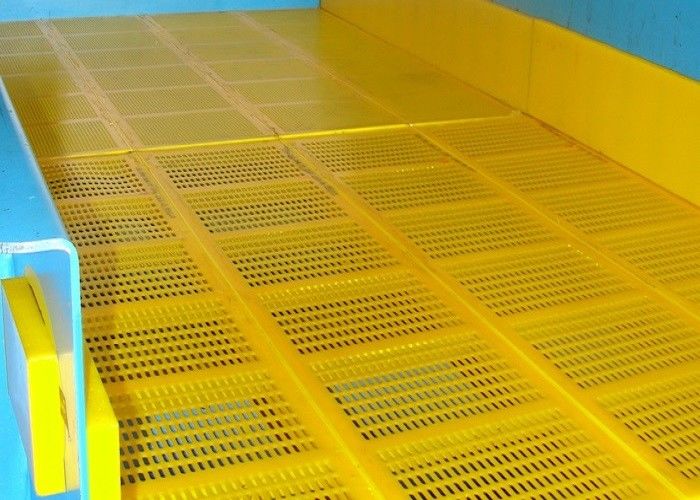

Our polyurethane screens and sieve plates are widely used in metallurgy, mining, coal screening, building materials, water conservancy, construction industry, steel plate punching mesh, wire mesh, and stainless steel plate products. They offer advantages including light weight, high efficiency, non-clogging operation, anti-friction properties, impact resistance, tear resistance, long service life (2-3 times longer than stainless steel plates), low noise, and easy installation.
