Epoxy Resin Glass Fiber 76mm Doctor Blade For Kraft Paper Mill

Epoxy Resin Glass Fiber 76mm Doctor Blade For Kraft Paper Mill
Epoxy Resin Glass Fiber 76mm Doctor Blade For Kraft Paper Mill Epoxy Resin Glass Fiber 76mm Doctor Blade For Kraft Paper Mill

Large Image :  Epoxy Resin Glass Fiber 76mm Doctor Blade For Kraft Paper Mill

Product Details:
Place of Origin: China
Brand Name: HUATAO
Certification: CE,ISO
Model Number: HT-EPO002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard Package
Delivery Time: 15 works day
Payment Terms: D/P, L/C, T/T, Western Union
Supply Ability: One container per month
Detailed Product Description
Material: Epoxy Resin Glass Fiber Width: 76mm,50mm,100mm
Single: 45 Degree Or As Your Demands Usage: For Kraft Paper Mill
Service Life: 3 Months - 9 Months Thickness: 1.5mm 1.9mm 3mm
High Light:

76mm doctor blade

,

Kraft Paper Mill doctor blade

,

doctor blades for paper industry

Epoxy Resin Glass Fiber Doctor Blade For Kraft Paper Mill





1.  Epoxy Resin Glass Fiber Doctor Blade For Kraft Paper Mill Introduction



The epoxy glass fiber scraper is made of high-strength glass fiber, reinforced resin binder and advanced wear-resistant lubricating materials. The working temperature should be equal to or lower than 180°C. In a wide range of applications, the most commonly used glass fiber blades can be developed from metal blades to synthetic blades in many applications. Excellent performance on certain types of presses and dryers.



2. Epoxy-glass Doctor Blade Specification



Material Microfiber and epoxy fiber
Usage suitable for all rolls from mesh fabric to automatic paper-reel,with very good chemical resistance.
Temperature resistance 185ºC
Thickness 5mm, 1.9mm, 3.0mm, 5.0mm
Width 76mm
Bending strength Up to 600 N/mm




3. Epoxy-glass Doctor Blade Application:



Epoxy fiberglass blades are officially called epoxy resin soaked fiberglass. It is suitable for the main applications of all coils from the wire part to the paper roll part. It can effectively prevent the hard rubber roller from being damaged and avoid fire in the dry part.

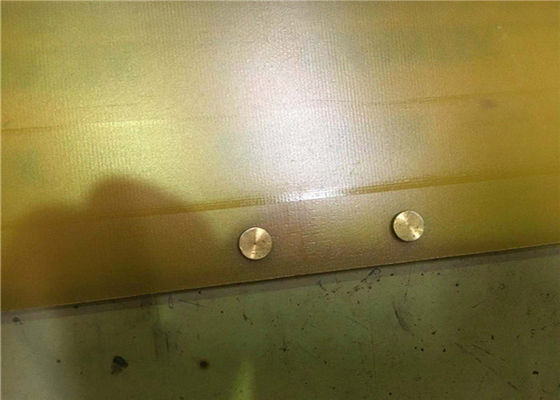

Epoxy Resin Glass Fiber 76mm Doctor Blade For Kraft Paper Mill 0



Epoxy Resin Glass Fiber 76mm Doctor Blade For Kraft Paper Mill 1



FAQ:



Material and hardness are much important to the work life for blades, according to over 10 years experience, Huatao will provide you professional advice and recommend you best material and hardness according to the applications of blades with competitive price.



1. Chilled cast iron rollers cannot use stainless steel blades
2. Chrome-plated rollers cannot use bronze blades
3. Steel rollers cannot use steel sheets
4. Metal blades cannot be used for synthetic rubber rollers
5. Before increasing the pressure of the doctor blade, a new doctor blade must be used.
