Plc Control Automatic 1mm Paper Core Winding Machine 20m/Min

Large Image : Plc Control Automatic 1mm Paper Core Winding Machine 20m/Min

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATAO
Certification:	ISO9001
Model Number:	HT200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 15000/SET
Packaging Details:	Standard export packing
Delivery Time:	30days
Payment Terms:	L/C,T/T

Contact Now

Detailed Product Description

Item:	HT200A Paper Core Winding Machine	Paper Layers:	3-24
Paper Core Thickness:	1mm-18mm	Paper Core Diameter:	20mm-254mm
Paper Core Length:	500mm-5000mm	Max. Machine Speed:	0-20m/min
Highlight:	plc paper core winding machine , 1mm paper core winding machine , paper core winding machine 20m/min

PLC Control Automatic 1mm Paper Core Winding Machine 20m/Min

Product Specifications

Attribute	Value
Item	HT200A Paper Core Winding Machine
Paper Layers	3-24
Paper Core Thickness	1mm-18mm
Paper Core Diameter	20mm-254mm
Paper Core Length	500mm-5000mm
Max. Machine Speed	0-20m/min

Advanced PLC Control Paper Core Winding Machine

HUATAO offers comprehensive production lines for paper tubes and cores, handling diameters from 6mm to 1,250mm with belt speeds up to 120m/min. Our custom-designed systems include:

Flexible unwinding systems from manual to fully automatic with splicing
Precision gluing units with advanced ply spreading technology
Spiral winders with 2 or 4 driving heads
Versatile in-line cutters from semi-automatic to fully automatic multi-knife systems
Integrated palletizing, bundling, and strapping solutions

Industry Applications

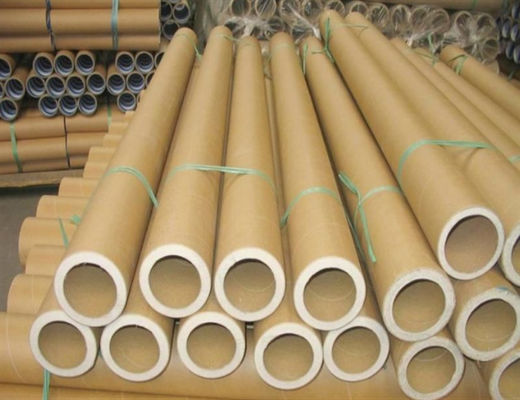

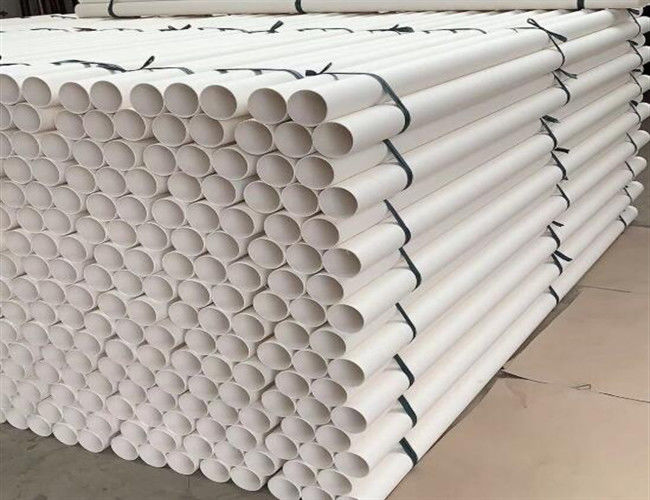

This machine produces various core types for multiple industries:

Spiral cardboard tubes and high-resistance cores
Textile tubes, DTY tubes, and POY tubes
Specialty applications for paper, film, metal, and packaging industries
Pyrotechnics and specialized industrial cores

Key Features and Benefits

Precision Control: Microcomputer-set in-line cutting with touch screen adjustment
Advanced Tension System: Cylinder press with adjustable tension control
Dual Gluing Options: Single or double side gluing with pressure control
Flexible Shaft Design: Accommodates tapered mandrels for fine diameter tuning
Servo Motor Control: Synchronized cutting speed with production
Automated Operation: Delta PLC control with HMI interface for parameter setting
Reliable Performance: Imported frequency inverters and AC motors for stable operation
Smart Diagnostics: Remote troubleshooting capability via machine communication tools
