Abrasion Resistance 25mm Polyurethane Vibrating Screen Mesh

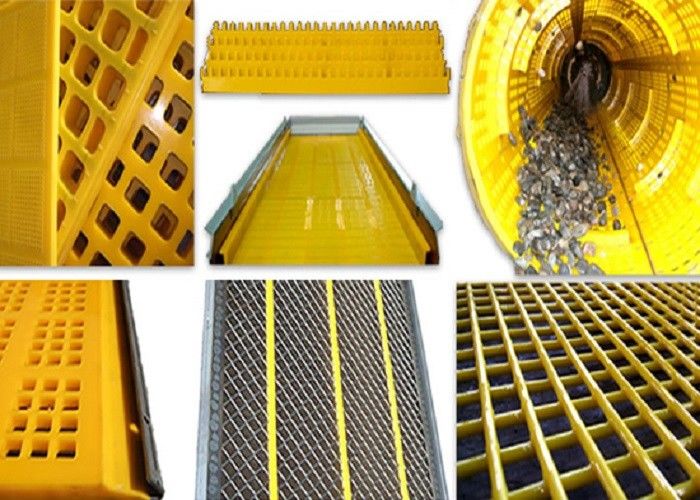

Large Image : Abrasion Resistance 25mm Polyurethane Vibrating Screen Mesh

Product Details:

Place of Origin:	China
Brand Name:	HUATAO
Model Number:	HT-013

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	USD 35-45 per piece
Packaging Details:	air bubble film + wooden box
Delivery Time:	7 - 10 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10000 pieces per month

Contact Now

Detailed Product Description

Material:	Polyurethane	Size:	610mm610mm /305mm305mm
Type:	LINEAR	Feature:	High Screening Efficiency
Usage:	Separation Screening	Function:	Screening\separation\sorting\sieving
Highlight:	polyurethane vibrating screen mesh , vibrating polyurethane screen mesh , 25mm Vibrating Screen Mesh

Abrasion Resistance 25mm Polyurethane Vibrating Screen Mesh

Product Specifications

Material	Polyurethane
Size	610mm610mm /305mm305mm
Type	LINEAR
Feature	High Screening Efficiency
Usage	Separation Screening
Function	Screening/separation/sorting/sieving

Product Description

High Abrasion Resistance Polyurethane Mesh

Tensioned polyurethane mesh is made of polyurethane materials and embedded with steel frame. Tensioned polyurethane screen has special designed fastening hooks which can clamp screens into the separator. The hooks can be transverse tensioning and longitudinal tensioning. Tensioned polyurethane screen is lightweight and easy to install in screening situations where material specifications are frequently changed.

Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial. The various opening sizes ensure high separating and screening efficiency, and the smooth surface and polyurethane materials make the screen much quieter than woven vibrating screen mesh or perforated vibrating screen mesh.

Detailed Specifications

Material: polyurethane material and steel frame
Thickness: 25mm - 60mm
Hole type: square, rectangular, round and other types available
Hole size: 2.5mm - 130mm
Panel width: max. 1.5m
Panel length: max. 3m
Hook type: metal or polyurethane
Hook direction: transverse or longitudinal
Color: red, yellow, blue and custom colors available

Aperture Specifications

Aperture	Screening Thickness	Total Thickness Tension	Total Thickness Modular	Aperture	Screening Thickness	Total Thickness Tension	Total Thickness Modular
2.50	7	25	30	0.20x11	8	30	30
2.80	7	25	30	0.3x16	7	30	30
3.20	7	25	30	0.4x11	8	30	30
4.00	7	25	30	0.5x16	7	30	30
4.50	8	25	30	0.6x11	8	30	30
5.00	9	25	30	0.5x16	7	30	30
5.50	8	25	30	1.0x11	8	25	30
6.20	9	25	30	1.2x11	8	25	30
6.50	9	25	30	1.5x11	8	25	30
7.30	9	25	30	1.5x20	8	25	30
7.50	9	25	30	1.5x25	8	25	30
8.00	9	25	30	2.0x20	8	25	30
9.50	10	25	30	2.5x20	8	25	30
10.00	11	25	30	3.0x20	8	25	30
11.50	12	25	30	4.0x20	12	25	30
12.50	13	25	30	4.5x20	8	25	30
13.00	13	25	30	5.0x20	8	25	30
14.00	13	25	30	6.0x20	12	25	30
15.00	13	25	30	8.0x20	12	25	30

Key Features

Embedded steel frame for high tensile strength
Metallic hooks for easy replacement
Superior wear resistance
Age resistance and long service life
High screening efficiency
Various openings for accurate separating
Lightweight and easy to install/replace
Low noise operation

Applications

Fits all vibrating screens
Can separate and screen materials from coarse stones to fine particles
Ideal for both dry and wet materials

Shipping & Payment

Shipping: Samples by air express, large orders by sea.

Payment terms:

100% irrevocable L/C at sight
30% T/T prepaid and balance against copy of B/L
30% T/T prepaid and balance against L/C

Samples

Samples are available but require payment for sample price and freight fee. The sample fee is returned after order placement. Delivery time is approximately 30 days.
